#1
Used Street Dreams
2" drop spindles. Drop spindles give you the drop, but dont change A-arm
geometry so the suspension works how it should.
(2/6/03)
|
 |
#2

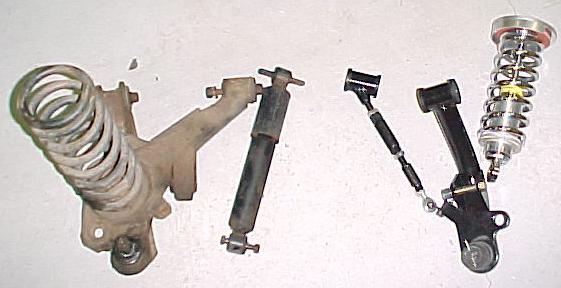

New front RCC coil-overs give you fine tune adjusting of the ride height.
I choose RCC mainly because the install doesnt require welding of the
cross-member. They are Carrera 8CS325 shocks and Carrera 325 lb springs.
(1/11/03)
|
 |
#3
You need to remove the bump stop cone. There are only
five weld spots.
(2/6/03)
|
 |
#4
I had to file a bit off the tongue of the spindle washer so it would
fit in the Street Dreams notch.
(1/19/03)
|
 |
#5

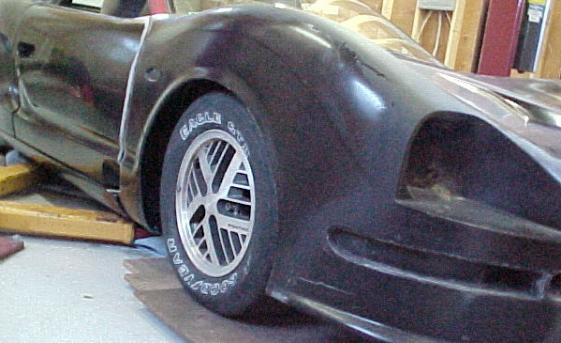

Here is the front suspension all installed.
I found that the 14" stock wheels dont fit on the drop spindles.
(2/6/03)
|
 |
#6

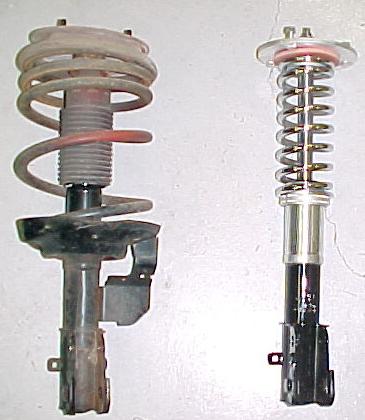

New rear RCC coil-overs bolt right in and lower the car as well as adjust
ride height. They are Gabriel Gas Ryder Premium Gas Struts G55512 and
Carrera 350 lb springs.
(1/12/03)
|
 |
#7
MUCH lower... but the front is still 6" off the ground with
stock 14" wheels. There is still room for an air dam.
(2/9/03)
|

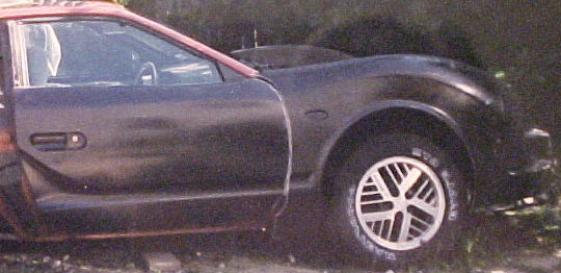

Before:
After:
 |
#8
The middle is 3" off the ground and the rear is 4 1/2".
(2/8/03)
|
 |
