F3B WINCH
A compact winch designed specifically for F3B gliding but suitable for launching model aircraft in various types of thermal contests.

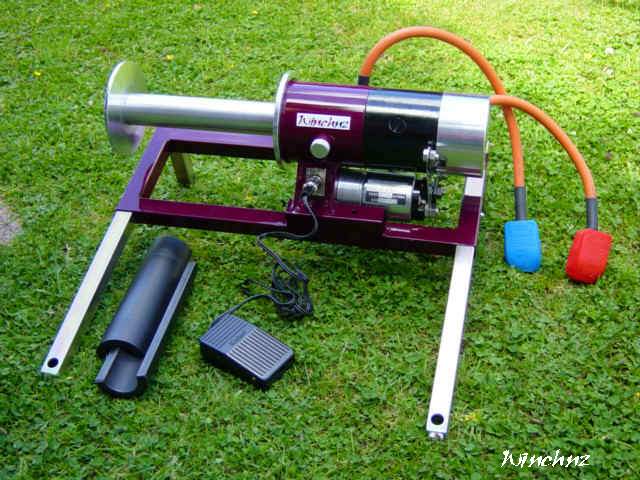

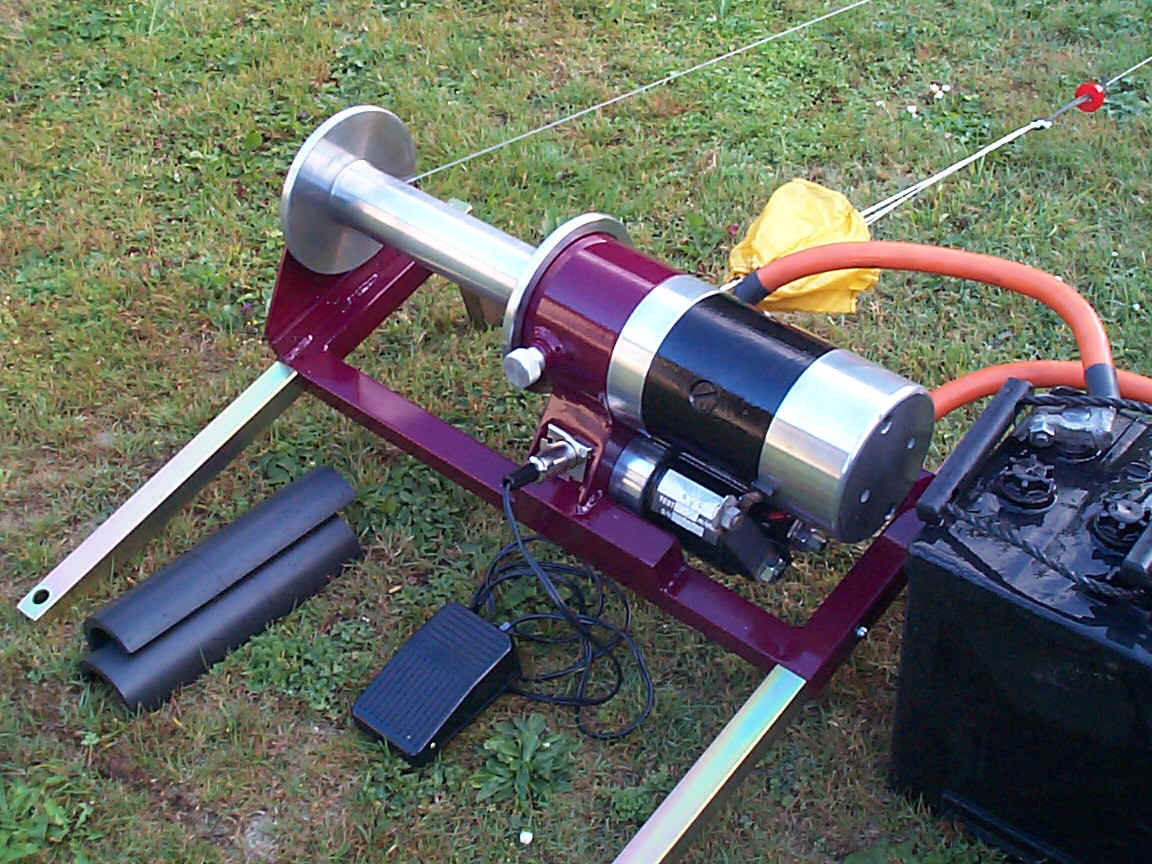

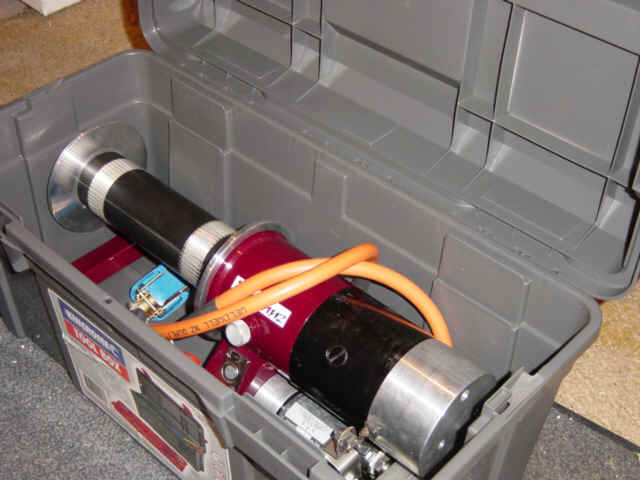

This winch has a Bosch motor driving a Ø42mm aluminium winch drum. Removable legs provide elevation on the field but slide into the frame for storage. The winch shown also has a ball bearing end cover fitted to the motor and a heavy duty Bosch solenoid in the electrical circuit.The winch can be stowed in a plastic toolbox for easy transportation and storage.

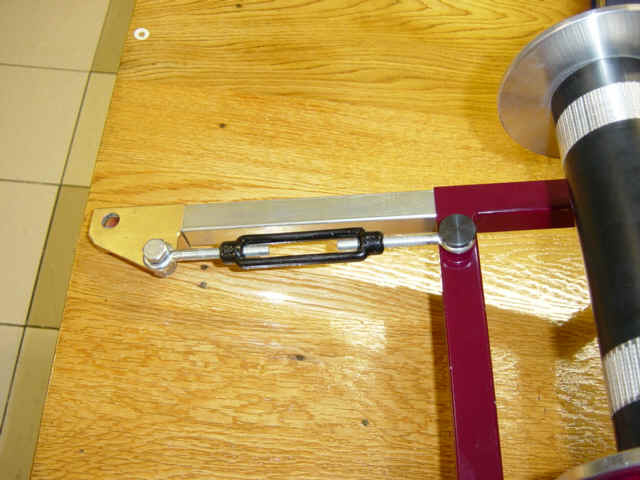

Winch box and Alignment adjuster are extra features available.
Motor:
Soleniod:
Drum:
Clamshells:
Dimensions:
Weight:
Bosch 1.1 Kw 12V
Bosch 350-400 amp

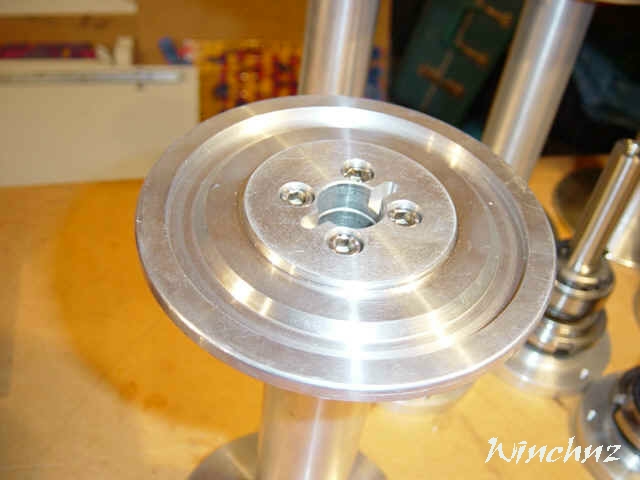

Ø42mm aluminium with Ø125mm cheek plates x 210 long. Removeable.
Ø63mm PVC
470mm x 165mm x 178mm (H)
15 Kg
