Example 3 of Paper

Example 3 of the Paper was done both:-
  (1) Graphically as a profile in AutoCad/Mechanical Desktop and
  (2) As an Excel spreadsheet.

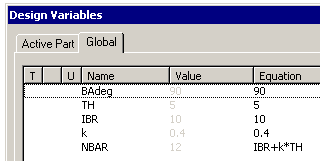

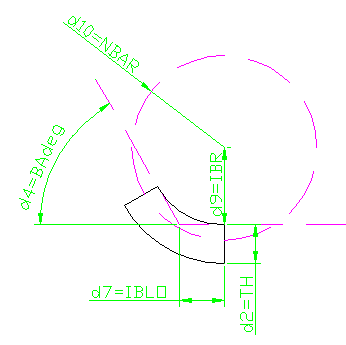

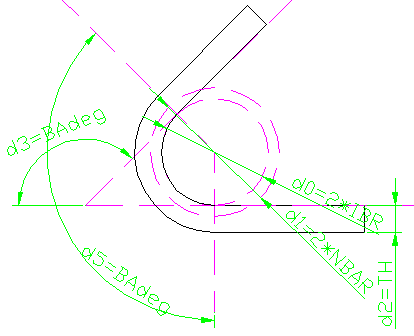

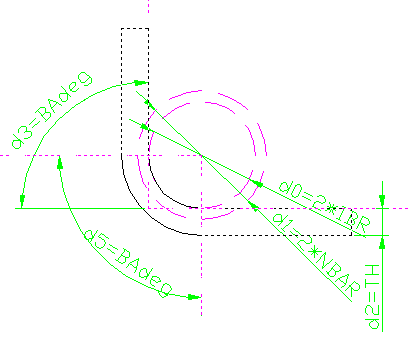

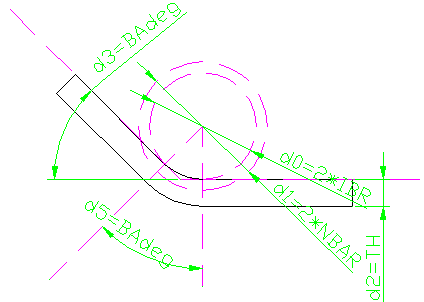

1. Graphically In Acad/MDT

lg.lsp A lisp that will measure most entities. From www.afralisp.com (Namibia).

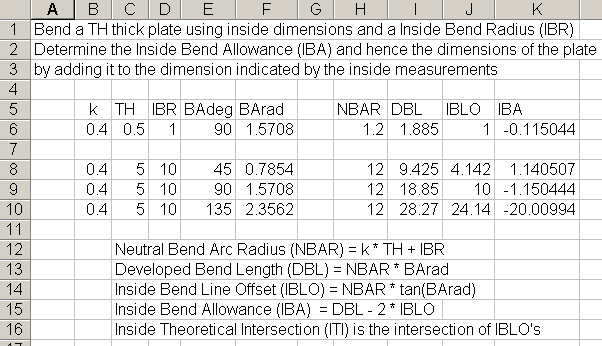

2. As An Excel Spreadsheet

fig3example.xls An Excel worksheet solution.
