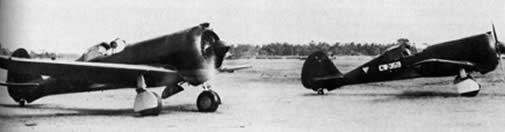

Aircraft: Curtiss CW-21D Interceptor

Function: Fighter
Crew: 1
Wing Span: 10,67 m
Wing area: 16,20 m2
Length: 8,28 m
Height: 2,64 m
Empty weight: 1534 kg
Loaded weight: 2041 kg
Max. speed: 507 km/h
Cruissing speed: 454 km/h
Ceiling: 10455 m
Range: 1014 km
Engine: Wrigh R-1820-G5 Cyclone with 1000 pk
Armament: 2X 7,62 mm Machineguns

Curtiss-Wright CW-21B Demon

Type:		single seat fighter
Crew:		1: Pilot
Armament: 	two .30 cal machine guns
		two .50 cal machine guns

Specifications:
	Length:        	27' 2" (8.28 m)
	Height:        	8' 11' (2.72 m)
	Wingspan:      	47' 8.75" (14.55 m)
	Wing area:	174.3 sq. ft (16.19 sq. m)
	Empty Weight:  	3382 lb (1534 kg)
	Max Weight: 	4500 lb (2041 kg) max at takeoff

Propulsion:
	No. of Engines:	1
	Powerplant:    	Wright R-1820-G5 Radial
	Horsepower:	1000 hp

Performance:
	Range:		630 miles (1014 km)
	Cruise Speed:   282 mph ( 454 km/h)
	Max Speed:      315 mph ( 507 km/h) at 17000 ft
	Ceiling:       	34,300 ft (10,455 m)
