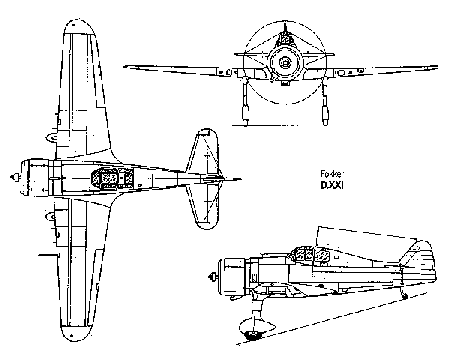

Aircraft: Fokker DXXI
Type: Light Interceptor, monoplane
Year: 1937
Crew: 1 man
Engine: 1 9-cylinder Bristol Mercury VIS-radialengine with 619kW
Max speed: 460km/h @ 4420m
Cruisingspeed: 385km/h
Range: 950 km
Max alt: 11000m
Weight: Empty: 1450kg; Max startweight: 2050kg
Armament: 2X 7.92 mm Browning-machineguns in the cowl and 2X 7.92mm Browning-machineguns in wings, or 2X 7.92 mm Browning-machineguns in the cowl and 4X 7.92mm Browning-machineguns in wings, or 2X 7.92 mm Browning-machineguns in the cowl and 2X 20mm cannons in pods below the wings, or 2X 7.92mm Browning-machineguns in the cowl and 2X 23mm cannons in pods below the wings
Wingspan: 11.00m
Length: 8.20m
Height: 2.95m
Wingarea: 16.20m2
Note: Fixed gear
