Data Validation

The lesson explains how to create Data Validation and illustrates some cool techniques to be used. The following areas are covered:
1. Validating Data with Values, Dates, Time and Text Length.
2. Validating Data with Values found in a list.
3. Validating Data with a formula. The following useful examples are illustrated:
3.1 How to verify data by entering it twice.
3.2 How to prevent duplicate values in a list (see the illustration at the end of this page).
3.3 How to prevent entering values in a range if the total exceeds a limit.
3.4 How to require entry in a specific cell before allowing entry in the active cell.
3.5 How to use multiple maximum and minimum limits - for example require that a value entered should be in one of the following ranges: 200-300 or 500-600 or 800-900.
3.6 How to prohibit entering weekend dates.
4. Entering Input Messages.
5. Entering Error Alerts. Explaining the Stop, Warning and Information Styles.

Data Validation - Examples


Data validation aims to reduce the Mechanical Errors. For example, if the value in a cell must be greater than 100 you should select the cell and chose Data / Validation. In the "Settings" tab complete the fields as follows: "Allow:" - Whole Number, "Data:" - greater than, "Minimum:" - 100.

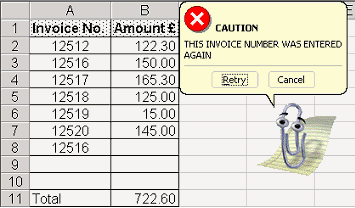

Data Validation can also be used in more sophisticated situations when you select the Custom option of the "Allow:" field. This allows the user to enter a formula that should return either True or False. The value entered in the cell will only be accepted as long as the formula returns True. An example is the illustration below which shows how Data Validation can be used to prevent duplicate values in a list. To do this, select range A2:A11, chose Data/Validation/Custom (Allow field) and enter the following formula in the Formula Field:
  =COUNTIF($A$2:$A$11,A2)=1.
Note that A2 is in absolute reference (without the Dollar sign) so that in each cell of the range A2:A11 the reference will change to the reference of its own cell (eg in A3 the formula will read as =COUNTIF($A$2:$A$11,A3)=1).

If you want to display a specific message, select the "Error Alert" tab of the "Data Validation" window and enter your error message.

A number of examples of Data Validations are exhibited in the file "Template" found in the Download Page
