Project Description #3

Title:                                                                                  AC Control

Description:

A central thermostat with ability to control temperature in different areas.

Objectives:

Address the problem of different cooling needs in different areas

Monitor each climate zone via master control, but control temperature in each zone from either the master control or slave controls in each zone.

Compensate for any pressure developed which may be damaging to HVAC system

Specifications:

Three to four measurement areas

Master Control

Readout of desired and actual temperature in each area

Ability to change desired temperature for each area

Controls mechanism to increase cold air flow to areas that need cooling and reduce cold air flow to areas that are at desired temperature

Monitor overall pressure of entire system

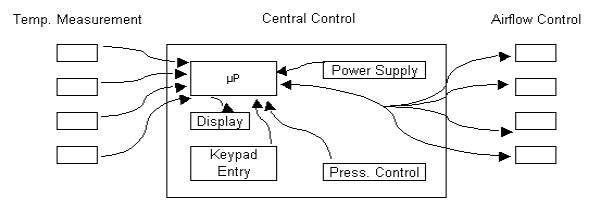

Diagrams:









Cost Estimate:

                                                μP                                            $15

                                                Display                         $10

                                                Keypad                                    $15

                                                Switch relay (24V)                   $10

                                                Servo(4)                                   $10 ea.

                                                Thermocouple(4)                      $5-20 ea.

                                                Manometer                               $15



Schedule:



            Locate appropriate thermocouple, display, and thermostat controls



            Design plans for a full scale duct equipped with a rotating air flow diaphram

            Determine appropriate servos for controlling the diaphram within the duct



            Begin building duct equipped with servo and diaphram



            Begin design of master control



            Begin design of slave control



            Integrate master control w/power supply, thermocouple



            Integrate slave control w/power supply, thermocouple



            Integrate servo w/power supply, manometer, and master control



            Assemble and test entire system



            Test and trouble shoot
