Video Sky Patrol - ' ....a skyward pointing ultra-sensitive ccd and a cheapie analog capture card/PC step up I utilised for auto-recording of the sky. Your turn is to explore hidden hot-spot(s)... ykChia
>>

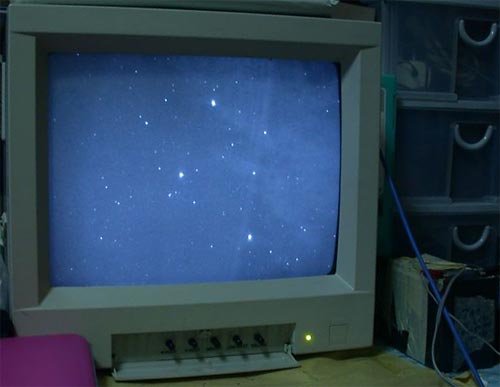

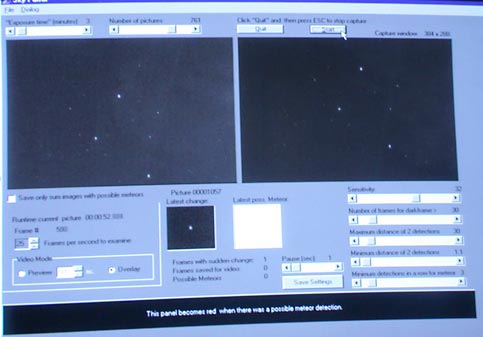

( Top ) Crux outside my window - as shown on the 15" High resolution (1000 lines) b/w Monitor . On a clear night LM of better than +8.5 can be achieved. ( Top) On the PC's 17" monitor is the SkyPatrol Screen that did the autostacking at user selected intervals ( 1-3 minutes).

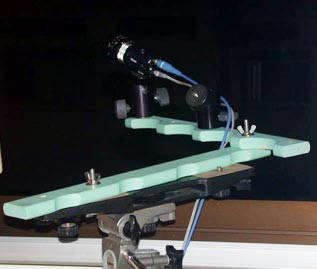

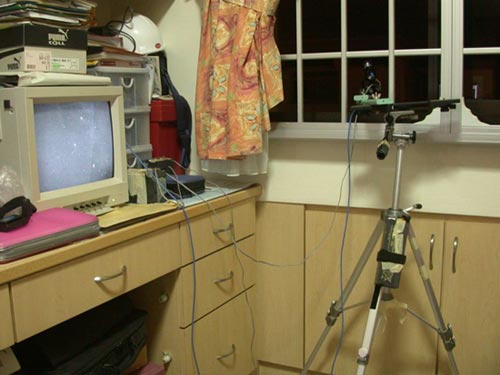

((Below) To stick my ccd/lens further out the window - I simply swing out and straighten the two pieces of wood joined by wing - nut/bolt.. ( Below) General view of the watec-902H/lens on tripod and Monitor screen. 12 volt gel battery beside the monitor supplied the 12 volt to the ccd.
Find the wood extensions I mentioned - hot spots embedded. Just for fun I have embedded a few hot spots in the above pics - find them all!
12 volt gel battery black white monitor watec 902H / lens drawer that house a SkyMap shoe box that serves as a filing cabinet hard head for my mobile ccd project A 2.6 AH Gel battery   for the watec in the field CD pouch .. first extension piece 2nd extension piece fast lens and watec 902H crux panel turns RED when there is detection
