Alarm System (Version 1)

Author: Kirill Yelizarov

The Software, which you can find here, is free. I do not warrant the information or Software or results obtained by using this information, or Software. I will not be liable to you for any damages, lost savings or other consequential damages arising from your use of this information, documentation, or Software.
YOU USE THIS SOFTWARE, INFORMATION, DOCUMENTATION ON YOUR OWN RISK.

Here is an old post. I used pic 16c84 in this project. It may be replaced with pic 16f84.

Transmitter

Transmitter schematic diagram is shown in figure 3.

Figure 3: TRANSMITTER SCHEMATIC DIAGRAM

Transmitter Parts List

Capacitors:

C1 - not used in this version (short circuit it)

C2 - 0.1 uF

C3 - 470 uF (electrolytic)

Diodes:

D1-D2 - CQY99 (Infra Red light emitting diodes)

Resistors:

R1 - not used in this version

R2 - 51 Ohm

R3 - 1 kOhm

Miscellaneous:

U1 - PIC16C71 programmed with transmitter code

S1-S3 - normally open pushbutton switches

Here you can find transmitter assembler code.

Main Unit

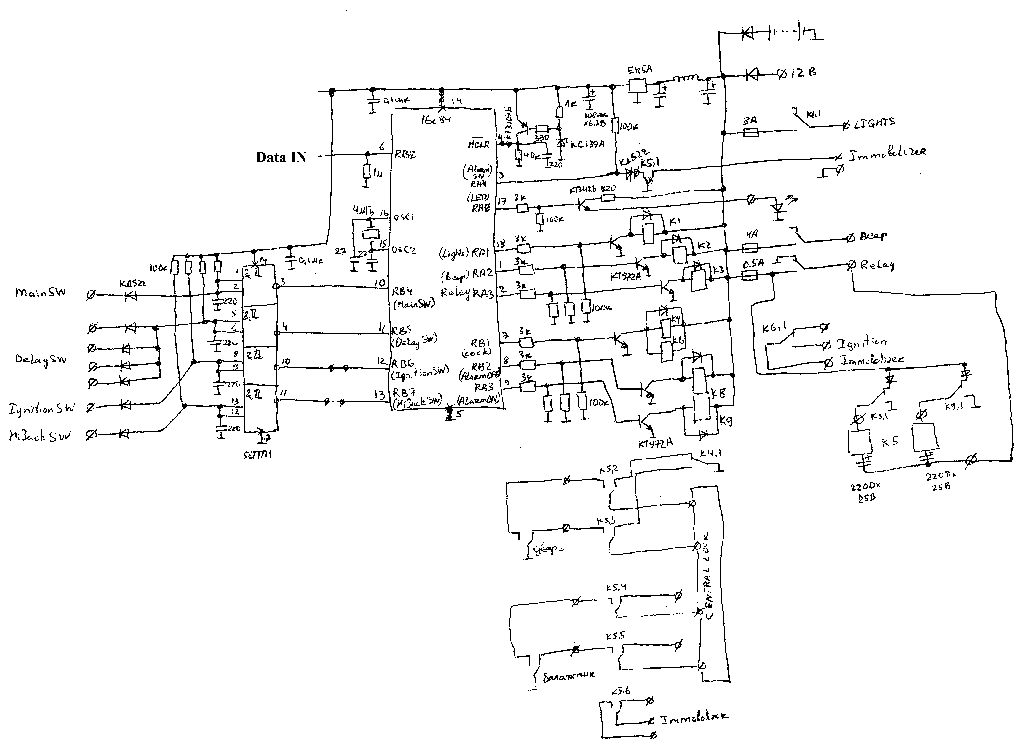

Figure 4: MAIN UNIT SCHEMATIC DIAGRAM

Main Unit Parts List

Capacitors:

C1 - 220 uF (electrolytic)

C2 - 470 uF (electrolytic)

Diodes:

D1 - BPW41 (Photo diode)

D1-D13 - 1N4148

D14,D15 - 0,5 amp rectifiers

D16 - blinking LED

Resistors:

R1-R4 - 300 Ohm

R5-R8 - 33 kOhm

R9-R13 - 4,7 kOhm

R14-R18 - 1,5 kOhm

R19-R22 - 4,7 kOhm

R23 - depends on the type of LED you will use

Miscellaneous:

Q1-Q4 - BC547

Q5-Q9 - 2N2222A

U1 - PIC12C508 programmed with main unit code

U2 - 78L05

Figure 5: IR RECEIVER SCHEMATIC DIAGRAM

IR Receiver Parts List

Capacitors:

C1 - 4,7 uF (electrolytic)

C2 - 47 uF (electrolytic)

C3 - 1200 pF

C4 - 0,01 uF

C5 - 0,33 uF

C6 - 100 pF

C7 - 0,22 uF

Diodes:

D1 - BPW41 (Photo diode)

Resistors:

R1 - not used

R2 - 1MOhm

R3 - 100 Ohm

Miscellaneous:

U1 - TBA2800

Here you can find main unit assembler code.
