Front drag control spinning reel. Ball race 1-8

FISHING REEL: SPINNING REEL.
for the no nonsense anglers.
Front Drag Version
Fully Balance Rotor.
HE, HF and HA series.

Front drag with high gear ration. With Brass alloy gears.
For test line up : 14kg /30lbs- aluminium alloy spool

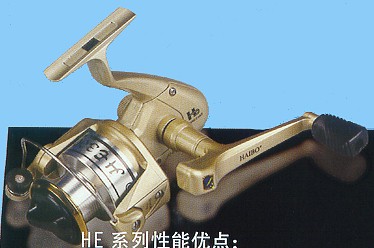

HE series spinning reel Spiral Drive gear system: Brass alloy Standard: 1 bearing HE series is also available in matt gold Finish	MODEL	LINE CAPACITY	GEAR RATIO	BEARING	WT.
	HE800A	250mtrs/0.20mm	5.5:1	1-4BB	240gms
	HE1000A	240mtrs/0.22mm	5.5:1	1-4BB	250gms
	HE3000A	185mtrs/0.28mm	4.6:1	1-4BB	320gms
	HE4000A	260mtrs/0.30mm	4.6:1	1-4BB	344gms
	HE5000A	310mtrs/0.30mm	4.6:1	1-4BB	350gms
	Body: High strength reinforced Nylon. Spool: Aluminium alloy Perfectly balance rotor Handle fold back: Flick action type. Standard model fitted with 1 ball race.		Spiral Drive gear system: Brass alloy Dual hand handle (left/right usage) Quick flick action for anti-reverse.

**All aluminium alloy construction with brass alloy gears.For test line from 15 lbs.-25** lbs.
HA series spinning reel Click to enlarge Standard Fitted with 8 ball race. FOR SUPER SMOOTH PERFORMANCE.	MODEL	LINE CAPACITY	GEAR RATIO	BEARING	WT.
	HA1000A	180mtrs/0.18mm	5.5:1	8BB	380gms
	HA2000A	360mtrs/0.20mm	5.5:1	8BB	400gms
	HA3000A	320mtrs/0.25mm	5.1:1	8BB	460gms
	HA4000A	180mtrs/0.35mm	5.1:1	8BB	500gms
	HA5000A	170mtrs/0.40	5.1:1	8BB	580gms
	Body, Spool, rotor and handle: Aluminium alloy Minimum reverse movement. Handle fold back: Flick action type Standard model fitted with 3 ball race.			Spiral Drive gear system: Brass alloy Dual hand handle (left/right usage) Quick flick action for anti-reverse.

**Metallic finish Nylon body equipped with Aluminium alloy spool.**

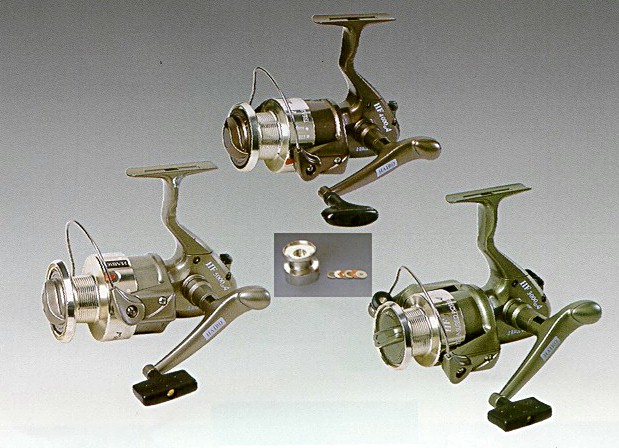

HF-A series spinning reel Click to enlarge HIGH SPEED OPTIONAL: CAN BE FITTED UP TO 4 BALL BEARINGS. FOR BETTER PERFORMANCE. Other colour reel	MODEL	LINE CAPACITY	GEAR RATIO	BEARING	WT.
	HF3000A	183mtrs/0.16mm 146mtrs/0.18mm 119mtrs/0.20mm	4.6:1	1--4BB	350gms
	HF4000A	256mtrs/0.18mm 192mtrs/0.20mm 169mtrs/0.22mm	4.6:1	1-4BB	380gms
	H5000A	310mtrs/0.18mm 238mtrs/0.20mm 183mtrs/0.22mm	4.6:1	1-4BB	400gms
	Body : High strength nylon. Spool: either aluminium or reinforced nylon. Handle fold back: Flick action type Standard model fitted with 1 ball race.			Spiral Drive gear system: Brass alloy Dual hand handle (left/right usage) Quick flick action for anti-reverse.
