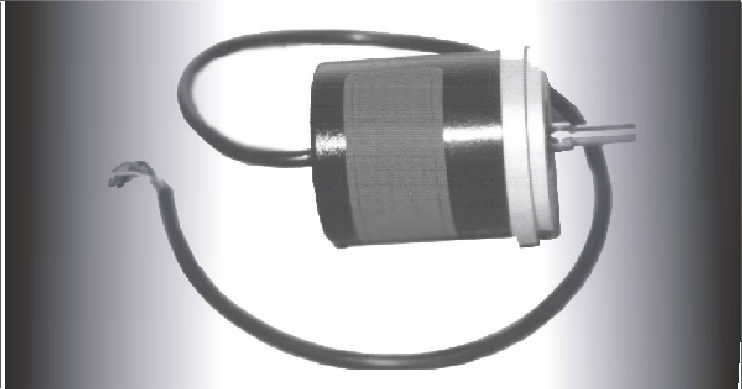

Optical incremental encoder - OIE 6A



 General information









… The optical incremental encoders are designed for conversion of angular values (positions, transpositions, speeds and accelerations) into electric pulses read by bi-directional electronic counters or computerized systems. They can be used in CNC-control machines, robot engineering, authomated dosing and control systems, production process control, radionavigation equipment, CAD systems etc.

Technical data

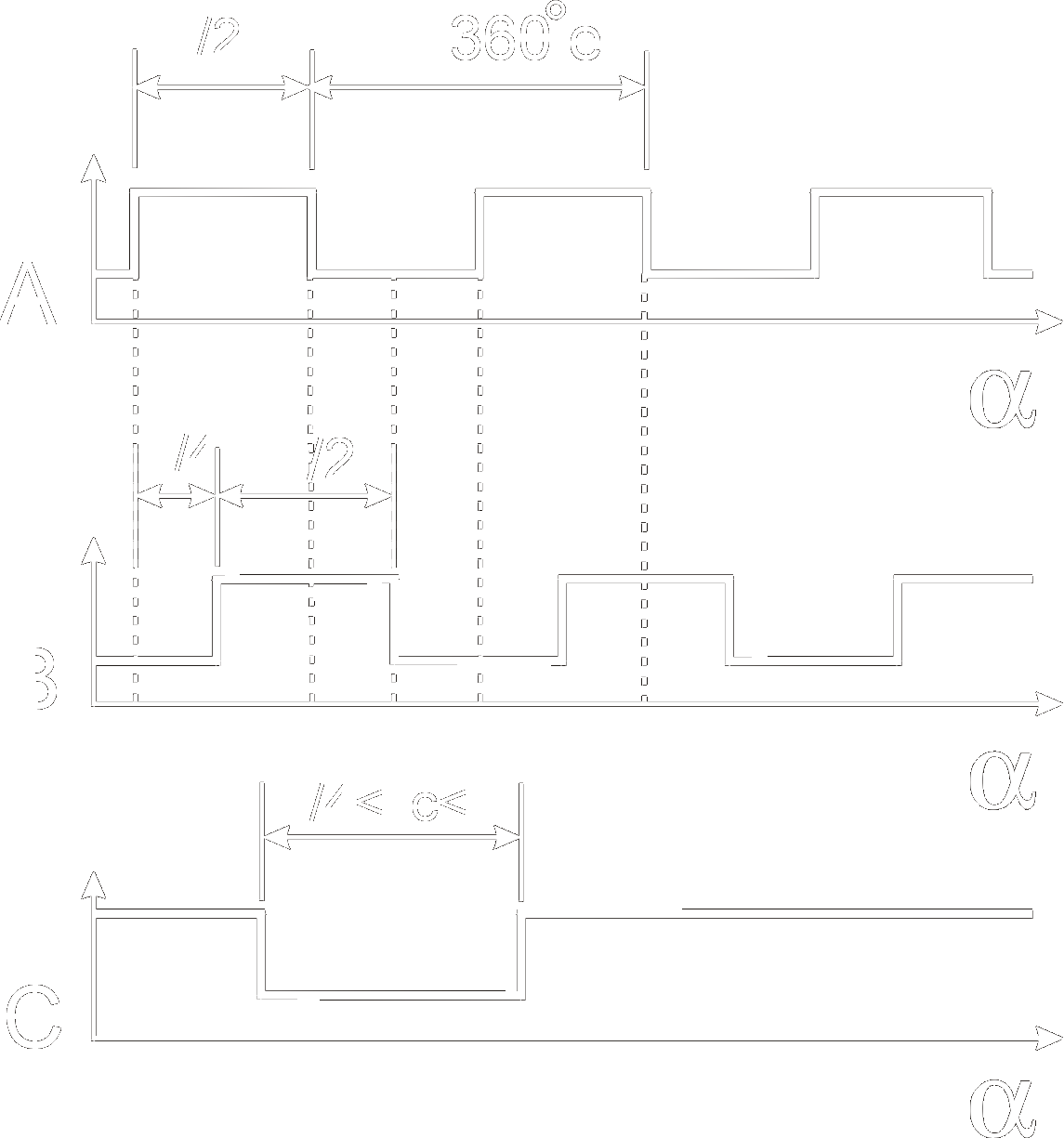

Timechart





Output signals:

  • Two series of square pulses A and B, dephased at 900 ± 300 electrical.

  • Zero signal - one per revolution.

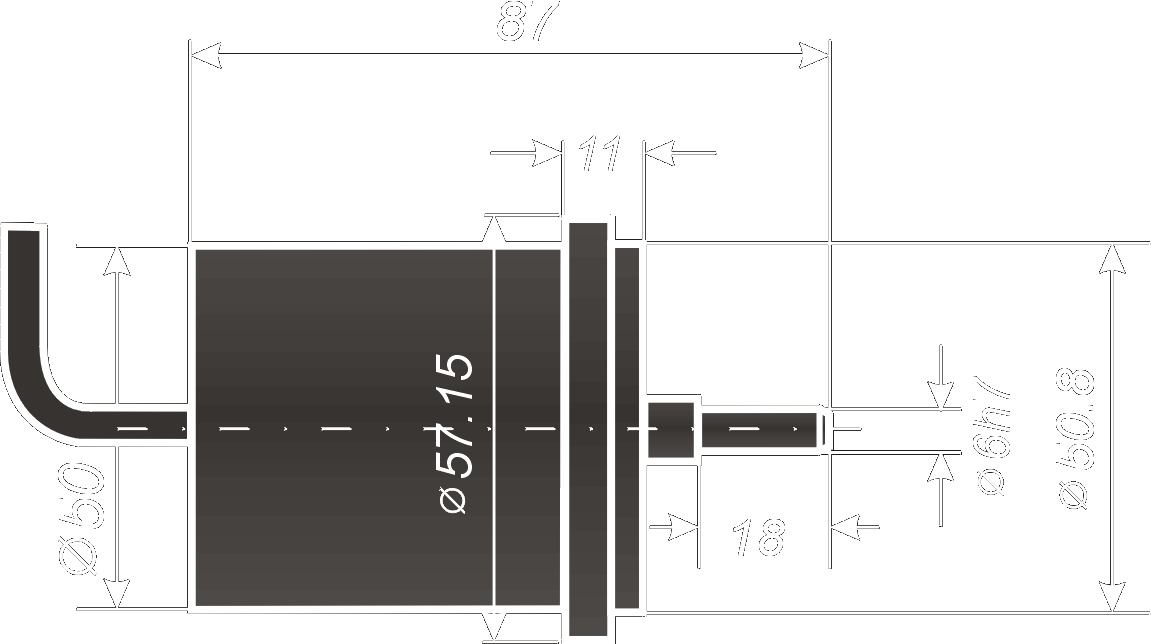

 Scheme















 Timechart
