Hand pulse oscilator - RIG 6
General information

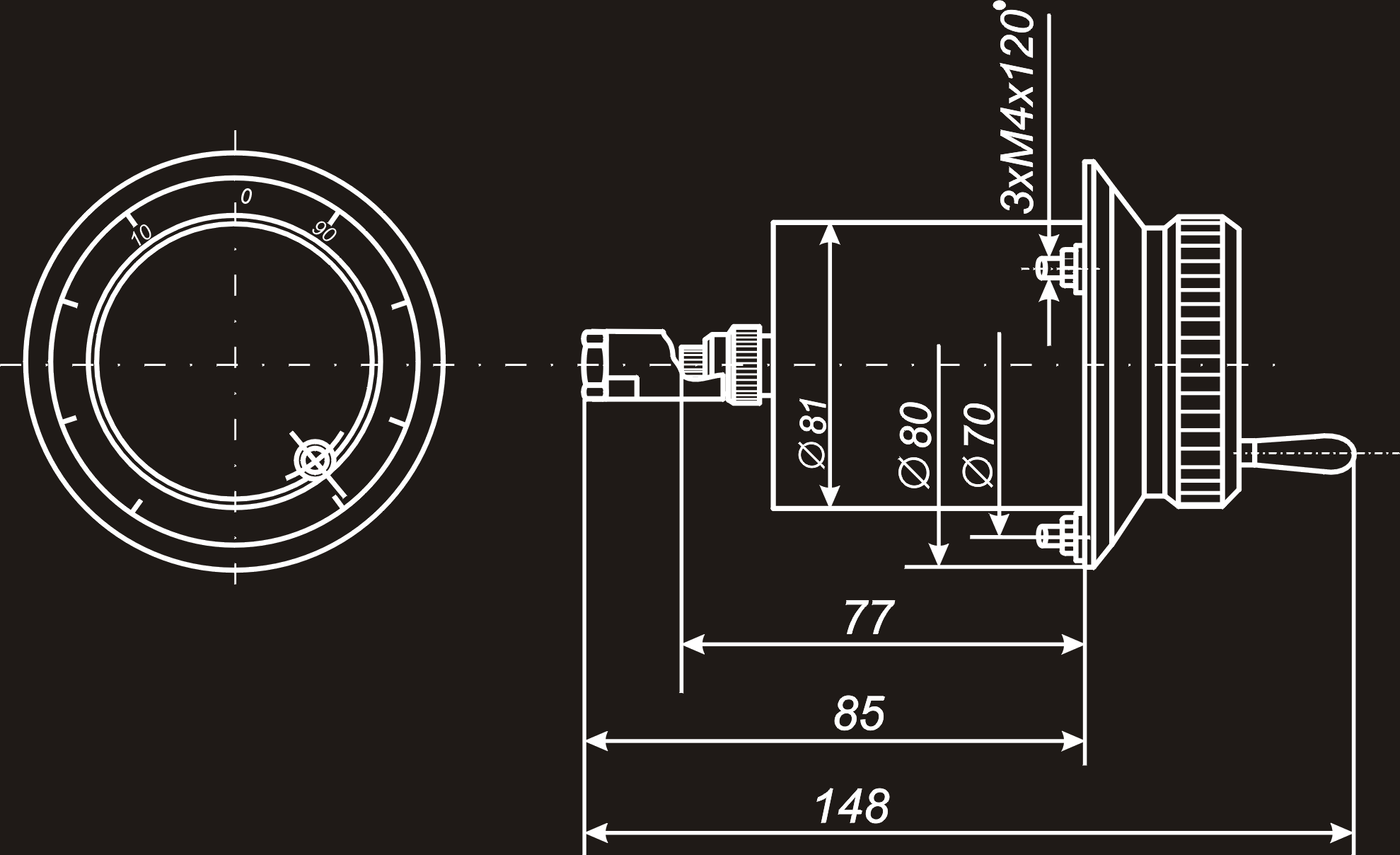

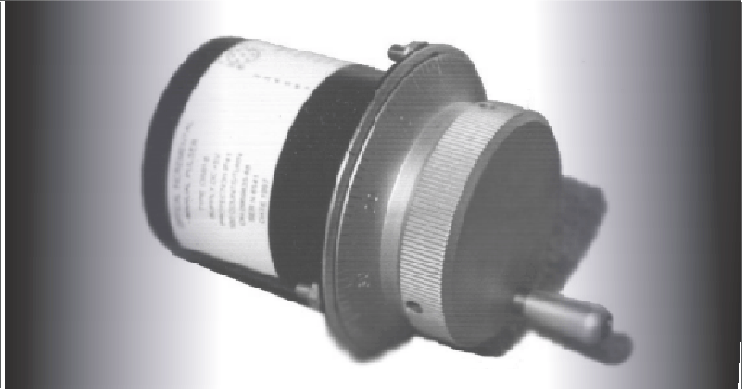

The hand pulse oscillator RIG–6 is designed for equipment composition of CNC – control machines. It is mounted on the operator desk and serves for operation of the machine in ‘hand’ regime.
Output signals:

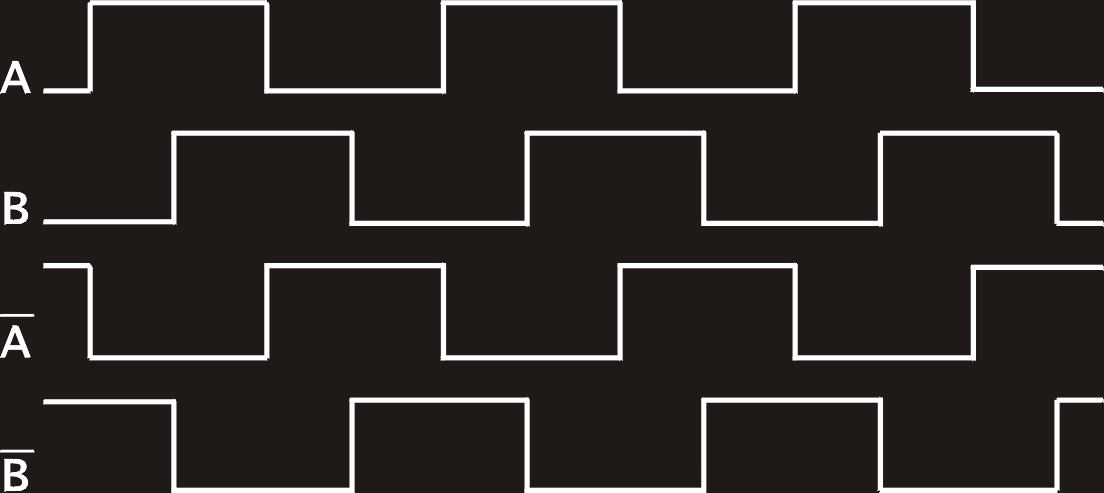

- Two series of square pulses A and B, dephased at 900 ± 240 electrical.
- Inverse signals A and B.

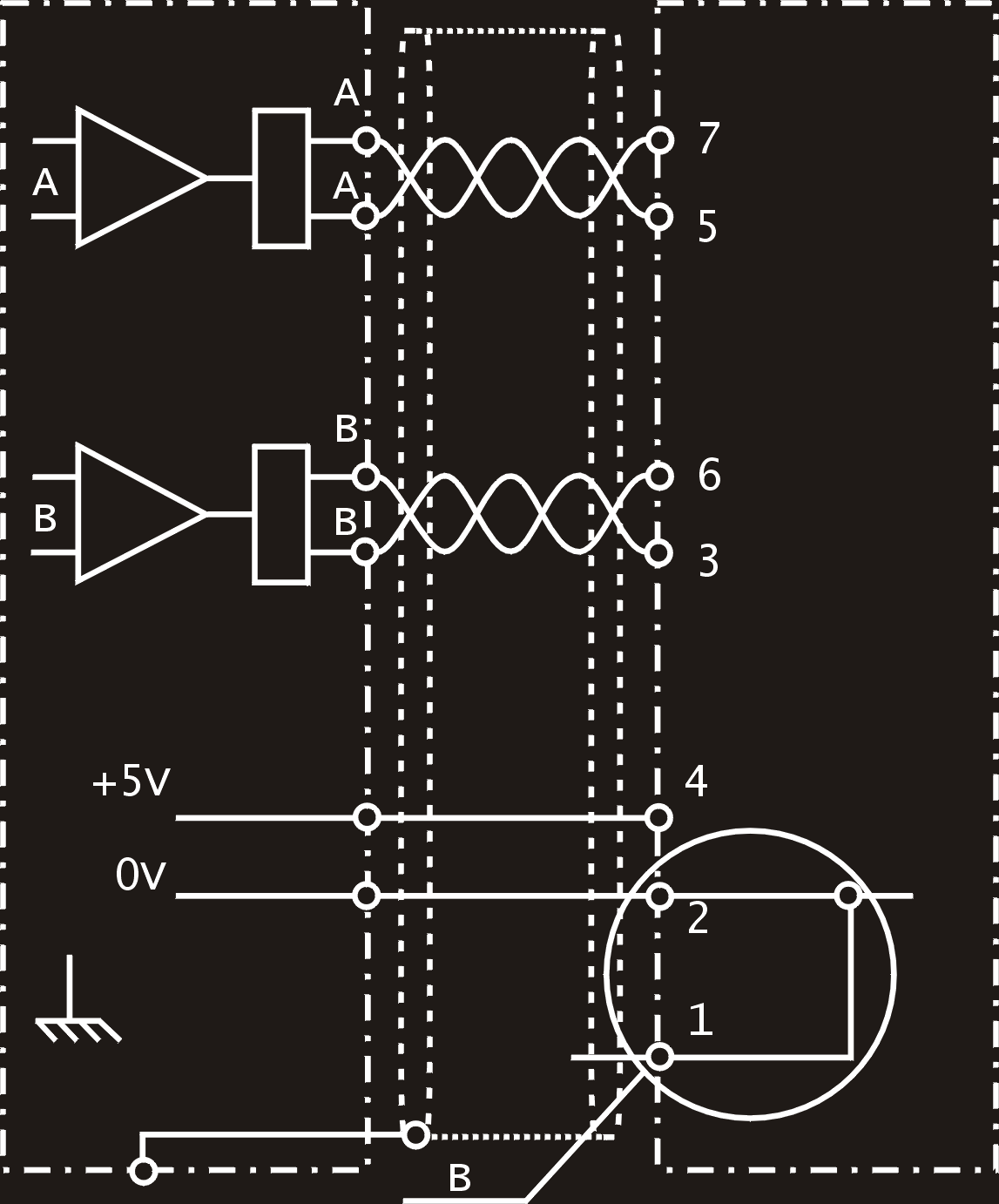

Scheme
