By-Pass Filter Kits
AMSOIL'S NEW IMPROVED BY-PASS FILTER SYSTEM
20 MAJOR CHANGES TO MAKE IT EASIER
TO INSTALL, EASIER TO SERVICE, NO WORRY ABOUT LEFT OR RIGHT MOUNTING
AND IS RUGGED FOR LONG LASTING CAPABILITY!
(please call us for detailed
information - systems fit all types of cars and small and large trucks)
(Standard System)
AMSOIL's Patented By-Pass Filter System
AMSOIL has developed the finest
oil filter system in the World! Think about this for a minute....
"Detroit" tells us that the dirt that does the most harm
and causes the most wear in an engine is from 5 microns up to 20
microns in size (a human hair is about 100 microns). AMSOIL makes
By-Pass Filters to fit almost any car or small truck.The AMSOIL
By-Pass filter to use in these applications is the Dual Remote
By-Pass Filter System
This system simply consists of an
"adapter" that mounts where the normal "spin-on"
oil filter mounts and then a "bracket" that, on one side
holds the "normal spin-on" oil filter (White filter in
picture) and the other side of that mount holds the "By-Pass
Filter" (Black filter in picture).
This "kit" is then
mounted in or around the engine compartment. In many cases there is
not enough room to mount it in the engine compartment and it can be
mounted in a "wheel well" or in front of the radiator.
Usually some place can be found to place the By-Pass Kit. For example
on some Vans we mount them on the frame just under the driver's seat.
All of the oil passes through the
Conventional Filter and then a very small percent of the oil is
"bled off" and it passes through the "By-Pass
Filter". (Previous model By-Pass illustrated above) - (It works
on the idea of a swimming pool filter... filters a small amount of
the oil at any one time, however, in five minutes, at 45 MPH ALL of
the oil will have gone through the By-Pass Filter. It is just like
getting a Fresh Oil Change Every five minutes of Driving!).
Think about this for a minute....
If you use a "conventional
oil filter" and it can only take out dirt particles as small as
(about) 20 microns - you know you have "20 micron clearances in
your bearings"! If you just use the Amsoil Spin On Filter that
filters out dirt as small as 5 microns it is then possible to have
only "5 micron clearances" in those bearings. IF YOU USE
THE BY-PASS SYSTEM (The By-Pass Filter can filter out dirt as small
as 1/10 of a micron) you will CONTINUE to have tighter clearances AND
longer engine life! THE AMSOIL BY-PASS SYSTEM IS DESIGNED TO KEEP
YOUR OIL ANALYTICALLY CLEAN AT ALL TIMES and to make your expensive
engine last far longer than with any other filter system!
AMSOIL BY-PASS OIL FILTER SYSTEMS
ARE DESIGNED FOR ALL TYPES OF APPLICATIONS! Even very large capacity
oil sumps can be filtered by the AMSOIL Dual By-Pass Filter System.
AMSOIL Dual Remote By-Pass Filter
Systems in actual applications have been able to extend large
over-the-road truck oil change intervals to as much as 200,000 mile
or more! In Farm Applications where extreme dirt is a natural part of
life, AMSOIL Dual Remote Filter Systems can really extend the life of
expensive Farm Engines. FOR EQUIPMENT THAT SITS IDLE for long periods
of time it is important to realize that the AMSOIL By-Pass Filter
System is designed to REMOVE WATER AND MOISTURE FROM THE OIL,
therefore, preventing rust build-up in unused equipment.
No Matter how you look at it the
AMSOIL BY-PASS FILTER SYSTEM will save you money in many ways and a
system can be set up for you! SPECIAL COMMERCIAL PRICES ARE AVAILABLE!
Eight feet of hose comes with the kit (allowing mounting up to four feet from the existing filter). You can mount the filter in any location that is out of the way (i.e. ground clearance is important). We mount them in the fender well, in front of the radiator and sometimes under the driver's seat on the frame.,
The Best Just Got Better
New Bypass Mounting HardwareThe question to ask about the new AMSOIL By-Pass Oil Filtration Systems is not, "What's new?" It's "What's NOT new?" Bypass Filter BaseThe filter element is not new, AMSOIL filter elements are, and always have been, the best available. Everything else is bigger, beefier, and better than ever. The new by-pass systems are the product of computer technology and heavy dealer input. And they've been subjected to millions of miles of field testing in passenger cars and heavy duty equipment.
Hardware Changes
Mount: The high-pressure diecast aluminum mount has been replaced by an anodized mount machined from solid aluminum billet, using computer-aided machining. The new mount offers:
* Quieter
* Greater strength
* Corrosion inhibition
* Engraved AMSOIL name
* New porting for improved flow leek appearance
* Aircraft quality thread tolerances for leakage inhibition, durability, strong connection
Attaching points: The original bolts and washers have been replaced by large diameter bolts for greater strength and large diameter fender washers, which spread the load over more surface area and provide a more positive attachment to the application.
Hose: The new hose features three times the reinforcement of the hose it replaces and an abrasion resistant cover. The new hose offers:
* Greater strength
* Double the burst pressure
* Greater cut and abrasion resistance
Hose fittings: Hose clamps have been replaced by reusable swivel hose end fittings with JIC taper. The new hose fittings offer outstanding security. The pressure required to separate the hose from its fitting is greater than the hose burst pressure. The new fittings also have four times the hose contact surface of the old fittings. Swivel fittings eliminate hose twisting during installation for reduced hose stress JIC taper increases positive lock for greater leakage resistance and strength.
For more information regarding which bypass system to choose and how to install it, see our "Bypass Installation Instructions".
If you are interested in ordering a bypass system but are unsure of exactly what you need, please e-mail or call us at 877-689-4719 for details.
Filter Change Recommendations
(BMK-11) Spin-On By-Pass Kit
Order
Today!
AMSOIL Bypass FilterOne bypass filter element (the BE-90) is mounted remotely with your mounting kit and hardware. There is a line running out of the bypass system to your oil pan and a line running into the system from your oil sending unit. Any size filter element can be used (BE-90, BE-100, BE-110), so the bypass filter element is not included. An AMSOIL full flow filter is also needed for mounting where your current filter is mounted.
*The BMK-11 kit includes your filter mount and 8 feet of hose and mounting hardware. Filter elements are sold separately.
(BMK-12) Dual-Gard By-Pass Kit
Order
Today!
Dual Gard Remote Bypass Oil Filtration SystemThe Dual-Gard is designed for applications with sump capacities over 14 quarts and requires two by-pass filter elements. An AMSOIL full flow filter is still necessary for mounting at standard location.
The BMK-12 mount does not include hoses, mounting hardware or filter elements. They must be purchased separately.

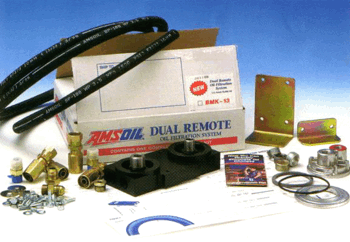

(BMK-13) Dual Remote Filtration Kit
Order
Today!
Dual Remote Bypass Filtration SystemDesigned to facilitate mounting both the by-pass filter element and the full flow filter element in one remote location. An adapter is used at the standard full flow mounting point. AMSOIL recommends using the largest filters that will fit (see bottom of page) for your particular mounting location. No filter elements are included, but all mounting hardware and hoses are included.
(BMK-15) Dual Remote System Order
Today!
(Cummins Diesel Pickups - Primarily Dodge)
Dual Remote Bypass Filtration SystemSame as BMK-13 above but with special adapter for Cummins engine.
(BMK-16) Dual Remote System Order
Today!
(International Diesel Pickups - Primarily Ford)
Dual Remote Bypass Filtration SystemSame as BMK-15 above but with special adapter for International engine.
