Changing Settings with Device Manager

For Plug and Play-compliant devices, there are no true default settings. Instead, Windows 95 identifies devices and their resource requests, and then arbitrates requests among them. If no other device requests the same resources as another device, its settings should not change. If another device requests its resources, the settings might change to accommodate the request. Consequently, you should never change resource settings for a Plug and Play-compliant device unless absolutely necessary. Doing so will fix its settings, making it impossible for Windows 95 to grant another device’s request to use that resource.

All legacy devices have fixed resource settings, which are defined either during Windows Setup from a previous configuration, or afterward in the Add New Hardware wizard in Control Panel.
Certain circumstances might require users to change resource settings after they have been configured. For example, Windows 95 might not be able to configure one device without creating conflicts with another device. In such a case, a message usually appears to explain what is happening and what you can do about the problem — turn off a device to make room for the new device, disable the new device, or reconfigure a legacy device to make room for the new device.

The best place for resolving any conflicts that might occur is the Hardware Conflict troubleshooting aid in Windows 95 online Help.
When you must manually change a device’s configuration, you can use Device Manager in the System option in Control Panel. Using Device Manager helps you avoid the errors that can occur if you attempt to edit Registry entries directly.
If you need or want to resolve device conflicts manually, you can use Device Manager and try the following strategies:

Identify a free resource, and assign the device to use that resource.
Disable a conflicting Plug and Play-compliant device to free its resources.
Disable a legacy device by removing the legacy device card and not loading the device drivers.
Rearrange resources used by another device or other devices to free resources needed by the device with a conflict.
Change jumpers on your hardware to match the new settings.

Caution  Changing default settings using either Device Manager or Registry Editor can cause conflicts that make one or more devices unavailable on the system.

Device Manager and Registry Editor are provided as configuration tools for advanced users who understand configuration parameters and the ramifications of changing settings.

To use Device Manager

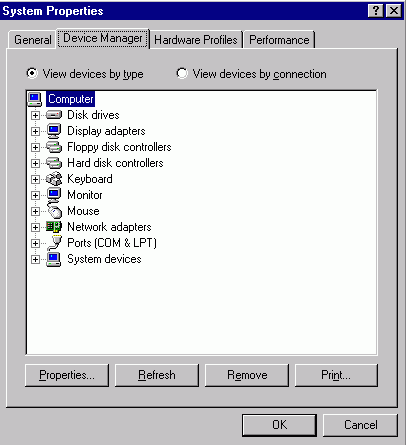

1. In the System option in Control Panel, click the Device Manager tab.
– Or –
Right-click My Computer, click Properties from the context menu, and
then click the Device Manager tab.
If you have a Win95 keyboard then just press the
"Left Windows Key+Pause/Break" Key.

2. Double-click the device type in the list to display the specific
devices of that type on your computer.
3. Double-click the device you want to configure. Or select the device,
and then click the Properties button to view or change its settings.

To change the device driver using Device Manager

1. In Device Manager, double-click the related device type.
2. Double-click your current device to display its properties.

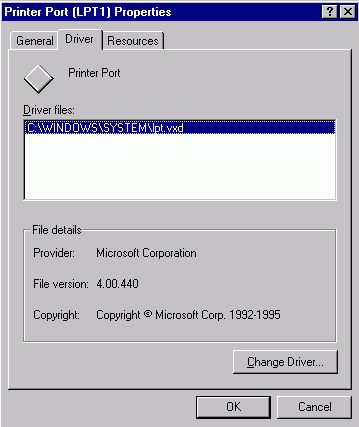

3. Click the Driver tab.

The Driver properties dialog box shows the driver files and current
resource setup for that device.


4. Click the Change Driver button.


5. In the Select Device dialog box, the Show Compatible Devices option is checked to show you a list of drivers that Windows 95 has identified as compatible for your device.
– Or –
Click Show All Devices to see a list of all the drivers available in Windows 95.

Important  Be very careful in selecting a driver in the Show All Devices list. You should select a driver from the Show All Devices list only when you know that you are selecting a driver that is compatible with the device.

6. In the Models list, select the driver you want to use, and then click OK.
7. If requested, follow the instructions on the screen to provide a disk or a path to a directory that contains the display driver.

In Device Manager, you can print reports about system settings, including reports on the following:

System summary
Selected class or device
All devices and system summary

To print a report about system settings

1.In Device Manager, click Print.
2.In the Print dialog box, click the type of report you want.

Caution  You should quit all MS-DOS-based applications before printing the report named All Devices And System Summary because the device detection code might cause problems for some MS-DOS-based applications. If you do not do this, some applications might report the system is out of memory.

To change a device’s resource settings using Device Manager

1. In Device Manager, double-click a device class.

The tree expands to show the devices of that class available on the computer.

2. Double-click a device to display its properties.

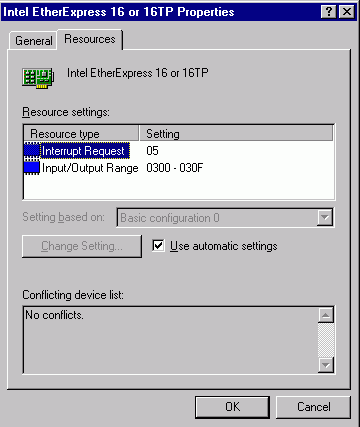

3. In the device’s properties, click the Resources tab.

Notice that the Conflicting Devices List shows any conflicting values for resources used by other devices.

4. In the Resource Type list, select the setting you want to change — for example, the Input/Output Range — and then click the Change Setting button.

Notice that you can select and set the IRQ, I/O, and DMA independently, and that if the option named Use Automatic Settings is checked, you cannot change resource settings.

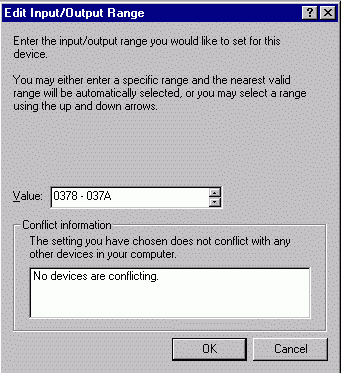

The dialog box shows the various settings that the device supports. Notice that in the Edit Input/Output Range box any interrupt marked with an asterisk (*) will conflict with an existing device. Any interrupt marked with a pound sign (#) indicates that the actual configuration has been tested.
When you clicked the Change Setting button, you might have received an error message saying “This resource setting cannot be modified.” If this is the case, you must choose a different basic configuration until you find one that allows you to change resource settings.

5. Choose a setting that does not conflict with any other devices, and then click OK.
6. Shut down and restart Windows 95. Then verify that the settings are correct for the device.

Note  Most legacy devices have jumpers or switches that set the IRQ, DMA, and I/O addresses. If you change these settings in Device Manager, you must also change the settings on the device to match them.

Tips for Changing Settings with Registry EditorYou can use Registry Editor to change specific values for devices. Use Registry Editor to change system settings in the following cases.
When directed to make specific changes by a product support representative.
When you know the correct Registry key, value settings, and editing restrictions for a specific device.
When you cannot successfully change the value using Device Manager or other built-in tools.When you make changes in Registry Editor, always make one change at a time, and then test the system for the results. If you have problems with the system after making a change, restart the computer and press F8 when the Starting Windows 95 message appears, and then choose the Safe Mode option. Then you can change the setting back to its previous value.You can also use the Connect command in Registry Editor to connect to and view the Registry on a remote computer if that computer has the
