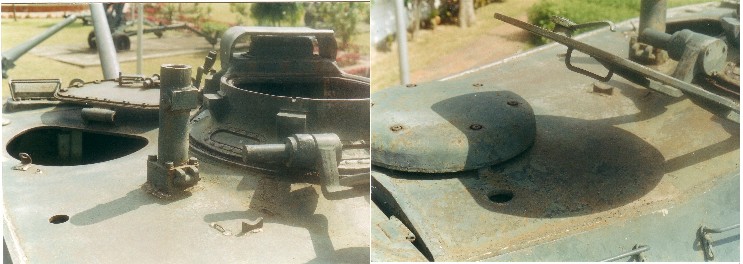

M-41 Walker Bulldog in the Philippine Army. researched by Abet Anido The AFP received 7 M41 light tank from 1961-1980 and they served with the 1st Infantry (Tabak) Division. Markings : ---Overall Olive Drab, White Markings ---full color armor triangle on the left(port) forward portion of turret, tank name below insignia ---1st Div insignia on the right(starboard) forward portion of turret Variations for AFP M41: ---.50 cal gun mount on right side of turret beside lower periscope ---spare .50 cal gun pintle mount behind loader's hatch SEE PICTURE ---canvas mantlet cover ---2 types of antenna placement: 2 on left(port)side, and 1 each on left and right side ---some with additional tool brackets mount on left side of turret ---additional tool bracket behind loader's hatch ---late version headlight mount/guards ---no blackout light on port headlight ---straight fenders not angled ---thin rubber on return rollers ---road wheel without outer lip? ---.50 cal mg flash hider used in 1966 Tanks: 1. Tank #11---Darapidap 2. Tank #12---Ligtas 3. Tank #21---Pakitang Lakas 4. Tank #22---Tulungan 5. Tank #31---Tagpo,,,2 tool brackets on port turret side, rear antenna on port side. 6. Tank #32---Bawi,,,3 tool brackets on the port turret side, antennas on port and starboard side additional tool bracket behind the loader's hatch 7. Tank #66---Siyasat,,,2 tool brackets on the port turret side, rear antennae on port side |
|||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||
Manufacturer Tamiya Scale 1/35 Modeler Homer Resurreccion Decals custom made by Homer Resurreccion Comments: Out of the box kit, no after market stuff. I lost the tool bracket on the right side and have to fill the holes. I painted the whole kit with model master marine corps green FS34052 Main gun canvas cover made from tissue paper painted khaki. |
|||||||||||||||||||||||||||||
contact me: Homer Resurreccion e-mail: afponlinemuseum@yahoo.com |
|||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||
