Nissan Pulsar (Sunny in some countries) GTi-R

"The GTi-R was the only 3-door hatchback of the fourth generation Pulsar (N14) spawned by a full model change in 1990. Based on the 2.0 litre inline 4-cylinder DOHC turbo SR20DET engine, the power unit boasts specifications of 230hp (170kw @ 6400rpm) and 209.7lb/ft (27.2kg @ 4800rpm) thanks to alterations to the 4-butterfly-throttle intake and exhaust mechanisms.
The body also underwent substantial changes with large spoilers being added to the front and rear, and a big air intake on the hood.
The drive produced is truly staggering, and the compact body accelerates as if it were being pulled by some huge force. The car really hugs the roads thanks to the four-wheel-drive, but as it is front-heavy, understeer can be a problem unless care is taken.
Because of its impressive driving capability on the streets, it maintains a faithful following among the general public."

From Gran Turismo 2 (PS1-US)

Nissan Pulsar/Sunny GTiR - Godzilla's little Bro

(Another well kept Nissan secret.)
Pull up a cumfy chair and bring your tissues, cause as with most Nissan stories, this one ends in tears...
Click some of the pic's on this page to give yourself a big one - Oo-er!

HOME

GODZILLA

HORSE POWER CALCULATOR - IMPERIAL

TURBO MOD'S

OO-ER!

All data below applies only to a standard GTI-R.

Dimensions, weight & performance

Length/Width/Height	3975/1690/1410 mm
Wheelbase	2430 mm
Track front/rear	1440/1415 mm
Kerb weight	1220kg
Seating capacity	5
Minimum turning radius	5.2 m
Maximum speed	139mph/223kph
Acceleration 0-100 kph / Quarter Mile	6.0sec / 14.0sec
Cd	0.39
Ground Clearance	150 mm

Mechanical features

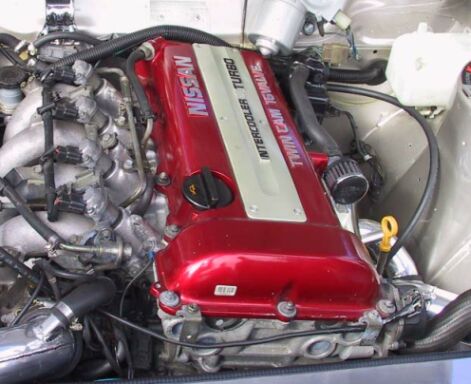

Engine model	SR20DET
Engine type	Turbocharged (Garrett T28 turbocharger @ 10.6 psi boost standard - On the Quad Throttle Body Pulsar GTiR SR20's. Compressor - 60 trim T3 with T04B 0.6AR diffuser Turbine - 1.85" wheel (76 trim), 0.64 A/R T25 housing ), in line 4 DOHC, 16 valves with intercooler
Displacement	1998 cc
Max power output	230PS/227BHP/169kW@6400rpm
Max torque	28.9kgm/210lb-ft/284Nm@4800rpm
Bore & stroke	86 x 86 mm
Compression ratio	8.3:1
Control system	Electronic port injection

Transmission type	5-speed manual
Transmission	1st 3.285
	2nd 1.850
	3rd 1.272
	4th 0.954
	5th 0.740
	Rev 3.266
Final gear ratio	4.125
Steering	Rack & Pinion, power assist with tilt
Suspension system	4-wheel independent with front McPherson struts. Rear parallel links with struts
4-Wheel drive system	With viscous coupling, center differential and viscous LSD
Brakes	Heavy-duty front ventilated disc brakes and rear disc brakes
ABS	A 4-sensor, 2-channel electronic anti-lock braking system is available
Tires	195/55R14 82V radials
Wheels	14-inch aluminium 14 x 6JJ
Colors available	TJ1 Blue Gray Graphite Pearl
	KJ7 Marble White
	AJ4 Red
	KH3 Super Black

Welcome to the Horsepower calculator.
To use this accurately you will need:
- The total gross weight of your car including you.
- Your quarter mile time

Horsepower Calculator

Car Model :
Vehicle Weight With Driver :	(in kilograms)
Quarter Mile time :	(in seconds)

This will give you an approximate indication of your power. All vehicles have a basic stock weight but this is altered by driver weight, fuel tank level, mods, stuff in the car. To find out what your average weight is, go your refuse station (dump, tip whatever) or truck weigh bridge and have your car weighed. Note it down, and whenever you go to the drags and do a quarter mile time, you can enter your details here and test your figures! See below for convertors...
kilograms into lbs(avoir) kg x2.2046
lbs(avoir) into kilograms lbs x 0.4536
kilowatts into horse power kW x 1.34
horse power into kilowatts hp x 0.746
lb-ft - Nm x1.356
Nm - lb-ft x0.738
kgm - Nm x9.813
Nm - kgm x0.1018
