| May 30, 2001 | - | Added a
success story of the AP5T-3.1 & K6-2 450MHz to the How YOU? page. Added a success story of the AP5T-3.4 & K6-2 458MHz to the How YOU? page. |
| January 2, 2001 | - | Happy
New Year, Century & Millenium 2001! To start off this very special year, I have 2 new success stories :- Added a success story of the AP5T-3.1 & K6-2 400MHz to the How YOU? page. Added a success story of the AP5T-3.1 & K6-II+ 400MHz to the How YOU? page. |
| October 29, 2000 | - | Wow! It's
been a while since my last update ..... <insert usual
excuses here>. ;^) Anyway, here are a couple of interesting updates :- Added Special Page entitled K6-2+ - Last of the Socket 7s. Added a success story of the AP5T-3.4 & K6-2 500MHz to the How YOU? page. |
| May 8, 2000 | - | Added a new taming story to The AP5T-3.0 - A Very Different Beast page. |
| May 8, 2000 | - | XOOM's server hosting
my homepage has been down for at least 2 weeks now.
Luckily I created a mirror site on GeoCities last month
..... or maybe it was because I created
this mirror site! ;^) Anyway, to I've re-routed the popular http://surf.to/ga586hx address to point to this mirror site. Of course you can still use these URLs as well :- http://go.to/hackedmobo http://www.oocities.org/hackedmobo/index.html |
| April 19, 2000 | - | Over time,
I've received a number of e-mails saying that my
homepage could not be accessed. This has been
due to XOOM's servers being down. To avoid these
problems, I've set up a mirror site at
Yahoo!'s Geocities. I don't know if Geocities will be any
better than XOOM, but hopefully they won't be both down
at the same time! ;^) http://go.to/hackedmobo http://www.oocities.org/hackedmobo/index.html |
| April 18, 2000 | - | E-mail address has been changed to hackedmobo@yahoo.com. |
| April 11, 2000 | - | Added a success story of the AP5T-3.1 & K6-2 to the How YOU? page. |
| April 3, 2000 | - | Added a success story of the AP5T-3.4 & K6-III to the How YOU? page. |
| March 1, 2000 | - | Added The 2.2V Rework #2 - Tamed Again! to The AP5T-3.0 - A Very Different Beast page. |
| March 1, 2000 | - | Added 2 Success Stories to the How YOU? page. |
| February 16, 2000 | - | Added a success story of the AX5T-3.1 & K6-III to the How YOU? page. |
| February 3, 2000 | - | Added The AP5T-3.0 - A Very Different Beast page. |
| January 20, 2000 | - | Added a success story about the AX5T-2 & K6-2 to the How YOU page. |
| January 18, 2000 | - | 3 owners of the AP5T Revision 3.0 mobo have reported that they cannot obtain core voltage lower that 2.5V. More info soon! |
| January 11, 2000 | - | A patch is
needed when using USB with Win98SE and AMD CPUs on VIA
chipset mobos. See this Microsoft page for more info and
downloads :- http://support.microsoft.com/support/kb/articles/q240/0/75.asp |
| November 17, 1999 | - | Updated the How YOU page with AX5T-2 & K6-III 450Mhz - An Upgrade Gone Wrong. |
| November 12, 1999 | - | Added the K6-III Core Voltage page. |
| November 12, 1999 | - | Added a success story about the AX5T-2 & K6-III to the How YOU page. |
| November 5, 1999 | - | Added a success story about the AP5T-2 & K6-III to the How YOU page. |
| October 21, 1999 | - | Updated the core voltage measurement diagram in the How? page to show exactly how to measure the voltage. I received quite a few emails asking for this clarification. |
| October 8, 1999 | - | Added a success story about the AP5T & K6-III to the How YOU page. |
| October 7, 1999 | - | Added a success story about the AX5T to the How YOU page. |
| October 4, 1999 | - | Added second success story to the How YOU page. |
| September 28, 1999 | - | Added first success story to the How YOU Enhanced (Slightly Hacked) Your AP5T Rev 2.x/3.x Mobo To Run The AMD K6-2/K6-III CPUs page. |
| September 22, 1999 | - | AOpen has released AP5T BIOS v1.82. Improvements : Correct string of detected HDD if UDMA-66 HDD connected. |
| September 22, 1999 | - | Replaced How YOU Enhanced (Slightly Hacked) Your AP5T Rev 2.x/3.x Mobo To Run The AMD K6-2/K6-III CPUs guestbook with an email link. |
| August 23, 1999 | - | Added links to SETK6V2 and WCPUID utilities in How? page. |
| August 16, 1999 | - | Added AP5T Revision 2 info to How? page. |
| August 04, 1999 | - | Added How YOU Enhanced (Slightly Hacked) Your AP5T Rev 2.x/3.x Mobo To Run The AMD K6-2/K6-III CPUs page. |
| July 26, 1999 | - | Added Benchmarks page. |
| July 26, 1999 | - | Added Resistor-ed Jumper diagram for K6-III to How? page. |
| July 23, 1999 | - | Added Mouse Trap page. |
| July 22, 1999 | - | Improved Resistor-ed Jumper diagram on How? page. |
| July 22, 1999 | - | Added WCPUID screen captures to the How? page. |
| July 12, 1999 | - | Created The Enhanced AP5T Home Page. |
The AP5T-3.0 - A Very Different Beast
How YOU Enhanced
(Slightly Hacked) Your AP5T Rev 2.x/3.x Mobo To Run The AMD
K6-2/K6-III CPUs
Calling all fellow AP5T Enhancers!
E-Mail
(hackedmobo@yahoo.com) what you did
to enhance your AP5T mobo to me, and I'll put it on my homepage here, including your name and email address. If you
don't want your email address published, let me know. Please try
to be as accurate as possible, and give at least these details :-
(1) Exact AP5T revision - Example: 3.1.
(2) BIOS version.
(3) CPU type and speed - Example: AMD K6-III 400MHz.
(4) Bus Frequency and Clock Multiplier.
(5) Core voltage rework.
(6) BF2 rework for Revision 2.x mobos.

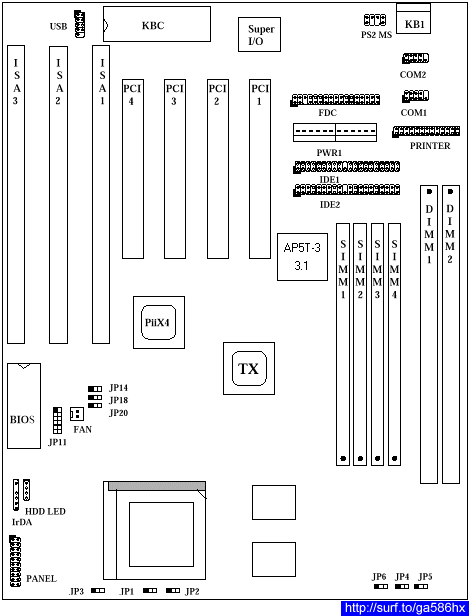

The AP5T Rev 3.1 is a motherboard made by AOpen. It is a 430TX board that officially supports up to the AMD K6 233 or Cyrix MX-PR266. It has a switching voltage regulator that can provide both linear and dual voltages. It supports clock multiplier of 1.5x to 5.5x, and bus frequency of 60MHz, 66MHz, 75MHz, and 83MHz. Here's the User Manual ap5t-3man.zip (412KB). It's in PDF format, so you'll need the Adobe Acrobat Free Reader.
After hacking my GA-586HX Rev 1.55 mobo, I wondered what other mobos could be modified in this way. Somehow it has become my new hobby to seek out old and obsolete mobos and try to breathe new life into them. ;^)
Email address
hackedmobo@yahoo.com
Web address
http://surf.to/ga586hx
http://go.to/hackedmobo
http://www.oocities.org/hackedmobo/index.html
This webpage is meant to describe in some detail the work I did to enhance my mobo. It is not meant be a user guide or a step-by-step how-to guide. Please use the information on this webpage at your own risk. I will not be held responsible in any way for any damages or costs resulting from its usage.
