Locking and Restricting the Registry in Windows XP Part II

Revised and expanded version

This article applies to: Windows 2000/XP/Server 2003

Click here to go back to Part I of this article.

Topics on this page:

[3] Regedit disabled: Solutions (continued from Part I)

[4] Don't forget about viruses

[5] Exe and other files not running after viral or Trojan infection: corrupt shell\open\command registry keys

[6] Operation cancelled due to Restrictions ***NEW***

Reference




3. Regedit disabled: Solutions (continued from Part I)



3.4. Xteq X-Setup

Download and run Xteq X-Setup, go to Security, Disabled Features, Regedit.exe Enabled. Tick the box Allow starting of RegEdit.EXE on the right and click Apply Changes (Fig. 1).

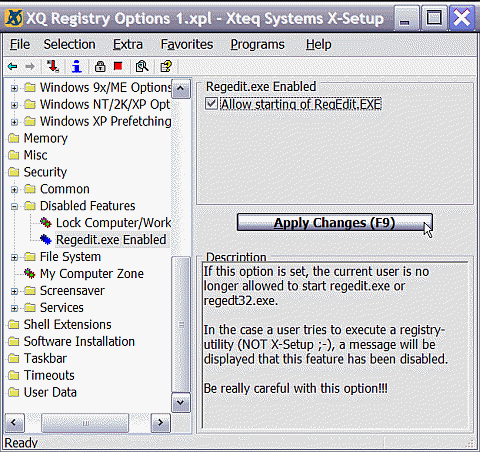

Xteq System XSetup: allow regedit.exe

Fig. 1. Xteq Systems X-Setup Registry Option



3.5. System Restore

System Restore (the whole system partition or system state) if you have restore points before it happened (kb 309340). Restoring the registry by booting in the Last Known Good Configuration would not work as it only restores the HKLM\System\CurrentControlSet key only (see: How to Restore the Registry).



3.6. Full backup restore

Restore from a full backup (using Automatic System Recovery (ASR) in Windows XP Professional or NTBackup only in Windows XP Home edition) or an image like Symantec Ghost if you have one made before the problem occurred.



3.7. VBScript

3.7.1.1. VBS from Doug Knox

Doug Knox has a VBS to lock and unlock the registry (it toggles between the two settings 0 and 1 but does not delete the policy key and if the key is absent it creates it). Hence I don't like it!

3.7.1.2. My own VBS

My version is simpler and it doesn't toggle (download here, unzip and run it; accept the warning from your anti-virus tool).

If your registry has a key value of 1 the script gives you the reading first and then rewrites it to 0. If it has a key value of 0 it does the same thus making no change and does not set it to 1. If the key is absent the script returns an error. In that case the problem lies elsewhere.



3.8. Installing INF file

Using the INF file is another way to edit the registry; it's not as powerful as VBS but for this purpose of deleting the culprit registry key it will do the job just fine. It is a text file and when written in a standard form, will use Windows' rundll32.exe to execute the Application Programming Interface (API) in Setupapi.dll in the background. A simple INF file is given below: copy the content in Notepad and save as unlock.inf. Right click it and choose Install.


[Version]
Signature="$CHICAGO$"

[DefaultInstall]
DelReg=Del.Settings

[Del.Settings]
HKCU,"Software\Microsoft\Windows\CurrentVersion\
Policies\System","DisableRegistryTools"




3.9. Third party registry editing tools

Other third party registry editors such as Lavasoft's RegHance can bypass the policy and therefore can open up the registry and import the unlock.reg file. I've not tried this but it is quite unnecessary when other simpler methods are available. I only include it here for the record. This is also a warning that administrators setting a restriction policy should not have a false sense of security.

If all the above and following methods fail to solve the problem, then it is likely to be a more widespread problem and you should remove all viruses and Trojans and do a repair installation with the Windows XP CD (KB 315341).



3.10. Other Methods

These include: Console Registry Tools (reg.exe), remote registry editing (on a network) and JScript (KB 322756).

The REG DELETE command to unlock the registry can be found in my Console Registry Tools article. It works in Windows XP Home Edition as it doesn't require the Group Policy Editor.



4. Don't forget about viruses

Of course it would be prudent to scan and remove all the viruses. If there is virus infection then system restore may not get rid of it and you should not use it.

After the clean up, check that the registry key is reset to 0 (fig. 2) or the DisableRegistryTools value name is absent altogether.

Regedit DisableRegistryTools (0)

Fig. 2. Regedit DisableRegistryTools key



5. Exe and other files not running after viral or Trojan infection: corrupt shell\open\command registry keys

This can happen after viral infection and may affect other exe files. Try running the exe file from within a batch file first or rename it to reg.com in a command. The shell\open\command registry keys are corrupt and needs to be restored.

If you can run regedit then restore this key (Fig. 3):

HKEY_CLASSES_ROOT\exefile\shell\open\command
Default
REG_SZ:"%1 "%*

(In the above key there is a space after 1 and the value data includes the " and * symbols.)

regedit HKCR exefile key

Fig. 3. Regedit HKCR exefile key



If other files such as *.bat, *.chm, *.cmd, *.ini, *.reg, *.scr and *.txt are not running, do the same for their keys but go to batfile (or chmfile and so on) in the registry instead.

***NEW***Symantec now has a tool to reset this (created 7 May 2004) which you can find here but I've not personally tested it (further information can be found in the Reference).

If you cannot run regedit then try the methods in the above section to fix it first. If all the above methods fail to solve the problem, then clean up all viruses and do a repair installation with the Windows XP CD (KB 315341).





6. Operations cancelled due to Restrictions

As briefly introduced in part I, this is another way to prevent regedit from opening by way of programme restriction. This can be done readily via a policy setting in Group Policy or Local Computer Policy, both accessed via the Group Policy Editor. It is also exploited by some viruses or scripts. This method can also be applied to other exe programs. Note that this only restricts programmes from being started in Windows Explorer and not by other means such as the command prompt unless the cmd.exe too is restricted.

Start, Run, gpedit.msc, go to:

User Configuration\Administrative Templates\System: Don't run specified Windows applications (fig. 4).

Don't run specified Windows applications

Fig. 4. Don't run specified Windows applications.



Double Click on this setting to open the Properties box. Click on Show... button (fig. 5).

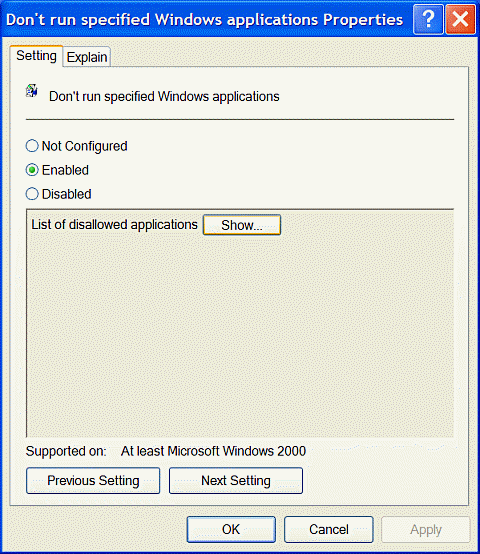

Don't run specified Windows applications Properties

Fig. 5. Don't run specified Windows applications Properties.



Reset this to allow regedit by choosing Not Configured or remove regedit.exe from the List of disallowed applications in Show Contents box. If there are others you wish to leave behind; you cannot set Enabled with no entries (fig. 6).

List of disallowed applications; regedit.exe

Fig. 6. List of disallowed applications: regedit.exe



If you have Windows XP Home edition, try to run regedit.com in Safe Mode if needed and check the corresponding registry entry:

HKCU\software\Microsoft\windows\
CurrentVersion\Policies\Explorer

disallowrun
REG_SZ: "regedit.exe"

Delete the disallowrun subkey. If regedit.com cannot be run, use HijackThis to delete the key.





Reference:

Windows XP Registry

KB 256986 Description of the Microsoft Windows Registry

KB 307545 How to Recover from a Corrupted Registry that Prevents Windows XP from Starting

KB 310426 HOW TO: Use the Windows XP and Windows Server 2003 Registry Editor Features

KB 309340 HOW TO: Use Backup to Restore Files and Folders on Your Computer in Windows XP

KB 310516 HOW TO: Add, Modify, or Delete Registry Keys and Values by Using a Registration Entries (.reg) File

KB 322756 HOW TO: Back Up, Edit, and Restore the Registry in Windows XP and Windows Server 2003

Technical Reference to the Windows 2000 Registry

Inside the Registry - Article from Windows NT Magazine

How to Restore the Registry

Honeycutt, Jerry, Microsoft Windows XP Registry Guide (Redmond: Microsoft Press, 2003)

Registry Restriction

KB 278839 Error Message: This Operation Has Been Cancelled Due to Restrictions in Effect on This Computer

Symantec

Tool to reset shell\open\command registry keys

VBS

article on VBS
