Chapter 1(I): WEATHER STUDIES



Weather & Climate



Composition & Structure of Atmosphere



ELEMENTS OF WEATHER

STUDYING WEATHER

  • Weather Instruments

  • Stevenson Screen

  • Synoptic Chart

QUIZ



WEATHER & CLIMATE

Weather

The state of the atmosphere at a particular place at a specific time or over a short time.



Climate

The average weather conditions over a period of at least 30 years.

INTRODUCTION ON ATMOSPHERE
Structure



COMPOSITION & STRUCTURE OF ATMOSPHERE

Layers of Earth's Atmosphere : 4 layers



LAYERS

Ionosphere / Thermosphere (80 - 480km)

Mesosphere (50 - 80km)

Stratosphere (16 - 50km)

Troposphere (0 - 16km)



The Atmosphere & Earth-Space Interface

- shows layers of the Earth's atmosphere with emphasis on ionized layers.



ELEMENTS OF WEATHER          [Back to Top]

I. TEMPERATURE

   Temperature is the degree of hotness or coldness of the atmosphere.

   It is measured in C or F.



Factors Affecting Temperature:

  • Latitude

  • Altitude

  • Distance From The Sea

  • Ocean Currents

  • Humidity & Cloud Cover

  • Aspect (Microclimatic factor)

  • Types of Land Surfaces



Instrument Used For Measuring Temperature

  • Maximum & Minimum Thermometer

Maximum thermometer (mercury)



Minimum thermometer (alcohol)

  • Six's Thermometer



Calculation of Temperature

  1. Diurnal (daily) range of temperature:

Diurnal temperature range = maximum temperature - minimum temperature
  1. Average (mean) daily temperature:

Average daily temperature

= maximum temperature + minimum temperature

2



Average daily temperature = sum of temperatures for 24 hours

                          24

  1. Mean monthly temperature:

Average mean monthly temperature

= sum of mean daily temperatures for the month

             total number of days in that month

  1. Mean annual temperature:

Mean annual temperature

= sum of mean monthly temperatures for 12mths

total number of months







II. HUMIDITY



Humidity is the amount of water vapour in the atmosphere. It can be measured in terms of relative humidity, in %.



Terms & Definitions

  • Saturation point - the point where atmosphere has reached its maximum capacity to hold water (can no longer hold additional water vapour). The air is saturated (moist).

  • Dew point temperature - the temperature at which saturation takes place.

  • Absolute (specific) Humidity - the actual amount of water vapour in a given volume of air (g/m) at a given temperature.

  • Relative Humidity - the ratio of the actual amount of water vapour in the air compared with the maximum amount of water vapour that a unit of air can hold at that temperature.

Instrument Used For Measuring Relative Humidity

  • Hygrometer (wet & dry bulb thermometer)



Dry bulb thermometer



Wet bulb thermometer



III. CLOUDS

Clouds are formed when air above the earth's surface is cooled below its dew point.



FOUR main groups of clouds, based on their height, form and appearance:



(I) High Clouds (6000 - 12 000 m above sea level)

 (II) Medium Clouds (2000 - 6000m)

 (III) Low Clouds (below 2000m)

(IV) Clouds With Great Vertical Extent

(stretching from 6000 - 9000m)



IV. PRECIPITATION (RAIN)

Precipitation refers to the moisture that falls from the clouds to the ground.



Types of Rainfall:

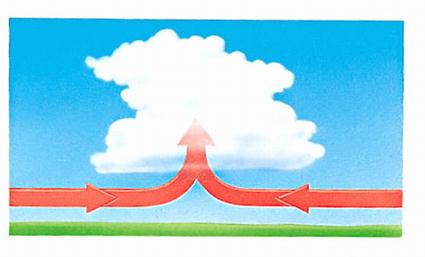

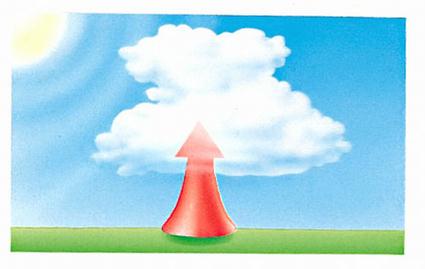

  1. Convectional Rain

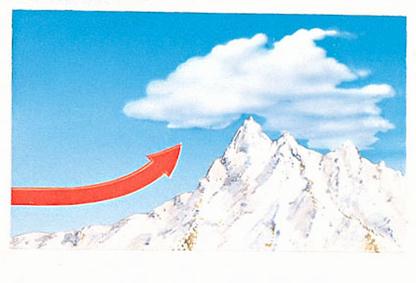

  1. Relief / Orographic Rain



  1. Frontal Rain

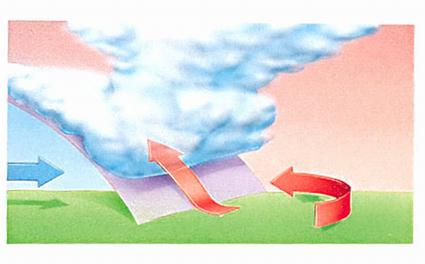

  • Warm Front

  • Cold Front







   Instrument Used For Measuring Rainfall

  • Rain gauge

  • Tipping bucket



   Calculation Of Rainfall

  1. Total daily rainfall

  1. Total monthly rainfall:

Total monthly rainfall = sum of total rainfall for the month

  1. Total annual rainfall:

Total annual rainfall = sum of total monthly rainfall for 12 months

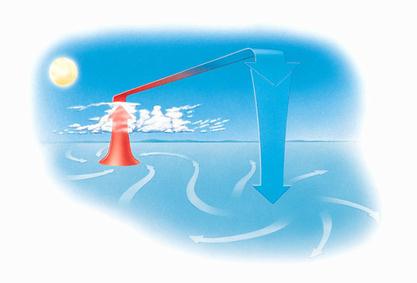

V. AIR PRESSURE

Air pressure is the weight of air exerted on any exposed surface. It is expressed in millibars (mb).



Factors Affecting Air Pressure:

  • Temperature

  • Altitude

Instrument Used For Measuring Pressure

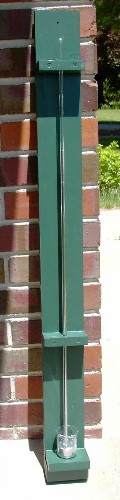

Mercury Barometer

How a mercury barometer works


Taking pressure readings




Aneroid Barometer

How an aneroid barometer works




Aneroid Barograph


How an aneroid barograph works




Read more on air pressure: http://www.usatoday.com/weather/wbarocx.htm









VI. WINDS



Wind is air in motion.



Air moves from high pressure to low pressure areas. These movements give rise to winds.





Factors Affecting Wind:

  • The differences in air pressure

  • Friction

  • Earth's Rotation (Cariolis Effect)
    Animation: Cariolis effect

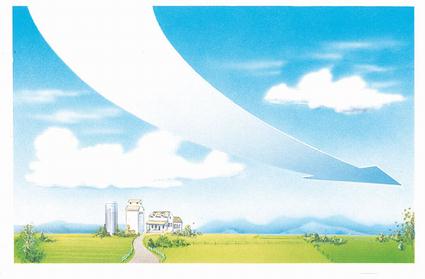

Cariolis Force





Types of Wind/Wind Systems:

  1. Local Winds (small scale)

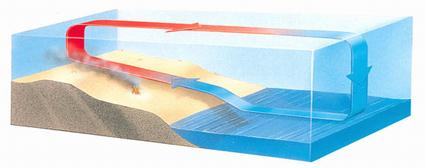

  • Sea Breeze (Day)

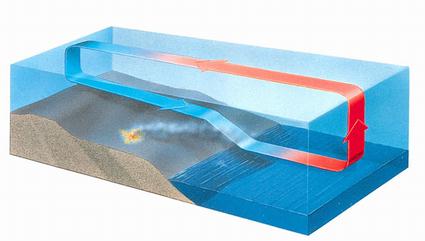

  • Land Breeze (Night)

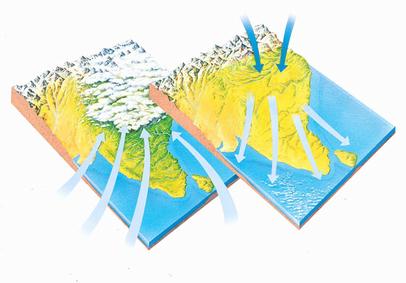

  1. Regional Winds (large scale)

  • Northeast Monsoon Winds (December & January)

  • Southwest Monsoon Winds (June& July)

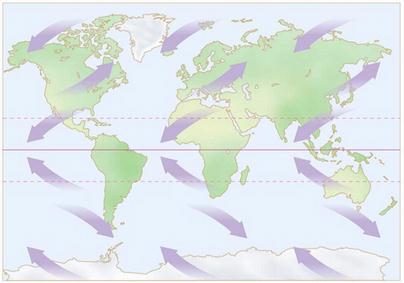

  1. Planetary Winds (global scale)

  • Trade winds

  • Westerlies & Easterlies



Planetary Pressure System

- give rise to planetary winds because winds blow from high pressure to low pressure area to replace the air that has risen.

  • Equatorial low pressure belt (doldrums)

  • Polar high-pressure belts

  • Sub-tropical high-pressure belts (horse latitudes)

  • Sub-polar low-pressure belts











 Wind Measurement:

  • Wind vane - measures wind direction

  • Anemometer - measures wind speed

  • Wind rose

  • Beaufort Scale

  • Wind sock



STUDYING WEATHER AT METEOROLOGICAL STATION

[Back to Top]



A Meteorological station uses weather instruments to collect and record information on the weather elements so that information about the weather is available and weather forecasts can be made.

  1. WEATHER INSTRUMENTS

INSTRUMENT

SITING

Six's Thermometer

Hygrometer

Stevenson Screen.

Rain gauge

Wind vane

Anemometer

open grass field, situated away from trees & buildings.



  1. STEVENSON SCREEN

Stevenson Screen

  • a wooden box about 120cm above ground.

  • contains a Hygrometer and Six's Thermometer.

  • painted white to reflect heat.

  • four louvred sides to allow free flow of air.

  • double layered roof to prevent direct heat of sun from reaching inside of screen.

  • located over an open grass field and not on concrete ground, as concrete ground gets heated faster & may affect temperature readings.


  1. WEATHER FORECASTING

 Synoptic Chart  - shows the weather conditions at different weather stations. The different weather elements are represented by different symbols.

Weather Symbols
