Antenna's

Omnidirectional Antennas

"Omnidirectional" is generic term for an antenna that radiates equally well in all directions.

There are several antennas that are considered omnidirectional.




Figure 1 - A ground plane antenna
1/2 Wavelength

Vertical

Most folks lump all vertical omnidirectional antennas into the same category and call them "Ground Planes". A ground plane antenna is actually an antenna similar to the vertical dipole. Shown in figure 1, you can see the hollow tubing is now instead brought out at a 45 degree angle (and split into 3 sections) out from where it is on the vertical dipole. These rods are usually called "radials". This type of antenna is really not a very high gain antenna.

l

5/8 Wavelength Vertical

A higher gain antenna than the 1/2 vertical antenna is the 5/8 vertical antenna. As we can figure from the 5/8 wavelength rating the antenna is about 22 feet long (5/8 of 36 feet). This antenna is similar to the 1/2, it needs a matching device at the base to match it to the coax, it cannot be attached directly. This antenna has about 1.2 db gain over the dipole antenna and 1/2 vertical. Figure 2 shows both a 1/2 Wave vertical and a 5/8 Wave vertical antenna. It achieves this extra gain by concentrating its pattern out more at right angles from the antenna instead of wasting signal at high angles, see figure 3.

Figure 2 - A 1/2 Wave vertical is on the left the 5/8 Wave vertical is on the right. A matching device is required to match the high impedance feed point of these two antennas to the 50 Ohm coax. The 5/8 Wave vertical has 1.2db more gain over the 1/2 Wave vertical.



Directional Antennas

An antenna is known as "directional" if its pattern strongly favours a certain direction. A directional works by concentrating the signal in one direction at the expense of other directions.





The Yagi Beam

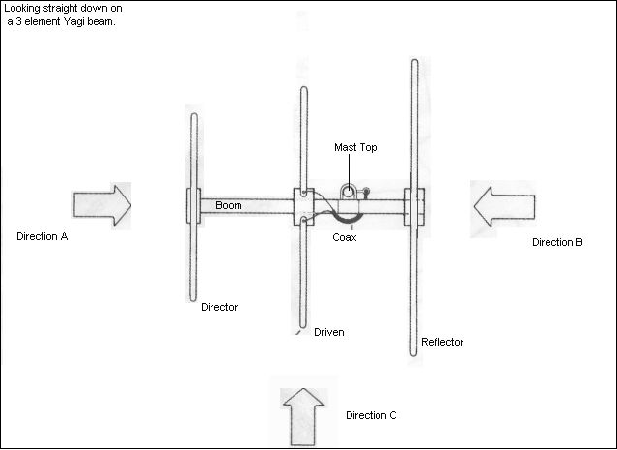

The yagi is very simple. The basic yagi consists of three elements, as shown in figure 1. The middle element is an antenna you are already familiar with, the simple 1/2 wave dipole antenna. This element is generically called the "driven element". This is because this is the only element that is connected directly to the radio, it actually drives the whole antenna. The other two outer elements are generically called parasitic elements. One is called the Reflector and the other one is called the director element. These elements get their name from the job they do. The reflector reflects RF energy, the director directs RF energy. There is no magic circuit located inside the elements, they are simply straight rods! The reflector element is typically 5 % longer than the driven element and the director is typically 5 % shorted than the driven element. How it works. See figure 1. As signal A comes in it strikes all three elements hence generates a current on each element., the signals are re-radiated by the director and reflector and arrive at the driven element in-phase with one another (the two re-radiated signals and the original signal). This basically means, the signals reinforce each other...and make the incoming signal much stronger coming from direction A.

When the signal comes from direction B and C, the same thing happens, except the signals arrive at the driven element out-of-phase with one another which simply means they cancel each other out, significantly reducing signals from direction B and C.

This very useful effect (signals arriving in-phase/out-of-phase) is caused by the special spacing and length of the director and reflector element in relation to the driven element.







Listed below is the criteria for a 14 element yagi beam.

(1) With folded dipole driven element gain bandwidth is >4 % @ - 1db points.

(2) The driven element length is measured straight from tip to tip.

(3) You must work to an accuracy of 1.33 mm (for element centering 0.6mm ).



Yagi-Uda construction details

Frequency

477 MHz

Wavelength

0.628 meters

Element number

14 (pass through metal boom)

Element diameter

10.4

Boom diameter

25 mm

Boom total length

2.694 meters

Boom wavelength

3.650

Gain predicted

13.6 dBD

Beam width horizontal

29 degrees

Beam width vertical

30 degrees

Stacking =:=

1.21 meters

Stacking _._ _._

1.26



Element

Length

Element Protrudes



Progressive Reflector



Distance from end of boom

Reflector

315.5

145.2

0

200.0

Driven

294.9

134.9

150.8

350.8

Director # 1

277.5

126.2

198.0

398.0

Director # 2

273.4

124.2

311.1

511.1

Director # 3

296.6

122.3

446.2

646.2

Director # 4

266.2

120.6

603.4

803.4

Director # 5

262.7

118.8

779.3

979.3

Director # 6

259.6

117.3

967.9

1167.9

Director # 7

257.2

116.1

1165.9

1265.9

Director # 8

254.8

114.9

1373.3

1573.3

Director # 9

252.9

113.9

1590.1

1790.1

Director # 10

251.3

113.1

1816.3

2016.3

Director # 11

249.8

112.4

2052.0

2252.0

Director # 12

248.4

111.7

2294.0

2494.0



Reflector -

Driven

150.8

Driven -

DIR 1

47.1

DIR 1 -

DIR 2

113.1

DIR 2 -

DIR 3

135.1

DIR 3 -

DIR 4

157.1

DIR 4 -

DIR 5

176.0

DIR 5 -

DIR 6

188.5

DIR 6 -

DIR 7

198.0

DIR 7 -

DIR 8

207.4

DIR 8 -

DIR 9

216.8

DIR 9 -

DIR 10

226.3

DIR 10 -

DIR 11

235.7

DIR 11 -

DIR 12

242.0

DIR 12 -

DIR 13

0.0

DIR 13 -

DIR 14

0.0

DIR 14 -

DIR 12

ALL

235.7
