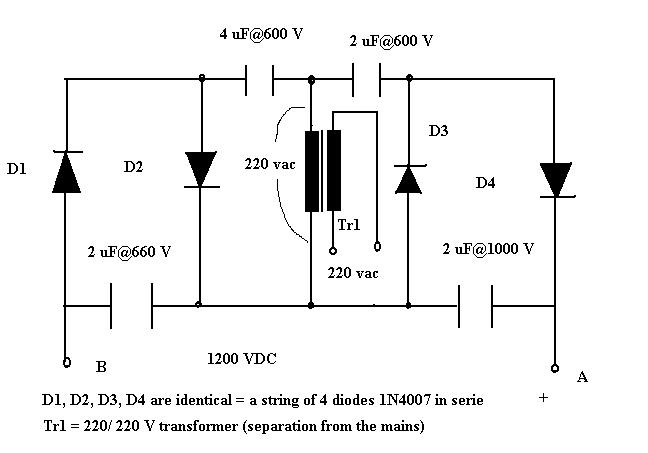

SECOND STEP; ELECTRIC SCHEMA OF THE MULTIPLIER
BACK TO VTTC PAGE

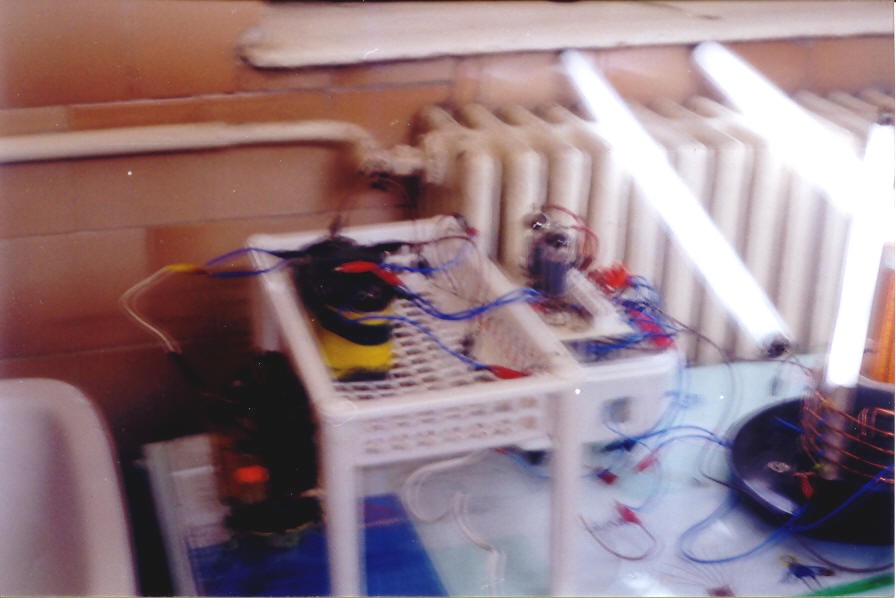

In the initial schema the primary cap was changed. i am using now a polietilene cap 2.2 nF @ 2000 V. the rest of the schema remains identical. Shorting the resistors Rg from the grid 2 circuit the oscillator will not work.
This multiplier give me approx 1200 volts DC. More voltage = great results.
