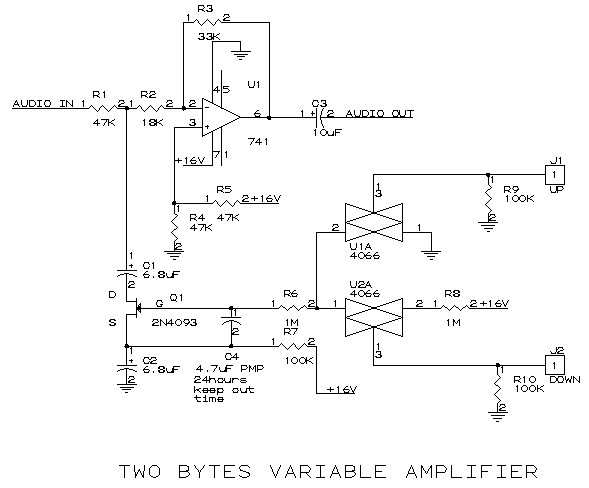

A few years ago I had to repair a stereo, it was bad a digital volume control made by an unknown producer and no chance to purchase that from any distributor. I had to made a full replaceable circuit supplied from one positive tension. First choice was using a FET as resistor controlled but I had only n-channel FET (this need a negative potential for polarization) . After some think look what I had done:
FET acts like a resistor controlled ( this works ok
only when Uds is very small ). C1 and C2 maintained a galvanic isolation
between dc polarization and ac signal. These capacitors are chosen with a
small impedance for signal. C4 is a hold capacitor, this must have a very
little leakage current.
C4 is charged through R7 ,R6 and cmos switch U1, when
up button (connected to +16V) is pressed and discharged through R8 and cmos
switch U2, when down button (connected to +16V) is pressed. Volume is changed
with a variation give by time
t = R8xC4 or t = R6xC4 ( R7 can be considered
negligible ). After volume is set, with a good C4 tantalum capacitor, it
remains the same more than 4 hours. With a polyester or PMP capacitor, 24
hours of volume constancy can be achieved.
It's only another solution...
