| Military "HUMMER" Wheels on a YJ? |

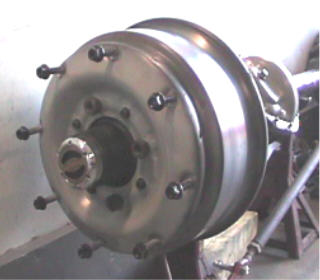

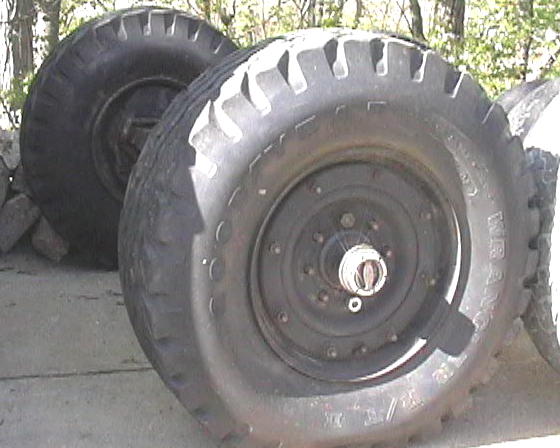

| below is the initial test fitting on a 8-lug 3/4ton axle i got from the front of a Jeep J-20 pickup, it clears except for the tierods, will us Hi-Steer arms and cut the knuckles off or just use wide wheels spacers. |
| these are 16.5 x 8.25" 2 piece steel wheels, with alot of backspacing also they are very heavy. |

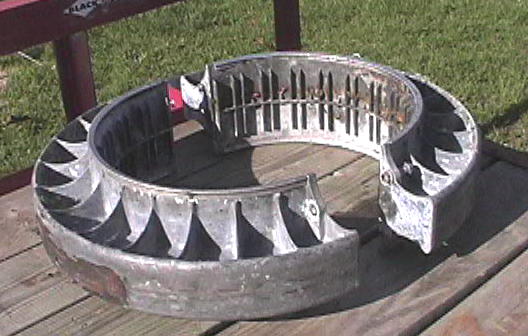

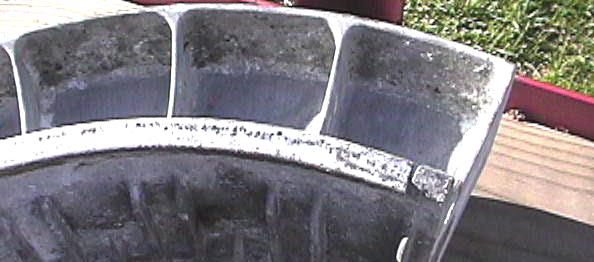

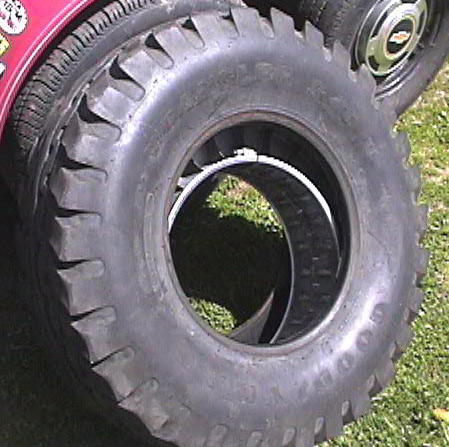

| 3 Left pics: top: this is the run-flat/ beadlock that is inside the tire, (it's installed 1/2 at a time and then bolted together. middle: close-up of area that holds tire to bead. bottom: 2 halves bolted together after installed in tire. |
 |
 |
 |
 |

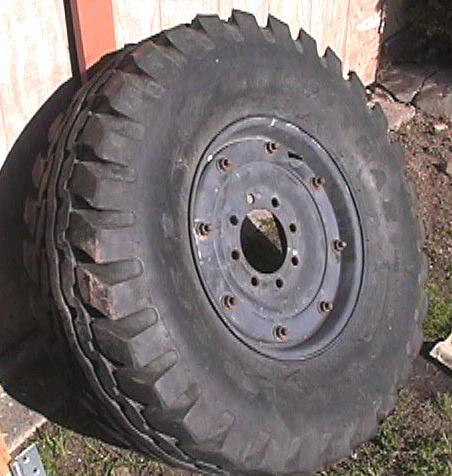

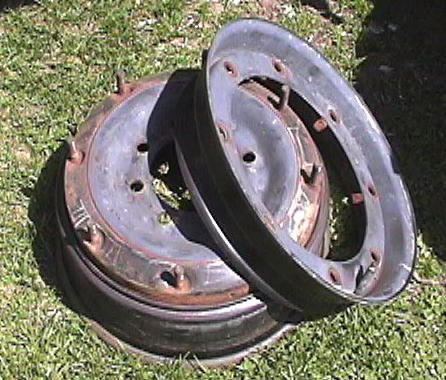

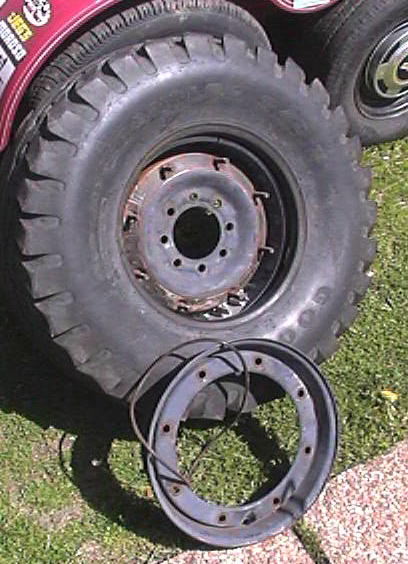

| 3 Right pics: top: assembles wheel middle: outer ring unbolted bottom: both halve of steel wheel removed |
|
 |

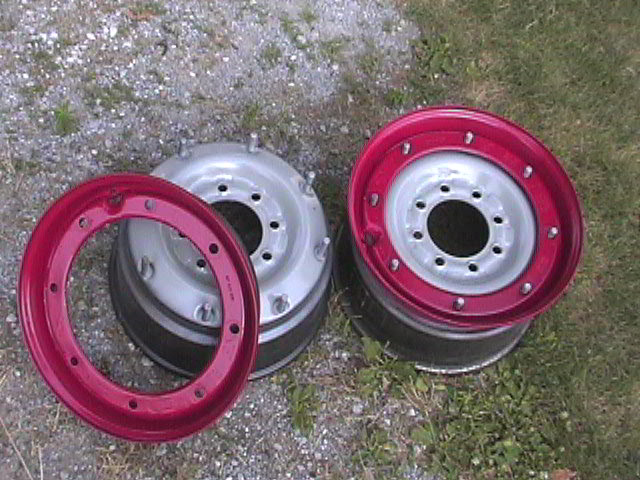

| i decided to paint them to match my YJ, red rings and grey middles |
 |

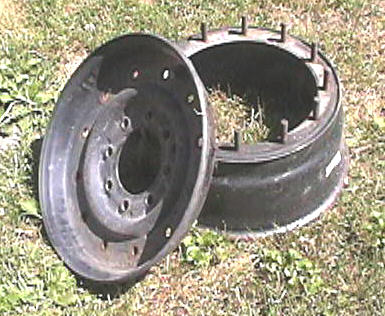

| below: my 5th (spare) wheel, it's different notice the 16 bolts instead of 8 |
| back to 3/4tonYJ's mainpage |
 |
 |
 |

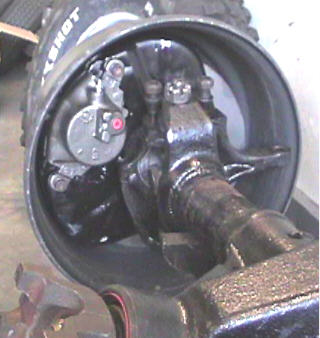

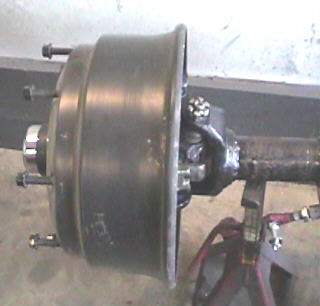

| Below: 3 pictures with the inner wheel temparary installed using 3/4" of washers, it still contacts tierod-ends. thinking about gettin some 1" spacers to use, still thinking on this one. |
 |
 |

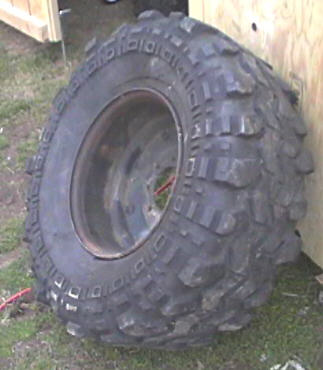

| left/right got some used 35x15.5x16.5 TSL SX's all mounted up with the beadlock runflats installed. just need to put on the YJ :) |
 |
 |

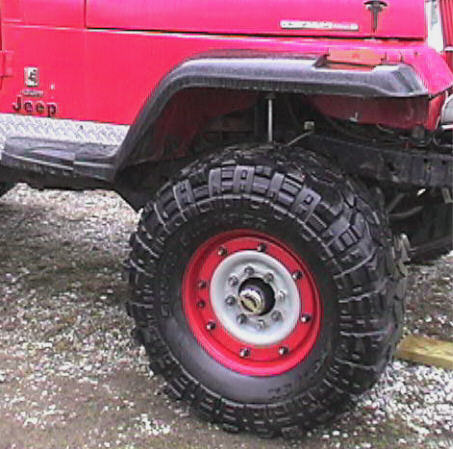

| they just won't bolt on,,,,,, i decided to go with these 1 1/2" spacers only on the front axle the rear had clearance |
 |
 |
| this is the steel 1.5" spacer bolted on, it gives about 3/16" clearance for the tierod :) the rear fit fine without spacers, (on my full width Dodge dana 60) so now my front track is about 3"s wider than the rear...... |
