In order to operate the new transceiver, I needed a power supply. The details are described below.
Soon, I'll add the details of my new antenna tuner, complete with it's simple SWR meter, and a tune-up aid which helps when using the manual antenna tuner.
And also, I'll describe how I connected a really cheap computer microphone headset to the KN-Q7.
Disclaimer: I have no association whatsoever with either FutureTech or BA6BF
In short, I wanted a simple power supply which I could dedicate to this new transceiver.
I started out building a lightweight switched-mode power supply (SMPS). Elsewhere on my website, you’ll see that I have some experience at modifying those sorts of power supplies. A SMPS is ideal to take on holiday because they are so light. However, they can generate a lot of RF noise. And that’s proved to be a problem with the one I am currently working on.
While I take a bit of time to sort that problem out, I decided to quickly build a simple transformer power supply. This power supply design is described here.
Fortunately, I had a transformer in my box of bits which I had salvaged a year or two back from an old stereo/CD audio system. These consumer products seem to have a lifetime shorter than a mosquito! The transformer looked big enough, and I measured its secondary voltage at 19VAC (no load). A bit high, but under load, it dropped to about 16VAC. That would be OK. Another nice thing was that I could fit it quite easily into the original charger’s plastic box.
Regulator
The regulator section of the power supply is a slight variation on the standard regulator design shown in the datasheets for the LM7812 12V 1A regulator. To increase the current capability of the regulator, the datasheet shows a circuit using a high power PNP transistor wrapping around the 7812.
If the circuit is inverted, and a -12V regulator (LM7912) is used instead, there are two advantages: I could use a common cheap NPN power transistor such as the 2N3055 shown here, and the transistor can be bolted directly to a metal chassis without the need for insulating washers and other costly hardware normally required to keep the collector/case of the high power device isolated from the heatsink.
NOTE!! The connections for the LM7912 are NOT the same as those for the LM7812!!
Other Components
I’ve used a 10,000uF smoothing capacitor in this power supply. The usual design ‘rule of thumb’ is 2,500uF per amp, so 4700uF would be OK. However, more is better, and besides, I had this larger capacitor on my shelf, along with all of the other parts. All told, this power supply probably cost me less than $US2! And that was because I didn’t have the LM7912 in my parts bin.
The audio system transformer has a copper band around the outside of the windings, and that effectively prevents the induced hum problem noted with the cheap charger transformer.
The LEDs were in the original charger, and the charger’s PCB, complete with LEDs and front panel which matched the LEDs, was reused. It was arranged in a very similar manner to that shown in the schematic. I chose not to change this, although I think there is some benefit from relocating the red LED to the actual output of the power supply.
As it stands, with my transformer, the green LED acts as a current indicator. Why? Because, on current peaks, the DC input to the regulator falls below the voltage required to keep the combination of the 12V zener diode and 2V green LED fully conducting. It dims nicely at about 2A, and goes out at about 2.5A, giving me effectively a cheap current meter!
I also had to add a higher rated bridge rectifier to suit my new transformer, using diodes also salvaged from older equipment, and I added the slow blow fuse to the original charger PCB in place of the original, unwanted, glass-encapulated thermal breaker. All quite easy to do.
Operation
In service, the power supply worked really well. It’s easily capable of powering the KN-Q7 QRP transceiver. The heatsink/metalwork is probably too small for heavy duty ‘rag-chewing’, i.e. calls with extended transmissions, or many long minutes of talking on the KN-Q7, but it seems fine for my typical two to four minutes of chat followed by a similar period of listening to the other guy. If you plan to talk longer than this, then use a metal box for the power supply and bolt the 2N3055 (or similar) to the chassis.

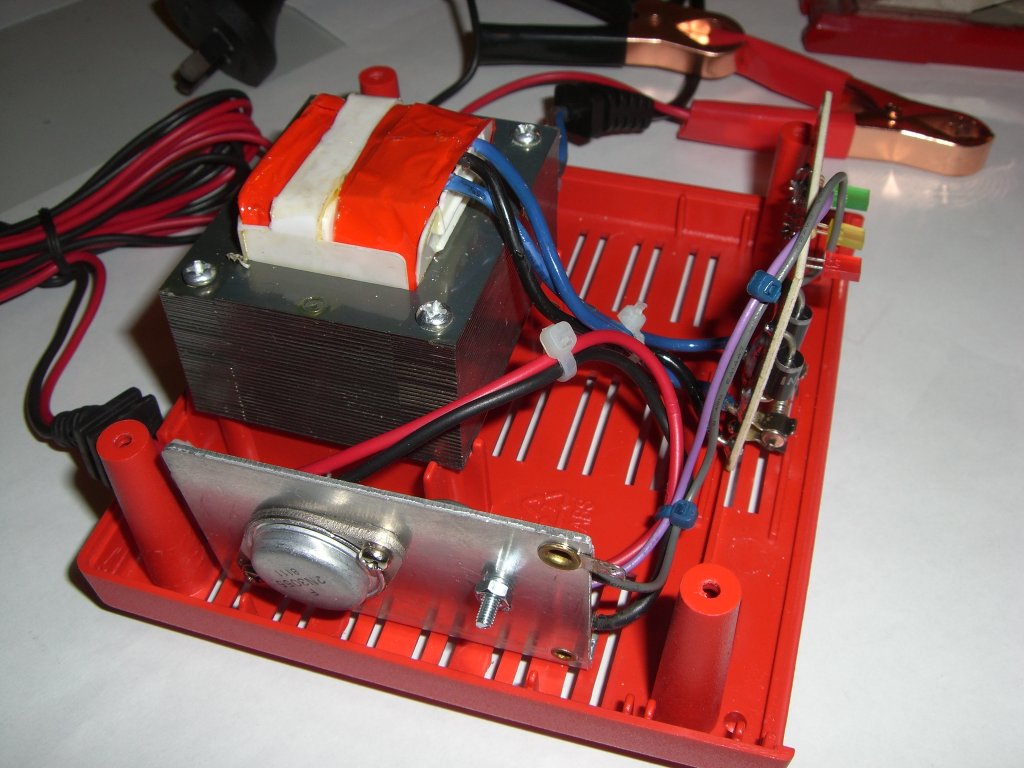

Here are some photos of my power supply.
A standard PC headset used for Skype and similar services usually features a pair of stereo headphones, typically 32 ohms impedance, and a boom microphone. All of the ones I tested were electret types.

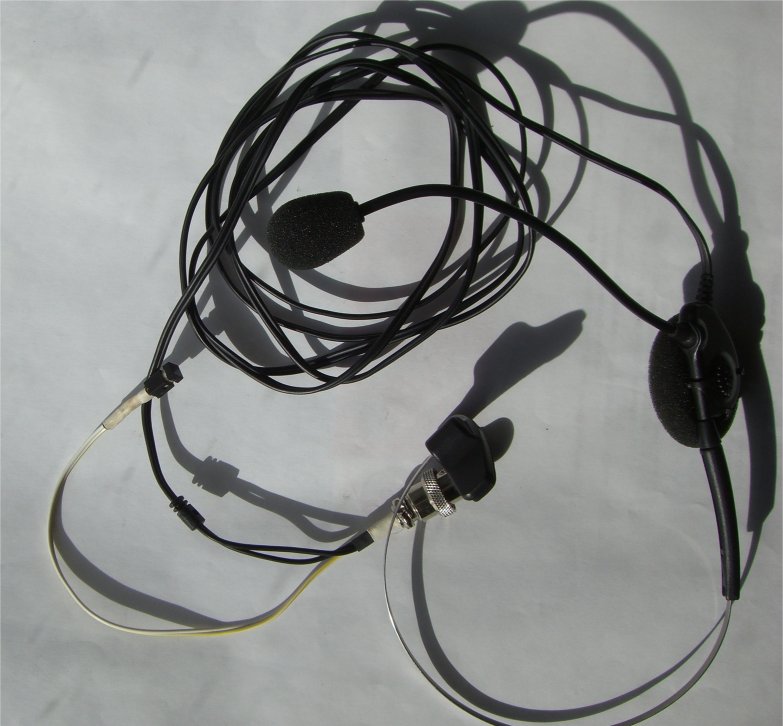

I had one in my workshop with only one headphone (to allow you to still hear people talking to you without having to remove the headset) and that was the one I used here. I think it cost me perhaps $US2, and it's pictured to the right. These are often very cheap now days.
Although the microphone connects using a stereo connector, in fact the microphone is simply connected in common to both left and right hand connections.
I removed the headphone and microphone stereo phono jacks from the headset. The microphone wiring was connected directly to the microphone pin and ground pin on the front panel microphone connector of the KN-Q7.
To allow me to connect the headphone connections to the speaker output of the KN-Q7, I needed to add a wire to connect the speaker output of the radio to a spare pin on the same front panel connector. Easy! I added a short wire from the top of the 10 ohm resistor (R12 on my schematic of the radio, which you can download from here) and that's all that was required. (It can easily be removed if you want to restore your KN-Q7 to original)
The wire is shown added in the photo below.
The last step was to add a pushbutton for Push To Talk (PTT) It's the white wire and button you can see in the photo to the right.
