NAZI GERMANY:
FIGHTERS
TRAINERS
BOMBERS
TRANSPORTS

hs129

HENSCHEL Hs 129

TYPE; ATTACK
ENGINES; TWO GNOME-RHONE 14 CYLINDER RADIAL AIR COOLED ENGINES,
700 HP EACH.
WINGSPAN; 46 FT. 7 IN. / LENGTH; 32 FT. 0 IN. / HEIGHTH; 10 FT. 8 IN.
WEIGHT; 11,547 LB.
MAXIMUM SPEED; 253 MPH / CEILING; 29,530 FT / RANGE; 428 MILES
ARMAMENT; 6 MACHINE GUNS / 2 X 20MM CANNON / 1 X 30MM CANNON
CREW; 1.
YEAR; 1942

stuka

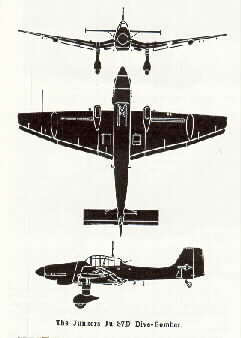

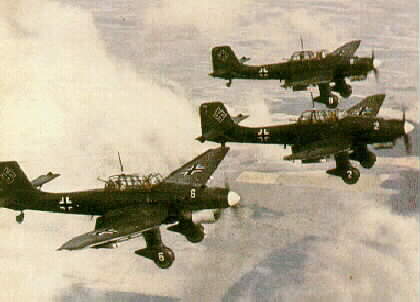

JUNKERS Ju. 87

THE STUKA

TYPE; DIVE BOMBER.
ENGINES; ONE JUNKERS JUMO 211J-1 TWELVE CYLINDER V LIQUID COOLED,
1,400 HP.
WINGSPAN; 45 FT. 3 IN./ LENGTH; 37 FT. 9 IN. / HEIGHTH; 12 FT. 9 IN.
WEIGHT; 12,880 LB.
MAXIMUM SPEED; 255 MPH / CEILING; 23,905 FT / RANGE; 954 MILES.
ARMAMENT; FOUR MACHINE GUNS.
CREW; 2.
YEAR; 1938.

do17

DORNIER Do.17

BOMBER.
ENGINES; TWO BMW BRAMO 323P 9 CYLINDER RADIAL AIR COOLED ENGINES, 1,000 HP EACH.
WINGSPAN; 59 FT. 0 IN. / LENGTH; 51 FT. 10 IN. / HEIGHTH; 14 FT. 11.5 IN. WEIGHT; 18,930 LB.
MAXIMUM SPEED; 255 MPH / CEILING; 26,900 FT / RANGE; 721 MILES.
ARMAMENT; 6 MACHINE GUNS / 2,200 LBS BOMBS.
CREW; 4.
YEAR; 1939.

234

ARADO Ar.234

TYPE; BOMBER.
ENGINES; TWO JUNKERS JUMO 004B, 1,980 LBs THRUST
WINGSPAN; 46 FT. 3.5 IN./ LENGTH; 41 FT. 5.5 IN. / HEIGHTH; 14 FT. 1 IN.
WEIGHT; 18,541 LB.
MAXIMUM SPEED; 461 MPH / CEILING; 32,810 FT / RANGE; 1,103 MILES.
ARMAMENT; TWO 20MM CANNON, 3,300 LBs BOMBS.
CREW; 1.
YEAR; 1944.

fi156

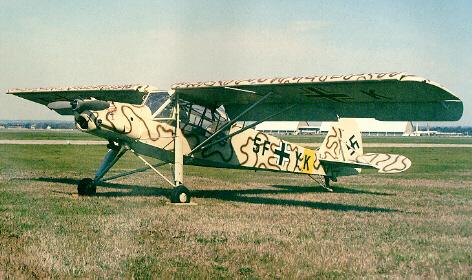

FIESELER Fi. 156

RECONNAISSANCE
ENGINES; ONE ARGUS AS 10C-3, 8 CYLINDER V AIR COOLED ENGINE,
240 HP EACH.
WINGSPAN; 46 FT. 9 IN. / LENGTH; 32 FT. 6 IN. / HEIGHTH; 10 FT. 0 IN.
WEIGHT; 2,920 LB.
MAXIMUM SPEED; 109 MPH / CEILING; 15,090 FT / RANGE; 240 MILES
ARMAMENT; 1 MACHINE GUN
CREW;2
YEAR; 1939.

200

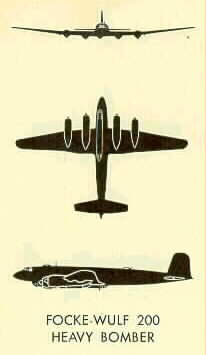

FOCKE WULF Fw.200

TYPE; RECONNAISSANCE BOMBER.
ENGINES; FOUR BMW 323 R-2 NINE-CYLINDER RADIAL AIR-COOLED ENGINES,
940 HP EACH.
WINGSPAN; 108 FT. 3 IN./ LENGTH; 78 FT. 3 IN. / HEIGHTH; 23 FT.
WIEGHT; 50,000 LB
MAXIMUM SPEED; 240 MPH / CEILING; 19,000 FT / RANGE; 2,200 MILES
ARMAMENT; ONE 20mm CANNON / 4 TO 7 MACHINE GUNS / 2,755 LBS BOMBS.
CREW;5 TO 8.
YEAR; 1940.

262

MESSERSCHMITT Me.262

TYPE; FIGHTER.
ENGINES; TWO JUNKERS JUMO 004B-1 JET ENGINES,
1,980 POUNDS OF THRUST EACH.
WINGSPAN; 40FT. 11.5./ LENGTH; 34FT. 9.5 IN/ HEIGHTH; 12FT. 7 IN.
WEIGHT; 14,101 LB.
MAXIMUM SPEED; 540 MPH / CEILING; 37,565FT / RANGE; 652MILES.
ARMAMENT; 4X 30MM CANNON.
CREW; 1.
YEAR; 1944.

ta152

FOCKE WULF Ta. 152

TYPE; HIGH ALTITUDE FIGHTER.
ENGINES; ONE JUNKERS JUMO 312E-3 TWELVE CYLINDER V LIQUID COOLED,
1,750 HP.
WINGSPAN; 47FT. 4.5 IN./ LENGTH; 35 FT. 2 IN. / HEIGHTH; 11 FT.
WEIGHT; 10,472 LB.
MAXIMUM SPEED; 472 MPH / CEILING; 48,550 FT / RANGE; 755MILES.
ARMAMENT; TWO 20 MM CANNON, ONE 30 MM CANNON.
CREW; ONE.
YEAR; 1945.

ME410

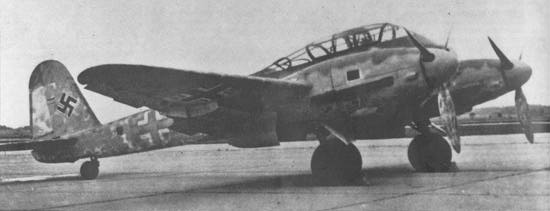

MESSERSCHMITT Me. 410

TYPE; FIGHTER BOMBER.
ENGINES; TWO DAIMLER BENZ DB603 TWELVE CYLINDER V LIQUID COOLED,
1,750 HP EACH.
WINGSPAN; 53FT. 8IN. / LENGTH; 40 FT. 11.5 IN. / HEIGHTH; 14 FT.
WEIGHT; 21,276 LB.
MAXIMUM SPEED; 388 MPH / CEILING; 22,965 FT / RANGE; 1,050 MILES.
ARMAMENT; FOUR MACHINE GUNS, TWO 20MM CANNON / 2,205 LBS BOMBS.
CREW; TWO.
YEAR; 1943.

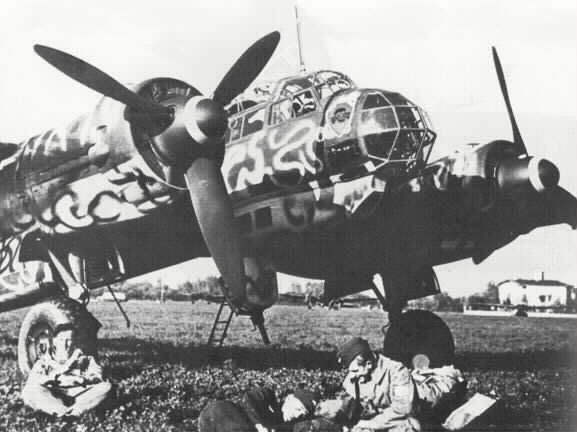

JUNKERS JU 88

TYPE; BOMBER
ENGINES; TWO JUNKERS JUMO 211B, 12 CYLINDER V, LIQUID COOLED,
1200 HP EACH
WINGSPAN; 60 FT. 3 IN./ LENGTH; 47 FT. 1 IN. / HEIGHTH; 17 FT. 6 IN.
WEIGHT; 22,840 LB
MAXIMUM SPEED; 280 MPH / CEILING; 26,250 FT / RANGE; 1,056 MILES
ARMAMENT; THREE MACHINE GUNS / 4,000 LBS BOMBS
CREW; 4
YEAR; 1939.

352

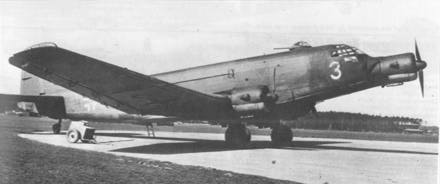

JUNKERS JU 352

TYPE; TRANSPORT
ENGINES; THREE BMW 323R-2, NINE CYLINDER RADIAL AIR COOLED,
1,000 HP EACH.
WINGSPAN; 112 FT. 3 IN./ LENGTH; 80FT. 8.5 IN. / HEIGHTH; 18 FT. 10 IN.
WIEGHT; 43,000 LB. LOADED.
MAXIMUM SPEED; 230 MPH / CEILING; 19,685 FT. / RANGE; 1,860 MILES.
ARMAMENT; ONE 20 MM CANNON .
CREW; 3-4.
YEAR; 1944.

188

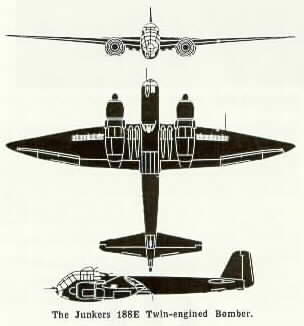

JUNKERS Ju. 188

BOMBER.
ENGINES; TWO BMW 801D-2 , 14 CYLINDER RADIAL AIRCOOLED ENGINES,
1,700 HP EACH.
WINGSPAN; 72 FT. 2 IN./ LENGTH; 49 FT. 0 IN. / HEIGHTH; 14 FT. 7 IN.
WEIGHT; 31,989 LB.
MAXIMUM SPEED; 310 MPH / CEILING; 30,665 FT / RANGE; 1,210 MILES.
ARMAMENT; 4 MACHINE GUNS / 1 20MM CANNON / 6,614 LBS BOMBS.
CREW; 4.
YEAR; 1943.

335

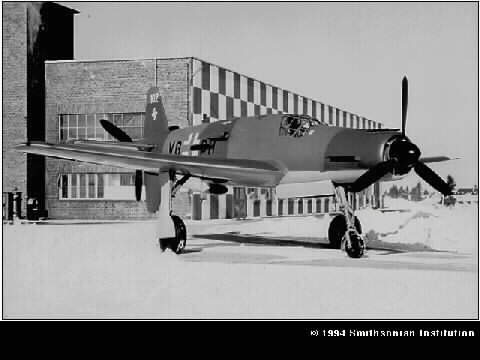

DORNIER Do. 335

TYPE; FIGHTER.
ENGINES; TWO DAIMLER BENZ DB 603E 12 CYLINDER V LIQUID COOLED,
1,800 HP EACH.
WINGSPAN; 45FT. 3 IN./ LENGTH; 45 FT. 5 IN. / HEIGHTH; 16 FT. 5 IN.
WEIGHT; 21,160 LB.
MAXIMUM SPEED; 474 MPH / CEILING; 37,400FT / RANGE; 1,280MILES.
ARMAMENT; 2 MACHINE GUNS, ONE 30 MM CANNON.
CREW; 1.
YEAR; 1944.

111

HEINKEL He.111

TYPE; BOMBER.
ENGINES; TWO JUNKERS JUMO 211A-3 12 CYLINDER V LIQUID COOLED ENGINES,
1,100 HP EACH.
WINGSPAN; 74 FT. 1 IN. / LENGTH; 53 FT. 9 IN. / HEIGHTH; 13 FT. 1 IN.
WEIGHT; 30,865 LB.
MAXIMUM SPEED; 252 MPH / CEILING; 27,900 FT / RANGE; 1,280 MILES.
ARMAMENT; 6 MACHINE GUNS / 5,500 LBS BOMBS.
CREW; 5.
YEAR; 1939.

109

MESSERSCHMITT Me. 109

FIGHTER.
ENGINES; ONE DAIMLER BENZ DB 605-A TWELVE CYLINDER V LIQUID COOLED,
1,475 HP.
WINGSPAN; 32 FT. 6.5 IN./ LENGTH; 29 FT. 0 IN. / HEIGHTH; 8 FT. 2.5 IN.
WEIGHT; 6,834 LB
MAXIMUM SPEED; 406 MPH / CEILING; 39,370 FT / RANGE; 528 MILES
ARMAMENT; TWO MACHINE GUNS, ONE 20 MM CANNON
CREW; 1.
YEAR; FIRST MODEL, 1939.

ger cargo

ar232

ARADO Ar. 232

TYPE; TRANSPORT.
ENGINES; TWO BMW 801MA 14 CYLINDER RADIALS, AIR COOLED,
1,600 HP EACH.
WINGSPAN; 109 FT. 11 IN. / LENGTH; 77 FT. 2 IN. / HEIGHTH; 18 FT. 8 IN.
WEIGHT; 44,090 LB. LOADED.
MAXIMUM SPEED; 191 MPH / CEILING; 22,640 FT. / RANGE; 830 MILES.
ARMAMENT; THREE MACHINE GUNS, ONE 20MM CANNON.
CREW; 2-5.
YEAR; 1942.

iron eagle

JU-52

TRANSPORT.
ENGINES; THREE BMW 132A-3 NINE CYLINDER RADIALS,
725 HP EACH.
WINGSPAN; 95 FT. 11.5 IN. / LENGTH; 62 FT. / HEIGHTH; 18FT. 2.5 IN.
WEIGHT; 23,146 LB.
MAXIMUM SPEED; 172 MPH / CEILING; 19,360 FT / RANGE; 620 MILES.
ARMAMENT; TWO MACHINE GUNS / 1,100 LBS BOMBS.
CREW; 4.
YEAR; 1934.

rocket

rocket

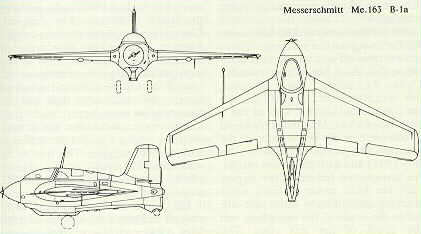

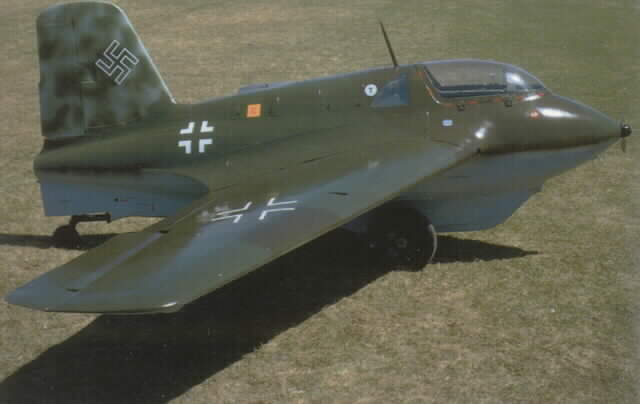

ME 163 KOMET

TYPE; FIGHTER
ENGINES; WALTER HWK 509A-2, 3,750 LB THRUST.
WINGSPAN; 30 FT. 7 IN. / LENGTH; 18 FT. 8 IN. / HEIGHTH; 9 FT. / WEIGHT; 8,707 LB.
MAXIMUM SPEED; 596 MPH / CEILING; 39,500 FT / RANGE; ENDURANCE, 7.5 MINUTES.
ARMAMENT; TWO 20MM CANNONS.
CREW; 1 .
YEAR; 1944.

me110

ME110

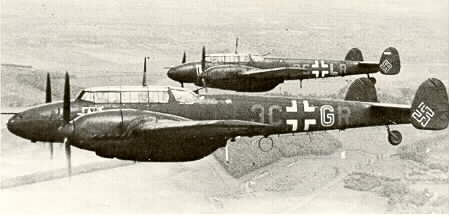

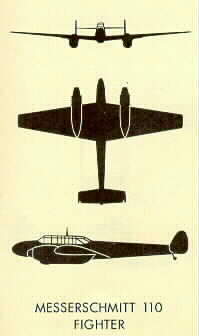

ME 110

TYPE; FIGHTER.
ENGINES; TWO DAIMLER BENZ DB 601A-1 LIQUID COOLED 12 CYLINDER V TYPE, 1,050 HP EACH.
WINGSPAN; 53 FT. 4 IN. / LENGTH; 39 FT. 7 IN. / HEIGHTH; 13 FT. 6.5 IN. / WEIGHT; 13,289 LB.
MAXIMUM SPEED; 336 MPH / CEILING; 32,810 FT / RANGE; 680 MILES.
ARMAMENT; FIVE MACHINE GUNS, TWO 20MM CANNONS.
CREW; 2-3.
YEAR; 1939.

ger cargo

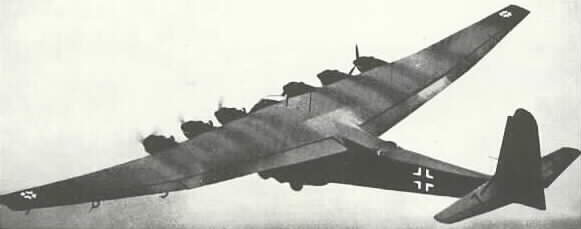

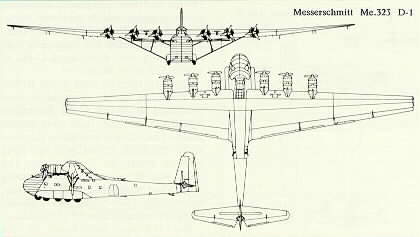

ME323

ME323

TYPE; TRANSPORT.
ENGINES; SIX GNOME RHONE 14N AIR COOLED 14 CYLINDER RADIAL ENGINES, 1140 HP EACH.
WINGSPAN; 180 FT. / LENGTH; 93 FT. 6 IN. / HEIGHTH; 31 FT. 6 IN.
WEIGHT; 96,050 LB. LOADED.
MAXIMUM SPEED; 144 MPH / CEILING; 13,120 FT. / RANGE; 810 MILES.
ARMAMENT; 7 MACHINE GUNS, 2 X 20MM CANNON.
CREW; 5-7.
YEAR; 1942.

V1

TYPE; .
ENGINES; HP EACH.
WINGSPAN; FT. IN. / LENGTH; FT. IN. / HEIGHTH; FT. IN. / WEIGHT; LB.
MAXIMUM SPEED; MPH / CEILING; FT / RANGE; MILES.
ARMAMENT; MACHINE GUNS / LBS BOMBS.
CREW; .
YEAR; .

FW190

FW190

FW190

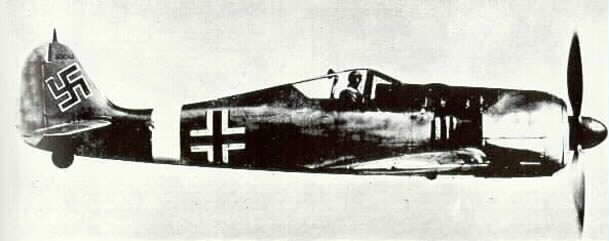

FW 190

TYPE; FIGHTER.
ENGINE; BMW 801C-1 AIR COOLED 14 CYLINDER RADIAL , 1600 HP .
WINGSPAN; 34 FT. 5.5 IN. / LENGTH; 29 FT. / HEIGHTH; 12 FT. 11.5 IN. / WEIGHT; 8770 LB.
MAXIMUM SPEED; 389 MPH / CEILING; 34,775 FT / RANGE; 497 MILES.
ARMAMENT; 4 X MACHINE GUNS / 2 X 20MM CANNON.
CREW; 1.
YEAR; 1941 .

DO217

DO217 3 WAY

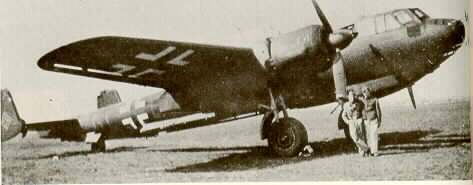

DO 217

TYPE; FIGHTER BOMBER .
ENGINES; TWO DAIMLER BENZ DB603A LIQUID COOLED 12 CYLINDER V TYPE, 1750 HP EACH.
WINGSPAN; 59 FT. 8.5 IN. / LENGTH; 62 FT. 0 IN. / HEIGHTH; 16 FT. 5 IN. / WEIGHT; 33,070 LB.
MAXIMUM SPEED; 320 MPH / CEILING; 24,600 FT / RANGE; 1430 MILES.
ARMAMENT; 5 MACHINE GUNS / 1 15MM CANNON / 4,410 LBS BOMBS.
CREW; 4.
YEAR; 1943.

JU 86

JU863WAY

JU 86

TYPE; BOMBER.
ENGINES; TWO BMW 132F AIR COOLED NINE CYLINDER RADIALS, 810 HP EACH.
WINGSPAN; 73 FT. 10 IN. / LENGTH; 58 FT. 7.5 IN. / HEIGHTH; 16 FT. 8 IN. / WEIGHT; 18,078 LB.
MAXIMUM SPEED; 224 MPH / CEILING; 24,610FT / RANGE; 870 MILES.
ARMAMENT; 3 MACHINE GUNS / 1,760 LBS BOMBS.
CREW; 4.
YEAR; 1937.

HE162

HE 162

TYPE; FIGHTER.
ENGINES; BMW 003-1 AXIAL FLOW TURBOJET, 1764 POUNDS THRUST.
WINGSPAN; 23 FT. 7.5 IN. / LENGTH; 29 FT. 8 IN. / HEIGHTH; 8 FT. 6 IN. / WEIGHT; 5740 LB.
MAXIMUM SPEED; 521 MPH / CEILING; 39,400 FT / RANGE; 606 MILES.
ARMAMENT; 2 X 20 MM CANNON.
CREW; 1.
YEAR; 1945 .

me264

me264

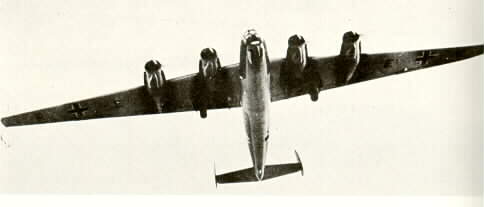

ME 264

TYPE; .
ENGINES; HP EACH.
WINGSPAN; FT. IN. / LENGTH; FT. IN. / HEIGHTH; FT. IN. / WEIGHT; LB.
MAXIMUM SPEED; MPH / CEILING; FT / RANGE; MILES.
ARMAMENT; MACHINE GUNS / LBS BOMBS.
CREW; .
YEAR; .

he280

HE 280

TYPE; .
ENGINES; HP EACH.
WINGSPAN; FT. IN. / LENGTH; FT. IN. / HEIGHTH; FT. IN. / WEIGHT; LB.
MAXIMUM SPEED; MPH / CEILING; FT / RANGE; MILES.
ARMAMENT; MACHINE GUNS / LBS BOMBS.
CREW; .
YEAR; .

bachem

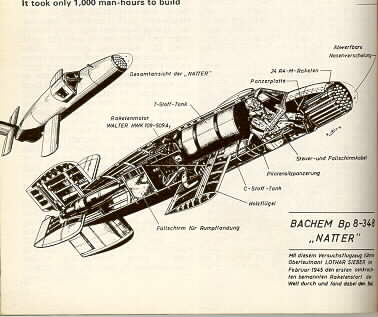

BACHEM Bp 8-348

NATTER

TYPE; .
ENGINES; HP EACH.
WINGSPAN; FT. IN. / LENGTH; FT. IN. / HEIGHTH; FT. IN. / WEIGHT; LB.
MAXIMUM SPEED; MPH / CEILING; FT / RANGE; MILES.
ARMAMENT; MACHINE GUNS / LBS BOMBS.
CREW; .
YEAR; .
