Side
view of the IMI SGS7101. You can see the four Cluster IOP's
and one Ethernet IOP in this machine. The machine is able to support
80+ users at once. Note that there are no SCSI devices inside the machine.
The SCSI cable exits at the rear of the case.
CTOS Pictures from Integrated Messaging Inc.
The following CTOS pictures are courtesy of Integrated Message Inc.(via Charles Goodman).
Integrated Messaging Inc. is the leader in telephone answering, paging,
and 1-800 call processing, providing complete, professional, 24-hour service.
They have been servicing individuals and corporations across North America
since 1974, keeping ourselves and our clients at the cutting edge of telecommunications
technology.
(description taken from the IMI web site @ http://www.imi.mb.ca)

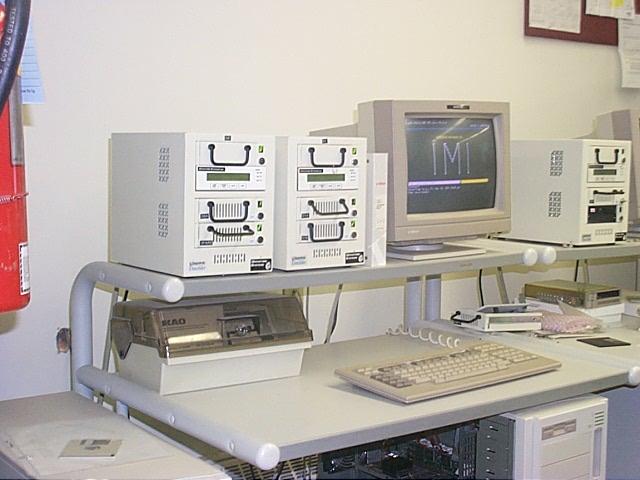

SGS7101
CTOS Server, Datastore Raid Disks (2 production, 1 spare), QIC Tape.

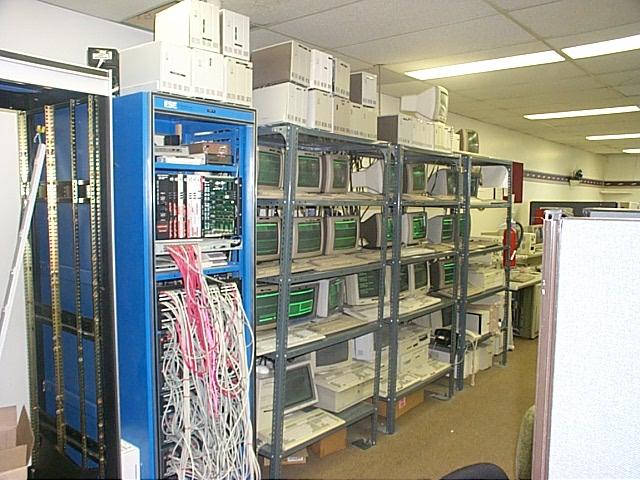

Communications
rack. To the right of the rack are a number of CTOS NGEN machines,
each performing a specific task..

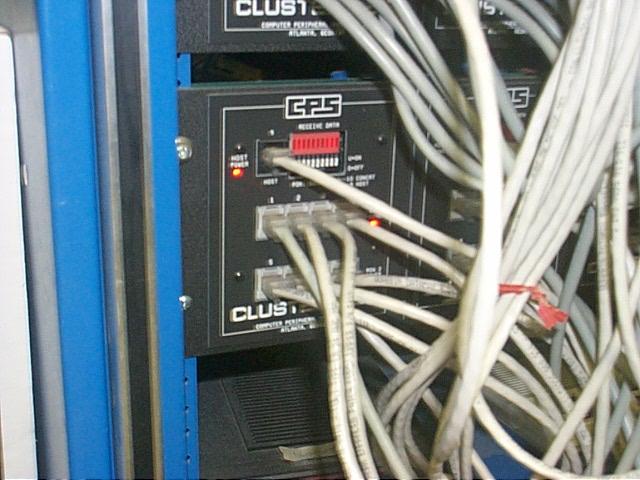

CPS
Cluster hub. The CTOS network is in a star topology. (http://www.cpscom.com/)

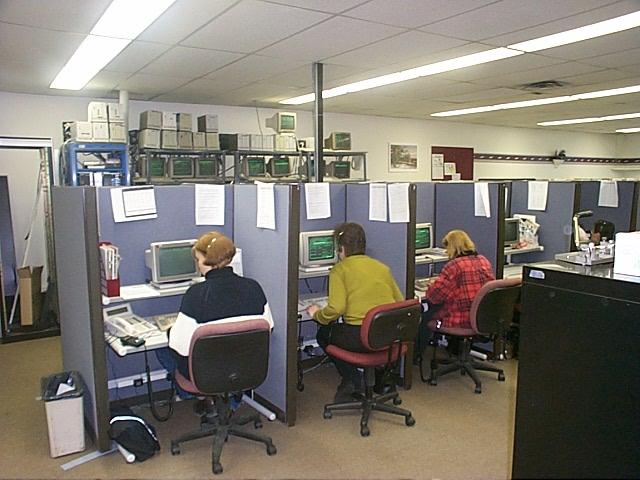

IMI
operators using CTOS terminals to process orders, and to provide an answering
service.

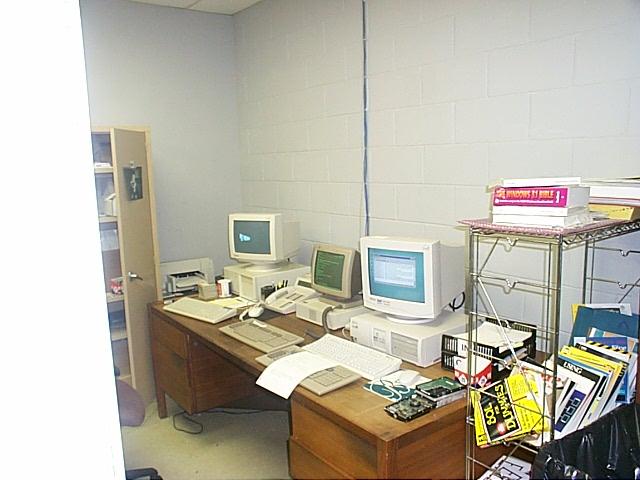

Technican's
desk. Two PC's, and a SG2100 that has a green screen sitting on it.

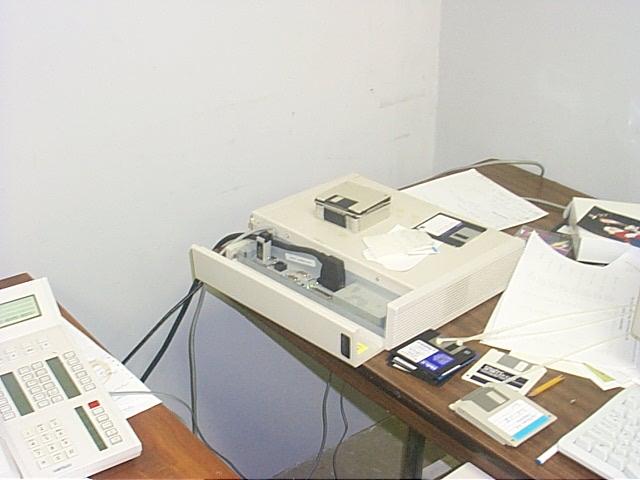

SG2100,
side cover open, showing the cable connections. Looks like an LCW,
but it's actually an 80486, with VGA capability.
Spare
NGEN and power supply (brick).
