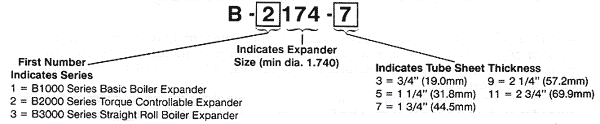

Boiler Expansion Selection Guide


Tube OD (mm) Tube Gage Tube ID TUBE ID (mm) EXP. Size
1"
(25.4)		 13
14
15
16		 0.810
0.834
0.856
0.870		 19.8
20.4
21.0
21.3		 x079
x079
x083
x083
1-1/4"
(31.8)		 7
8
9
10
11
12
13
14
15
16		 0.890
0.920
0.954
0.982
1.010
1.032
1.060
1.084
1.106
1.120		 21.8
22.5
23.4
24.1
24.7
25.3
26.0
26.6
27.1
27.4		 x087
x091
x091
x095
x099
x099
x099
x103
x103
x111
1-1/2"
(38.1)

7
8
9
10
11
12
13
14
15
16

 1.140
1.170
1.204
1.232
1.260
1.282
1.310
1.334
1.356
1.370

27.9
28.7
29.5
30.2
30.9
31.4
32.1
32.7
33.2
33.6

 x111
x111
x111
x118
x118
x118
x126
x126
x126
x126
1-3/4"
(44.5)		 7
8
9
10
11
12
13
14
15
16		 1.390
1.420
1.454
1.482
1.510
1.532
1.560
1.584
1.606
1.620		 34.1
34.8
35.6
36.3
37.0
37.5
38.2
38.8
39.3
39.7		 x126
x134
x134
x142
x142
x142
x150
x150
x150
x150
2"
(50.8)		 7
8
9
10
11
12
13
14
15
16		 1.640
1.670
1.704
1.732
1.760
1.782
1.810
1.834
1.856
1.870		 40.2
40.9
41.7
42.2
43.1
43.7
44.3
44.9
45.5
45.8		 x158
x158
x158
x166
x166
x166
x174
x174
x174
x181

Tube OD (mm) Tube Gage Tube ID TUBE ID (mm) EXP. Size
2-1/4"
(57.2)		 7
8
9
10
11
12
13
14
15
16		 1.890
1.920
1.954
1.982
2.010
2.032
2.060
2.084
2.106
2.120
 46.3
47.0
47.9
48.6
49.2
49.8
50.5
51.1
51.6
51.9
 x181
x181
x181
x189
x189
x189
x189
x197
x197
x197
2-1/2"
(63.5)		 7
8
9
10
11
12
13
14
15
16		 2.140
2.170
2.204
2.232
2.260
2.282
2.310
2.334
2.356
2.370		 52.4
53.2
54.0
54.7
55.4
55.9
56.6
57.2
57.7
58.1		 x205
x205
x205
x205
x213
x213
x213
x221
x221
x221
2-3/4"
(69.9)		 7
8
9
10
11
12
13
14
15
16		 2.390
2.420
2.454
2.482
2.510
2.532
2.560
2.584
2.606
2.620		 58.8
59.3
60.1
60.8
61.5
62.0
62.7
63.3
63.8
64.2		 x229
x229
x229
x237
x237
x237
x244
x244
x244
x244
3"
(76.2)		 7
8
9
10
11
12
13
14
15
16		 2.640
2.670
2.704
2.732
2.760
2.782
2.810
2.834
2.856
2.870		 64.7
65.4
66.2
66.9
67.6
68.2
68.8
69.4
70.0
70.3		 x252
x252
x252
x252
x252
x252
x268
x268
x276
x276
3-1/4"
(82.6)		 7
8
9
10
11
12
13
14
15
16		 2.890
2.920
2.954
2.982
3.010
3.032
3.060
3.084
3.106
3.120		 70.8
71.5
72.4
73.1
73.7
74.3
75.0
75.6
76.1
76.4		 x284
x284
x284
x284
x284
x292
x292
x292
x300
x300

Tube OD (mm) Tube Gage Tube ID TUBE ID (mm) EXP. Size
3-1/2"
(88.9)		 7
8
9
10
11
12
13
14
15
16		 3.140
3.170
3.204
3.232
3.260
3.282
3.310
3.334
3.356
3.370		 76.9
77.7
78.5
79.2
79.9
80.4
81.1
81.7
82.2
82.6		 x300
x300
x300
x308
x308
x308
x315
x315
x315
x323
3-3/4"
(95.3)		 7
8
9
10
11
12
13
14
15
16		 3.390
3.420
3.454
3.482
3.510
3.532
3.560
3.584
3.606
3.620		 83.1
83.8
84.6
85.3
86.0
86.5
87.2
87.8
88.3
88.7		 x323
x323
x331
x331
x331
x331
x339
x339
x339
x339
4"
(101.6)		 7
8
9
10
11
12
13
14
15
16		 3.640
3.670
3.704
3.732
3.760
3.782
3.810
3.834
3.856
3.870		 89.2
89.9
90.7
91.4
92.1
92.7
93.3
93.9
94.5
94.8		 x347
x347
x355
x355
x355
x355
x363
x363
x363
x370
4-1/4"
(108.0)		 7
8
9
10
11
12
13
14
15
16		 3.890
3.920
3.954
3.982
4.010
4.032
4.060
4.064
4.106
4.120		 95.3
96.0
96.9
97.6
98.2
98.8
99.5
100.1
100.6
100.9		 x370
x370
x378
x378
x378
x386
x386
x386
x386
x386
4-1/2"
(114.3)		 7
8
9
10
11
12
13
14		 4.140
4.170
4.204
4.232
4.260
4.282
4.310
4.334		 101.4
102.2
103.0
103.7
104.4
104.9
105.6
106.2		 x394
x394
x394
x394
x394
x394
x394
x394





Condenser/Exchanger Expander Selection Guide

    Expansion Range G-800 Type Expanders G-1200 Type Expanders G-800
&
G-1220
Bearing
No.
Tube
OD		 GA. Min. Max. Tools with 1-1/2" Long Rolls Tools with 2-1/4"" Long Rolls Mandrel
No.		 Tools with 1-1/2" Long Rolls Tools with 2-1/4"" Long Rolls Mandrel
No.
Tool
No.		 Roll
No.		 Tool
No.		 Roll
No.		 Tool
No.		 Roll
No.		 Tool
No.		 Roll
No.
1/2 14 .324 .375 797 797     797 1197 797     1197 W-5/16"
1/2 15 .348 .398 799 R-1     799 199 R-1     1199 W-3/8"
1/2 16 .360 .410 801 R-1     M-1 1201 R-1     M-51
1/2 17 .374 .424 803 R-2     M-1 1203 R-2     M-51
1/2 18 .392 .447 805 R-3     M-2 1205 R-3     M-52
1/2 20 .406 .461 805 Spec R-3     M-3 1205 Spec R-3     M-53
5/8 12 .392 .447 805 R-3     M-2 1205 R-3     M-52
5/8 13 .425 .480 807 R-4     M-3 1207 R-4     M-53
5/8 14 .449 .509 809 R-4 810 R-4-A M-4 1209 R-4 1210 R-4-A M-54
5/8 15 .471 .536 811 R-5 812 R-5-A M-5 1211 R-5 1212 R-5-A M-55 W-1/2"
5/8 16 .485 .550 813 R-6 814 R-6-A M-5 1213 R-6 1214 R-6-A M-55
5/8 17 .499 .564 815 R-6 816 R-6-A M-6 1215 R-6 1216 R-6-A M-56
5/8 18 .517 .572 817 R-7 818 R-7-A M-7 1217 R-7 1218 R-7-A M-57
5/8 19 .522 .582 819 R-7 820 R-7-A M-6 1219 R-7 1220 R-7-A M-56
5/8 20-22 .536 .596 819 Spec R-7 820 Spec R-7-A M-8 1219 Spec R-7 1220 Spec R-7-A M-58
3/4 10 .471 .536 811 R-5 812 R-5-A M-5 1211 R-5 1212 R-5-A M-55
3/4 11 .499 .564 815 R-6 816 R-6-A M-6 1215 R-6 1216 R-6-A M-56
3/4 12 .522 .582 819 R-7 820 R-7-A M-6 1219 R-7 1220 R-7-A M-56
3/4 13 .550 .615 821 R-8 822 R-8-A M-8 1221 R-8 1222 R-8-A M-58
3/4 14 .574 .639 823 R-9 824 R-9-A M-8 1223 R-9 1224 R-9-A M-58
3/4 15 .596 .661 825 R-10 826 R-10-A M-8 1225 R-10 1226 R-10-A M-58
3/4 16 .605 .685 827 R-10 828 R-10-A M-9 1227 R-10 1228 R-10-A M-59
3/4 17-18 .619 .699 829 R-11 830 R-11-A M-9 1229 R-11 1230 R-11-A M-59
3/4 19-22 .642 .722 831 R-12 832 R-12-A M-9 1231 R-12 1232 R-12-A M-59
7/8 10 .596 .661 825 R-10 826 R-10-A M-8 1225 R-10 1226 R-10-A M-58
7/8 11 .619 .699 829 R-11 830 R-11-A M-9 1229 R-11 1230 R-11-A M-59
7/8 12 .642 .722 831 R-12 832 R-12-A M-9 1231 R-12 1232 R-12-A

M-59
7/8 13 .670 .750 833 R-13 834 R-13-A M-10 1233 R-13 1234 R-13-A M-60
7/8 14 .685 .774 835 R-14 836 R-14-A M-11 1235 R-14 1236 R-14-A M-61 W-5/8"
7/8 15 .712 .801 837 R-15 838 R-15-A M-11 1237 R-15 1238 R-15-A M-61
7/8 16 .726 .815 839 R-15 840 R-15-A M-12 1239 R-15 1240 R-15-A M-62
7/8 17-18 .740 .829 843 R-16 844 R-16-A M-12 1243 R-16 1244 R-16-A M-62
1 8 .655 .735 841 R-13 842 R-13-A M-9 1241 R-13 1242 R-13-A M-59 W-1/2"
1 9 .685 .774 635 R-14 836 R-14-A M-11 1235 R-14 1236 R-14-A M-61 W-5/8"
1 10 .712 .801 837 R-15 838

R-15-A

 M-11 1237 R-15 1238 R-15-A M-61
1 11 .740 .829 843 R-16 844 R-16-A M-12 1243 R-16 1244 R-16-A M-62
1 12 .763 .852 845 R-17 846 R-17-A M-12 1245 R-17 1246 R-17-A M-62
1 13 .791 .880 847 R-18 848 R-18-A M-12 1247 R-18 1248 R-18-A M-62
1 14 .810 .909 849 R-18 850 R-18-A M-13 1249 R-18 1250 R-18-A M-63 W-3/4"
1 15-16 .837 .936 851 R-19 852 R-19-A M-13 1251 R-19 1252 R-19-A M-63
1 17-20 .865 .964 855 R-21 856 R-21-A M-13 1255 R-21 1256 R-21-A M-63
1-1/8 8 .776 .875 853 R-20 854 R-20-A M-13 1253 R-20 1254 R-20-A M-63 W-5/8"
1-1/8 9 .810 .909 849 R-18 850 R-18-A M-13 1249 R-18 1250 R-18-A M-63 W-3/4"
1-1/8 10 .837 .936 851 R-19 852 R-19-A M-13 1251 R-19 1252 R-19-A M-63
1-1/8 11 .865 .964 855 R-21 856 R-21-A M-13 1255 R-21 1256 R-21-A M-63
1-1/8 12 .883 .982 857 R-21 858 R-21-A M-14 1257 R-21 1258 R-21-A M-64
1-1/8 13 .916 1.015 859 R-22 860 R-22-A M-14 1259 R-22 1260 R-22-A M-64 W-7/8"
1-1/8 14 .935 1.044 861 R-23 862 R-23-A M-15 1261 R-23 1262 R-23-A M-65
1-1/8 15-16 .962 1.071 863 R-24 864 R-24-A M-15 1263 R-24 1264 R-24-A M-65
1-1/8 17-18 .990 1.099 867 R-26 868 R-26-A M-16 1267 R-26 1268 R-26-A M-66
1-1/4 8 .901 1.010 865 R-25 866 R-25-A M-15 1265 R-25 1266 R-25-A M-65 W-3/4"
1-1/4 9 .935 1.044 861 R-23 862 R-23-A M-15 1261 R-23 1262 R-23-A M-65 W-7/8"
1-1/4 10 .962 1.071 863 R-24 864 R-24-A M-15 1263 R-24 1264 R-24-A M-65
1-1/4 11 .990 1.099 867 R-26 868 R-26-A M-16 1267 R-26 1268 R-26-A M-66
1-1/4 12 1.013 1.122 869 R-27 870 R-27-A M-16 1269 R-27 1270 R-27-A M-66
1-1/4 13 1.041 1.150 871 R-28 872 R-28-A M-17 1271 R-28 1272 R-28-A M-67
1-1/4 15-16 1.087 1.196 875 R-30 876 R-30-A M-17 1275 R-30 1276 R-30-A M-67
1-1/4 17-18 1.115 1.224 879 R-30 880 R-30-A M-18 1279 R-30 1280 R-30-A M-68 W-1"
1-3/8 8 1.026 1.135 877 R-31 878 R-31-A M-17 1277 R-31 1278 R-31-A M-67 W-7/8"
1-3/8 9 1.060 1.169 873 R-29 874 R-29-A M-17 1273 R-29 1274 R-29-A M-67
1-3/8 10 1.087 1.196 875 R-30 876 R-30-A M-17 1275 R-30 1276 R-30-A M-67
1-3/8 11 1.115 1.224 879 R-30 880 R-30-A M-18 1279 R-30 1280 R-30-A M-68 W-1"
1-3/8 12 1.133 1.242 881 R-32 882 R-32-A M-18 1281 R-32 1282 R-32-A M-68
1-3/8 13 1.160 1.275 883 R-33 884 R-33-A M-19 1283 R-33 1284 R-33-A M-69
1-3/8 14 1.179 1.294 885 R-34 886 R-34-A M-20 1285 R-34 1286 R-34-A M-70
1-3/8 15-16 1.206 1.321 887 R-35 888 R-35-A M-20 1287 R-35 1288 R-35-A M-70 W-1-1/8"
1-1/2 8 1.145 1.260 889 R-34 890 R-34-A M-19 1289 R-34 1290 R-34-A M-69 W-1"
1-1/2 9 1.179 1.294 885 R-34 886 R-34-A M-20 1285 R-34 1286 R-34-A M-70
1-1/2 10 1.206 1.321 887 R-35 888 R-35-A M-20 1287 R-35 1288 R-35-A M-70 W-1-1/8"
1-1/2 11 1.235 1.350 891 R-36 892 R-36-A M-20 1291 R-36 1292 R-36-A M-70
1-1/2 12 1.257 1.372 893 R-37 894 R-37-A M-20 1293 R-37 1294 R-37-A M-70
1-1/2 13-14 1.285 1.400 895 R-37 896 R-37-A M-21 1295 R-37 1296 R-37-A M-71
1-1/2 15-16 1.331 1.446 897 R-38 898 R-38-A M-21 1297 R-38 1298 R-38-A M-71
1-1/2 17-20 1.331

1.472

 899 R-38 900 R-38-A M-22 1299 R-38 1300 R-38-A M-72



G-8012 Type Expanders

Tools for 1-3/4" OD to 2" OD Tools for 2-1/4" OD to 3" OD
Tube
OD		 GA. Expansion Range Tool
No.		 Roll
No.		 Mandrel
No.		 Bearing
No.		 Tube
OD		 GA. Expansion Range Tool
No.		 Roll
No.		 Mandrel
No.		 Bearing
No.
Min. Max. Min. Max.
1-3/4 10 1.420 1.607 8012-1-3/4-10 R-37-A M-90 W-1-3/8" 2-1/4 10 1.890 2.107 8012-2-1/4-10 R-56 M-92 W-1-3/4"
1-3/4 11 1.454 1.635 8012-1-3/4-11 R-42 M-90 W-1-3/8" 2-1/4 11 1.920 2.135 8012-2-1/4-11 R-58 M-92 W-1-3/4"
1-3/4 12 1.482 1.657 8012-1-3/4-12 R-44 M-90 W-1-3/8" 2-1/4 12 1.954 2.157 8012-2-1/4-12 R-60 M-92 W-1-3/4"
1-3/4 13 1.510 1.685 8012-1-3/4-13 R-46 M-90 W-1-3/8" 2-1/4 13-16 1.982 2.185 8012-2-1/4-13-16 R-62 M-92 W-1-3/4"
1-3/4 14 1.532 1.709 8012-1-3/4-14 R-48 M-90 W-1-3/8" 2-1/2 10-12 2.140 2.407 8012-2-1/2-10-12 R-64 M-93 W-1-3/4"
2 10 1.640 1.857 8012-2-10 R-50 M-91 W-1-1/2" 2-1/2 13-18 2.232 2.450 8012-2-1/2-13-18 R-64 M-94 W-1-3/4"
2 11 1.670 1.885 8012-2-11 R-52 M-91 W-1-1/2" 2-3/4 10-16 2.390 2.702 8012-2-3/4-10-16 R-66 M-96 W-2"
2 12 1.704 1.907 8012-2-12 R-54 M-91 W-1-1/2" 3 8-9 2.560 2.839 8012-3-8-9 R-67 M-97 W-2"
2 13-18 1.732 1.956 8012-2-13-18 R-56 M-91 W-1-1/2" 3 10-18 2.640 2.952 8012-3-10-18 R-67 M-96 W-2"




Specifications for Torque Controlled Rolling Motors

  Models Speed & Torque 90 psig Air Pressure  Overal
Length		   Weight Head Dimensions Std. Square Drive Size Tube Capacities

Chuck Size
Free
Speed		 Maximum
Torque		 Minimum Torque Side to Center Height Less Square Drive
Part # (RPM) Ft. Lbs. Nm Ft. Lbs. Nm in mm lbs kg in/mm in/mm in in/mm in
2055-R-370 370 48 65 24 32 19.25 489 7.75 3.5 7/8 / 23 3.0 / 76.1 1/2 1.5/38 1/2
2055-R-190 190 95 129 43 58 19.25 489 7.75 3.5 7/8 / 23 3.0 / 76.1 1/2 1.7/44.5 1/2

Reversible - Lever Throttle
1753-L-190 190 140 190 70 95 20.1 530 13 5.8 1.1 / 28 2.6 / 65 5/8 2.5/63.5 3/4
1752-L-90 90 305 410 150 200 21.7 550 14.75 6.7 1.5 / 37 2.6 / 65 3/4 4/101.5 1
Reversible - Roll Throttle
1753-R-190 190 140 190 70 95 20.1 530 13 5.8 1.1 / 28 2.6 / 65 5/8 2.5/63.5 3/4
1752-R-90 90 305 410 150 200 21.7 550 14.75 6.7 1.5 / 37 2.75 / 70 3/4 4/101.5 1
Reversible - Roll Throttle - Stall Type
1753-RS190 190 155 210 - - 18.5 465 18 1/2 5.8 1.1 / 28 2.6 / 65 5/8 2.5/63.5 3/4
1752-RS-90 90 325 440 - - 19.0 485 18 1/2 6.7 1.5 / 37 2.75 / 70 3/4 4/101.5 1

Volver a Calderas              Ir a menú Principal          Ir a Herramientas p/Calderas
