Based on an older design often used in fans and clocks, these motors were common in early cab diesels and less expensive imports with shaft vertical. They ranged up to very large O scale sizes. The pole pieces are usually laminated to reduce losses and heat due to eddy currents.
Note: Adjust brightness and contrast for optimum viewing.
Diagram of general stucture amd flux path.
Note: Adjust brightness and contrast for optimum viewing.

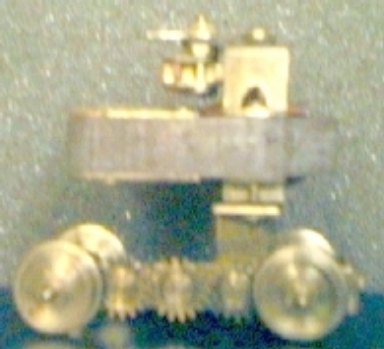

Side magnet motor.
