Available in sizes from 1x1x1 " to very large, these can prove invaluable in vericle alignment of work. Since they are rugged, they are particularly useful in machining. Mounting holes can be drilled as desired.
Note: Adjust brightness and contrast for optimum viewing.

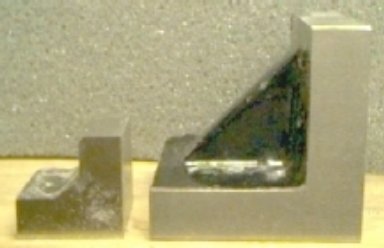

1x1x1" and 2x2x2" angle plates..
Fabricated by the late Bob Shinn, a very versatile version has all faces machined with a wide range of holes, some threaded. One face is stepped and the inside corner is relieved for clearance. On one outer face, a dovetail keyway accepts adjustable strips.
Note: Adjust brightness and contrast for optimum viewing.
Larger 2 3/8x3 1/4x4" plate with many mounting holes some threaded.
