Drawable Class Reference

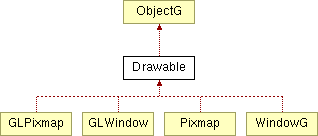

Inheritance diagram for Drawable:

List of all members.

---

Detailed Description

Drawable.

Public Member Functions
	this (Widget widget)
	Creates a drawable from a widget.
	this (Widget widget, GdkDrawable *window)
	Creates a drawable from a widget.
public GC	getGC ()
	Gets the GC of this drawable.
public void	setDrawable (Widget widget)
	Sets this drawable GdkDrawable and GdkGC from a widget.
GdkDrawable *	gDraw ()
	Gets this drawable GdkDrawable.
void	drawPoint (GC gc, gint x, gint y)
	Draws a point.
void	drawPoint (gint x, gint y)
	Draws a point using the current GC.
void	getSize (gint *width, gint *height)
	Gets the size of this drawable.
void	drawLine (GC gc, gint x1, gint y1, gint x2, gint y2)
	Draws a line.
void	drawLine (gint x1, gint y1, gint x2, gint y2)
	Draws a line using the current GC.
void	drawRectangle (GC gc, bit filled, gint x, gint y, gint width, gint height)
	Draws a rectangle.
void	drawRectangle (bit filled, gint x, gint y, gint width, gint height)
	Draws a rectangle using the current GC.
void	drawArc (bit filled, gint x, gint y, gint width, gint height, gint angle1, gint angle2)
	Draws an arc using the current GC.
void	drawArc (GC gc, bit filled, gint x, gint y, gint width, gint height, gint angle1, gint angle2)
	Draws an arc.
void	drawDrawable (GC gc, Drawable drawable, gint xsrc, gint ysrc, gint xdest, gint ydest, gint width, gint height)
	Draws a Drawable into this drawable.
Protected Member Functions
	this (GObject *gObject)
	Creates a ObjectG from a GTK GObject.

---

Member Function Documentation

void Drawable.drawArc (  GC  gc, bit  filled, gint  x, gint  y, gint  width, gint  height, gint  angle1, gint  angle2 )

Draws an arc. Parameters: gc  filled  x  y  width  height  angle1  the start angle angle2  the end angle

void Drawable.drawArc (  bit  filled, gint  x, gint  y, gint  width, gint  height, gint  angle1, gint  angle2 )

Draws an arc using the current GC. Parameters: filled  x  y  width  height  angle1  the start angle angle2  the end angle

void Drawable.drawDrawable (  GC  gc, Drawable  drawable, gint  xsrc, gint  ysrc, gint  xdest, gint  ydest, gint  width, gint  height )

Draws a Drawable into this drawable. Copies a portion of a drawable. Parameters: gc  drawable  xsrc  ysrc  xdest  ydest  width  height

void Drawable.drawLine (  gint  x1, gint  y1, gint  x2, gint  y2 )

Draws a line using the current GC. Parameters: x1  y1  x2  y2

void Drawable.drawLine (  GC  gc, gint  x1, gint  y1, gint  x2, gint  y2 )

Draws a line. Parameters: gc  x1  y1  x2  y2

void Drawable.drawPoint (  gint  x, gint  y )

Draws a point using the current GC. Parameters: x  y

void Drawable.drawPoint (  GC  gc, gint  x, gint  y )

Draws a point. Parameters: gc  x  y

void Drawable.drawRectangle (  bit  filled, gint  x, gint  y, gint  width, gint  height )

Draws a rectangle using the current GC. Parameters: filled  x  y  width  height

void Drawable.drawRectangle (  GC  gc, bit  filled, gint  x, gint  y, gint  width, gint  height )

Draws a rectangle. Parameters: gc  filled  x  y  width  height

GdkDrawable* Drawable.gDraw (   )

Gets this drawable GdkDrawable. Returns: the GdkDrawable

public GC Drawable.getGC (   )

Gets the GC of this drawable. Returns: the GC

void Drawable.getSize (  gint *  width, gint *  height )

Gets the size of this drawable. Parameters: width  height

public void Drawable.setDrawable (  Widget  widget  )

Sets this drawable GdkDrawable and GdkGC from a widget. Parameters: widget

Drawable.this (  Widget  widget, GdkDrawable *  window )

Creates a drawable from a widget. No GdkDrawable is created, just the DUI wrapper on the widget drawable. Parameters: widget  the widget window  the widget drawable

Drawable.this (  Widget  widget  )

Creates a drawable from a widget. No GdkDrawable is created, just the DUI wrapper on the widget drawable. Parameters: widget  the widget

Drawable.this (  GObject *  gObject  )  [protected]

Creates a ObjectG from a GTK GObject. This will set a pointer to the ObjectG on the GTK GObject all the new widget will end up executing this contructor. Reimplemented from ObjectG. Reimplemented in WindowG.

---
