1973 Land Rover Series III SWB
Vehicle Specifications
VIN#: in progress
V-5 Information: in progress - original to go with truck
Chassis Number: 90100001A
Drive Train
Engine
Displacement: 2.25L / 4 cylinder
Fuel: Petrol
Compression Ratio: 8.0:1
Carburettor: Weber ICH, single barrel
Horsepower: 70bhp (net) at 4,000 rpm
Maximum Torque: 120 lb ft at 1,500 rpm
Gas Mileage: 14MPG City / 17MPG Highway
Transmission
Type: Series Suffix C
Drive: 4 Wheel Drive
Gears: 4 forward / 1 reverse
Transfer Case: 2 speed - Hi/Lo
Gear Ratios:Brakes: 4 Wheel Drum / manual
Gear High Transfer Low Transfer Fourth 5.4:1 11.10:1 Third 8.05:1 16.50:1 Second 12.00:1 24.60:1 First 19.88:1 40.70:1 Reverse 21.66:1 44.30:1
Interior

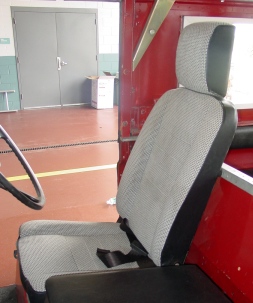

Trakker Seats
Cubby Box
2 Speed Windscreen Wiper
Heater / Defroster with 2 Speed Fan
Exterior
Color: Red with custom grey striping, "HIGHLANDER" (originally Marine Blue)
Overall Length: 143"
Overall Height: 77"
Overall Width: 66"
Wheelbase: 88"
Wheel Track (Width): 51.5"
Turning Radius: 38'
Ground Clearence: 9.75"
Weight: 2,953 lbs
Suspension: Rocky Mountain Parabolic Springs, 2 leaf front and rear (installed Fall 2003)
Shock Absorbers: Explorer Pro Comp 9000
Tires: 7.5x16 Dunlop Radial Rovers R/T
Hubs: Selectro Manual Locking / Free Wheeling Hubs
Mirrors: Defender style side mirrors
Trialer Hitch: 1 7/8" ball hitch with 7 to 4 wire converter harness
Shown with softop in place - 2003

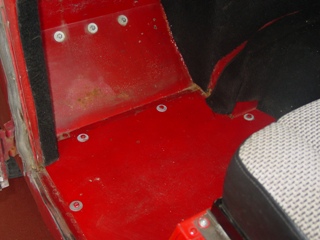

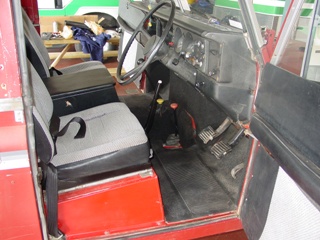

Left footwell Interior Left View

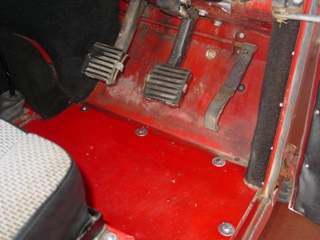

Right footwell Interior Right View
