AH-64D "Longbow Apache"

AH-64D with helfire missiles, hydra rocket, and a fuel tank.

The Boeing (McDonnell Douglas) (formerly Hughes) AH-64A Apache is the Army's primary attack helicopter. The AH-64 Apache is a twin-engine, four bladed, multi-mission attack helicopter designed as a highly stable aerial weapons-delivery platform. It is designed to fight and survive during the day, night, and in adverse weather throughout the world. With a tandem-seated crew consisting of the pilot, located in the rear cockpit position and the co-pilot gunner (CPG), located in the front position, the Apache is self-deployable, highly survivable and delivers a lethal array of battlefield armaments. The Apache features a Target Acquisition Designation Sight (TADS) and a Pilot Night Vision Sensor (PNVS) which enables the crew to navigate and conduct precision attacks in day, night and adverse weather conditions.

The Apache can carry up to 16 Hellfire laser designated missiles. With a range of over 8000 meters, the Hellfire is used primarily for the destruction of tanks, armored vehicles and other hard material targets. The Apache can also deliver 76, 2.75" folding fin aerial rockets for use against enemy personnel, light armor vehicles and other soft-skinned targets. Rounding out the Apache’s deadly punch are 1,200 rounds of ammunition for its Area Weapons System (AWS), 30MM Automatic Gun.

Powered by two General Electric gas turbine engines rated at 1890 shaft horsepower each, the Apache’s maximum gross weight is 17,650 pounds which allows for a cruise airspeed of 145 miles per hour and a flight endurance of over three hours. The AH-64 can be configured with an external 230-gallon fuel tank to extend its range on attack missions, or it can be configured with up to four 230-gallon fuel tanks for ferrying/self-deployment missions. The combat radius of the AH-64 is approximately 150 kilometers. The combat radius with one external 230-gallon fuel tank installed is approximately 300 kilometers [radii are temperature, PA, fuel burn rate and airspeed dependent]. The AH-64 is air transportable in the C-5, C-141 and C-17.

An on-board video recorder has the capability of recording up to 72 minutes of either the pilot or CPG selected video. It is an invaluable tool for damage assessment and reconnaissance. The Apache's navigation equipment consists of a doppler navigation system, and most aircraft are equipped with a GPS receiver.

The Apache has state of the art optics that provide the capability to select from three different target acquisition sensors. These sensors are

Day TV. Views images during day and low light levels, black and white.
• TADS FLIR. Views thermal images, real world and magnified, during day, night and adverse weather.
• DVO. Views real world, full color, and magnified images during daylight and dusk conditions. >

Threat identification through the FLIR system is extremely difficult. Although the AH-64 crew can easily find the heat signature of a vehicle, it may not be able to determine friend or foe. Forward looking infrared detects the difference in the emission of heat in objects. On a hot day, the ground may reflect or emit more heat than the suspected target. In this case, the environment will be "hot" and the target will be "cool". As the air cools at night, the target may lose or emit heat at a lower rate than the surrounding environment. At some point the emission of heat from both the target and the surrounding environment may be equal. This is IR crossover and makes target acquisition/detection difficult to impossible. IR crossover occurs most often when the environment is wet. This is because the water in the air creates a buffer in the emissivity of objects. This limitation is present in all systems that use FLIR for target acquisition.

Low cloud ceilings may not allow the Hellfire seeker enough time to lock onto its target or may cause it to break lock after acquisition. At extended ranges, the pilot may have to consider the ceiling to allow time for the seeker to steer the weapon onto the target. Pilot night vision sensor cannot detect wires or other small obstacles.

Overwater operations severely degrade navigation systems not upgraded with embedded GPS. Although fully capable of operating in marginal weather, attack helicopter capabilities are seriously degraded in conditions below a 500-foot ceiling and visibility less than 3 km. Because of the Hellfire missile's trajectory, ceilings below 500 feet require the attack aircraft to get too close to the intended target to avoid missile loss. Below 3 km visibility, the attack aircraft is vulnerable to enemy ADA systems. Some obscurants can prevent the laser energy from reaching the target; they can also hide the target from the incoming munitions seeker. Dust, haze, rain, snow and other particulate matter may limit visibility and affect sensors. The Hellfire remote designating crew may offset a maximum of 60 degrees from the gun to target line and must not position their aircraft within a +30-degree safety fan from the firing aircraft.

The Apache fully exploits the vertical dimension of the battlefield. Aggressive terrain flight techniques allow the commander to rapidly place the ATKHB at the decisive place at the optimum time. Typically, the area of operations for Apache is the entire corps or divisional sector. Attack helicopters move across the battlefield at speeds in excess of 3 kilometers per minute. Typical planning airspeeds are 100 to 120 knots during daylight and 80 to 100 knots at night. Speeds during marginal weather are reduced commensurate with prevailing conditions. The Apache can attack targets up to 150 km across the FLOT. If greater depth is required, the addition of ERFS tanks can further extend the AH-64's range with a corresponding reduction in Hellfire missile carrying capacity (four fewer Hellfire missiles for each ERFS tank installed).

AH-64A "Apache"

Apache helicopters also played a major role in the liberation of Kuwait. On 20 November 1990, the 11th Aviation Brigade was alerted for deployment to Southwest Asia from Storck Barracks in Illesheim Germany. The first elements arrived in theater 24 November 1990. By 15 January 1991 the unit had moved 147 helicopters, 325 vehicles and 1,476 soldiers to the region. The Apache helicopters of the Brigade destroyed more than 245 enemy vehicles with no losses.

During Operation Desert Storm, AH-64s were credited with destroying more than 500 tanks plus hundreds of additional armored personnel carriers, trucks and other vehicles. They also were used to destroy vital early warning radar sites, an action that opened the U.N. coalition's battle plan. Apaches also demonstrated the ability to perform when called upon, logging thousands of combat hours at readiness rates in excess of 85 percent during the Gulf War.

While recovery was ongoing, additional elements of the 11th Aviation Brigade began the next chapter of involvement in the region. On 24 April 1991 the 6th Squadron, 6th Cavalry’s 18 AH-64 helicopters began a self-deployment to Southwest Asia. The Squadron provided aerial security to a 3,000 square kilometer region in Northern Iraq as part of the Combined Task Force of Operation Provide Comfort.

And the AH-64A Apache helped to keep the peace in Bosnia. April of 1996 saw the beginning of the 11th Regiment’s involvement in Bosnia-Herzegovina. Elements of 6-6 Cavalry served as a part of Task Force Eagle under 1st Armored Division for 7 months. In October of 1996, Task Force 11, consisting of the Regimental Headquarters, 2-6 Cavalry, 2-1 Aviation and 7-159 Aviation (AVIM) deployed to Bosnia-Herzegovina in support of Operation Joint Endeavor/Operation Joint Guard for 8 months. In June of 1998 the Regimental Headquarters, 6-6 Cav and elements of 5-158 Aviation were again deployed to Bosnia-Herzegovina in support of Operations Joint Guard and Joint Forge for 5 months. The AH-64A’s advanced sensors and sighting systems proved effective in removing the cover of darkness from anti-government forces.

Army National Guard units in North and South Carolina, Florida, Texas, Arizona, Utah and Idaho also fly Apache helicopters. The Army has fielded combat-ready AH-64A units in the United States, West Germany and in Korea, where they play a major role in achieving the US Army's security missions.

By late 1996, McDonnell Douglas Helicopters delivered 937 AH-64A Apaches -- 821 to the U.S. Army and 116 to international customers, including Egypt, Greece, Israel, Saudi Arabia and the United Arab Emirates.
The Apache is clearly one of the most dynamic and important programs in aviation and the Army, but it is not without limitations. Due to the possibility of surging the engines, pilots have been instructed not to fire rockets from in-board stations. According to current doctrine, they are to fire no more than pairs with two outboard launchers every three seconds, or fire with only one outboard launcher installed without restrictions (ripples permitted). These are the only conditions permitted. Other firing conditions will be required to be approved via a System Safety Risk Assessment (SSRA).

The improvement of aircraft systems troubleshooting is a high priority issue for O&S Cost reduction. Because of funding cuts, the level of contractor support to the field has been reduced. This results in higher costs in no fault found removals, maintenance man hours, and aircraft down time. The Apache PM, US Army Aviation Logistics School, and Boeing are currently undertaking several initiatives. Upgrading and improving the soldier's ability to quickly and accurately fault isolate the Apache weapons system is and will continue to be an O&S priority until all issues are resolved.

Prime Vendor Support (PVS) for the entire fleet of AH-64s is a pilot program for the Army, and may become a pilot program for the Department of Defense. PVS will place virtually all of Apache's wholesale logistic responsibility under a single contract. The Apache flying hour program will provide upfront funding for spares, repairables, contractor technical experts, and reliability improvements. Starting at the flight line there will be contractor expert technicians with advanced troubleshooting capability assigned to each Apache Battalion. At the highest level, PVS represents a single contractor focal point for spares and repairs. The intent is to break the current budget and requirements cycle that has Apache at 67% supply availability with several thousand lines at zero balance.

Modernization Through Spares (MTS) is a spares/component improvement strategy applied throughout the acquisition life cycle and is based on technology insertion to enhance systems and extend useful life while reducing costs. The MTS initiative seeks to leverage current procurement funds and modernize individual system spares thereby incrementally improving these systems. MTS is accomplished via the "spares" acquisition process. MTS, a subset of acquisition reform, seeks to improve an end item's spare components. The emphasis is on form, fit and function, allowing a supplier greater design and manufacturing flexibility to exploit technology used in the commercial marketplace.

Apache MTS focuses on the insertion of the latest technology into the design and manufacture of select spares. This is to be accomplished without government research and development (R&D) funds, but rather, uses industry investment. Industry, in turn, recoups this investment through the sale of improved hardware via long term contracts.

Modernization efforts continue to improve the performance envelope of the AH-64A while reducing the cost of ownership. Major modernization efforts within the AH-64A fleet are funded and on schedule. GG Rotor modifications were finished in April 1998,, and future improvements such as a Second Generation FLIR, a High Frequency Non-Line of Sight NOE radio, and an internal fully crashworthy auxiliary fuel tank are all on the verge of becoming a reality for the Apache.

The Aviation Mission Planning System (AMPS) and the Data Transfer Cartridge (DTC) are tools for the Embedded Global Positioning Inertial Navigation Unit (EGI) equipped AH-64A aircraft that allow aircrews to plan missions and download the information to a DTC installed in the Data Transfer Receptacle (DTR). This saves the pilots a lot of "fat fingering" and eliminates the worry of everyone being on the same "sheet of music". Other features of the DTC include; saving waypoints and targets and troubleshooting. The EGI program is a Tri-service program with the Army, Air Force and Navy.

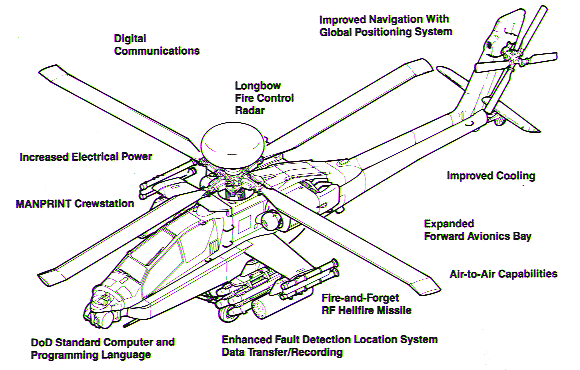

AH-64D Longbow

Transportability requirements were initially identified in the ORD and further defined in the AH-64D System Specification. Both configurations of the AH-64D, including any removed items and appropriate PGSE, shall be capable of being transported aboard C-141B, C-5A, or C-17 aircraft. The aircraft shall also be capable of being transported and hangar stored below decks in the landing platform helicopter (LPH) type carrier, Fast SeaLift ships, Roll-on/Roll-off, LASH, SEABEE ships, and Military Sealift Command (MSC) dry cargo ships. Additionally, the aircraft shall be transportable by military M-270A1 trailer and commercial "Air-Ride" trailer or equivalent. For aerial recovery, the AH-64D with MMA will be externally transportable by CH-47D aircraft using the Unit Maintenance Aerial Recovery Kit. Two AH-64D plus one FCR aircraft will be transportable by C-141, six AH-64Ds (with a minimum of three FCR mission kits) are transportable by C-5, and three AH-64Ds and three FCR mission kits are transportable by C-17.

All AH-64A Apaches in the fleet are to be upgraded to the AH-64D configuration: 227 will be equipped with the FCR, and the remaining 531 will not. Each attack helicopter company will receive three aircraft with FCRs and five without.
McDonnell Douglas Helicopter Systems is under contract for the first 18 Longbow Apaches and delivered the first remanufactured Longbow Apache in March 1997. The Army and McDonnell Douglas agreed to a five-year, multi-year agreement that will give the Army 232 Longbow Apaches in the first five years of production. The multi-year purchase increases the Longbow Apache production rate in the first year to 24 aircraft and 232 for the five-year period. Under the multi-year contract, the Army will field two additional combat-ready Longbow Apache battalions. The contract also includes funding for McDonnell Douglas to train pilots and maintenance personnel for the first two equipped units, development of interactive electronic technical manuals, development of training devices, first article testing of the production aircraft, initial spares, and a variety of program support tasks for the first production lot. The U.S. Army plans to remanufacture its entire AH-64A Apache fleet of more than 750 aircraft over the next decade.

During Army operational testing in 1995, all six Longbow Apache prototypes competed against standard AH-64A Apaches. The threat array developed to test the combat capabilities of the two Apache designs was a postulated 2004 lethal and digitized force consisting of heavy armor, air defense and countermeasures. The tests clearly demonstrated that Longbow Apaches:

• Are 400 percent more lethal (hitting more targets) than the AH-64A, already the most capable and advanced armed helicopter in the world to enter service.
• Are 720 percent more survivable than the AH-64A.
• Meet or exceed Army requirements for both target engagement range and for probability of acquiring a seleted target. The specific requirements and results are classified.
• Easily can hit moving and stationary tanks on an obscured, dirty battlefield from a range of more than 7 kilometers, when optical systems are rendered ineffective.
• Can use either its Target Acquisition Designation Sight or fire control radar as a targeting sight, offering increased battlefield flexibility.
• Have the ability to initiate the radar scan, detect and classify more than 128 targets, prioritize the 16 most dangerous targets, transmit the information to other aircraft, and initiate a precision attack -- all in 30 seconds or less.
• Require one third less maintenance man hours (3.4) per flight hour than the requirement.
• Are able to fly 91 percent of the time -- 11 percent more than the requirement.

With the addition of a new and highly sophisticated fire control radar (FCR), more commonly called the Longbow Fire Control Radar, the AH-64D has become the most advanced aerial fighting vehicle in the world. The FCR provides the Apache with the ability to detect, classify and prioritize stationary and moving targets both on the ground and in the air. With state of the art fire control, digital communications, automatic target classification and many other up to date features, the AH-64D Longbow Apache will dominate the battlefield for years to come.

The AH-64D Apache Longbow increases combat effectiveness over the AH-64A by providing a more flexible digital electronics architecture and integrating computer-based on-board Built-In Test Equipment (BITE), Automatic Test Equipment (ATE), and hard copy operator or Interactive Electronic Technical Manual (IETM) troubleshooting/maintenance manuals that will easily accommodate changes resulting from system growth. In addition, upgrades to electrical power and cooling systems and the expansion of the forward avionics bays to accommodate the installation of the FCR, and provide for future growth. Navigation system accuracy is improved through integration of a miniaturized integrated Embedded Global Positioning System (GPS)/Inertial Navigation Unit (INU) (EGI), and an improved DOPPLER Velocity Rate Sensor (DVRS).

The fully integrated AH-64D without Longbow Mission Kit incorporates greater ordnance capability and flexibility than the AH-64A by utilizing the family of Semi-Active Laser (SAL) missiles (including the HELLFIRE II) and Longbow HELLFIRE RF Missile. The AH-64D without Longbow Mission Kit can operate in harmony with the FCR-equipped AH-64D and can accept a target hand over and fire the Longbow missile with minimum exposure to hostile forces.
The AN/APG-78 FCR is a multi-mode Millimeter Wave (MMW) sensor integrated on the Apache Longbow with the antenna and transmitter located above the aircraft main rotor head. It enhances Longbow system capabilities by providing rapid automatic detection, classification, and prioritization of multiple ground and air targets. The radar provides this capability in adverse weather and under battlefield obscurants. The FCR has four modes: (1) the Air Targeting Mode (ATM) which detects, classifies, and prioritizes fixed and rotary wing threats; (2) the Ground Targeting Mode (GTM) which detects, classifies, and prioritizes ground and air targets; (3) the Terrain Profiling Mode (TPM) which provides obstacle detection and adverse weather pilotage aids to the Longbow crew; (4) and the Built in Test (BIT) Mode which monitors radar performance in flight and isolates electronic failures before and during maintenance.

The combination of the integrated FCR, LBHMMS and the Apache aircraft enhances battlefield awareness by providing coverage of the battle area at extended ranges, by reducing operational dependence on weather and battlefield conditions, and by rapid display of detected targets. It further improves the Longbow system's war fighting capability and survivability by providing rapid multi-target detection and engagement ability, navigational aids, and a fire-and-forget weapon delivery system.


The addition of the Longbow FCR provides a second and completely independent target acquisition sensor which may be operated by either crew member or combined to provide a degree of multi-sensor synergy. When operated independently, the pilot could use the FCR to search for air targets in the ATM mode while the copilot/gunner (CPG) searches for ground targets using the Target Acquisition Designation Sight (TADS).

Using both TADS and the FCR together combines the unique advantage of each sight. The rapid search, detection, classification, and prioritization of targets by the Longbow FCR can then be quickly and positively identified by using the electro-optics of TADS. The center of view can be focused on the location of the highest priority target and the CPG, at the touch of a switch, can view either display. Alternately, the FCR centerline can be cued to the TADS so that a rapid and narrow search could be made of a suspected target area.


The RFI is an integral part of the Longbow FCR. It has sensitivity over an RF spectrum to detect threat emitters when a threat radar is in a search and acquisition mode and also when the threat emitter is "looking" directly at and tracking the Longbow system. The RF band has been extended over that which was developed for the OH-58D Kiowa Warrior at the low end of the RF spectrum to detect newly identified air defense threats. The RFI has a programmable threat emitter library to allow additional threat signatures to be stored and/or updated.

The Materiel Fielding Plan (MFP) is essentially a one-stop reference for all fielding activity requirements. It shows who develops, fields, receives, and stores a piece of equipment and its associated tools, test equipment, repair parts, and training devices. The MFP will outline what the piece of equipment is used for, who uses it, who repairs it, the maintenance and supply structure which will be in place to provide life cycle support, and the training requirements inherent to the system. Several draft version MFPs are published per the documents listed above in order to generate a dialogue between the developer and the end user in order to simplify and expedite the fielding process.

The Office of the Deputy Chief of Staff for Operations and Plans (ODCSOPS) makes the decision as to what units receive the AH-64D and in what order. The AAH PMO publishes and distributes MFPs based on ODCSOPS' schedule. The fielding schedules change from time to time, and the schedule in the MFP is, therefore, current as of the publishing date. The First Draft for each MACOM's MFP is published approximately 26 months before the first aircraft and equipment are fielded to a MACOM. A MACOM's Final MFP is published approximately 8 months prior to its first-unit fielding. The fielding schedule as of 1 June 1997, is attached. It does not include the aircraft destined for the TRADOC training fleet at Ft. Rucker. Ft. Rucker begins receiving its AH-64Ds in June 1999; the TRADOC First Draft MFP left the AAH PMO in May.
Source-McDonnell Douglas, U.S. Army, Jane's Defence
