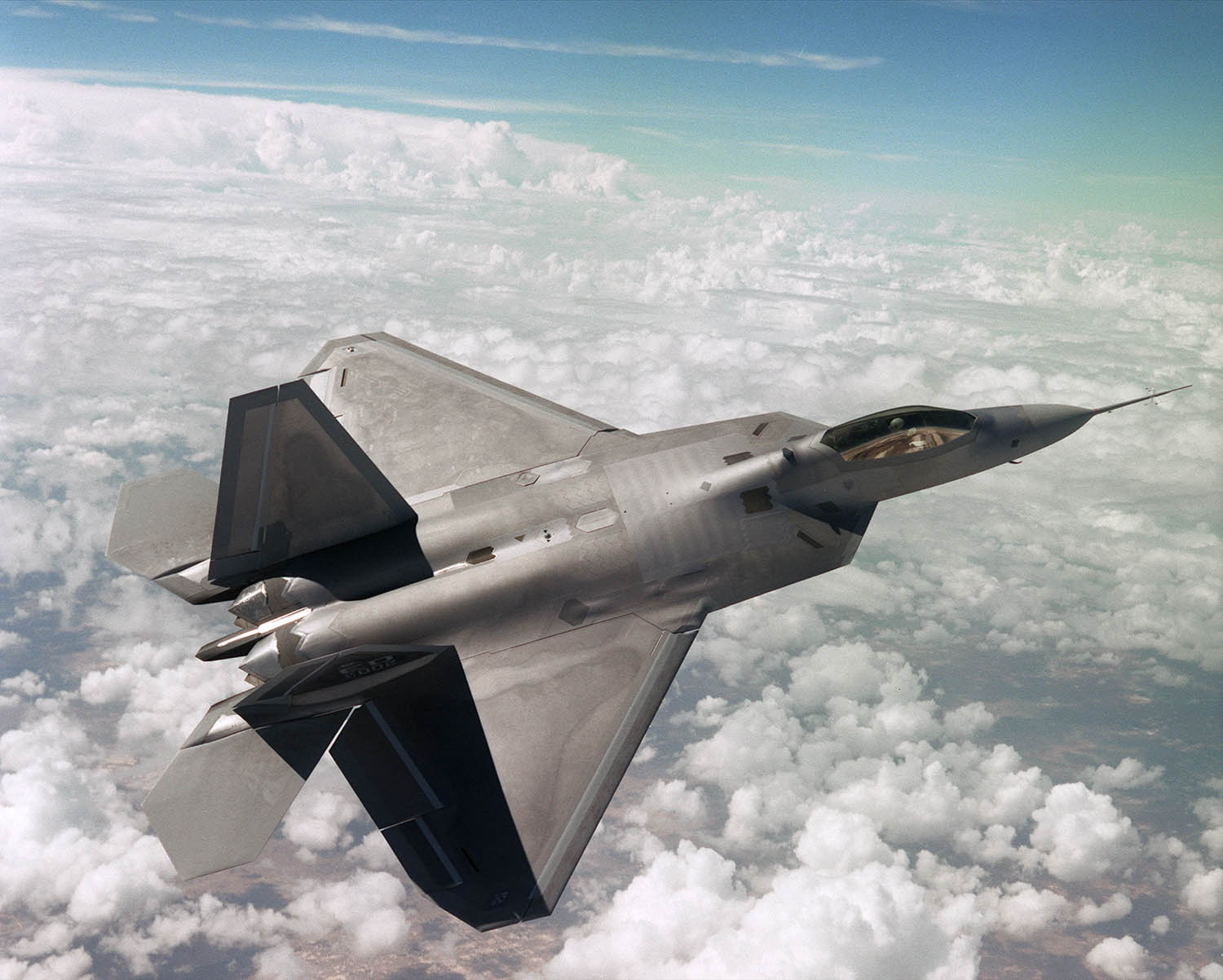

| Aircraft | F-22 "Raptor" (Lockheed/Boeing) |
| Type | Stealth Fighter |
| Year | May 1997 |
| Engine | Two 155kN (35,000 lbs. st.) Pratt & Whitney F119-PW-100 afterburning turbofans : |
| Wingspan | 13.56m (44 ft. 6 in.) |
| Length | 18.92m (62 ft. 1 in.) |
| Height | 5.00m (16 ft. 5 in.) |
| Weight | MTOW 27,716 kg (60,000 lbs.), empty 13,608 kg (30,000 lbs.) |
| Max. speed | (in supercruise) Mach 1.58, (with afterburning, at 9,150m (30,000ft.)) Mach 1.7, (at sea level) 1,482 km/h (921mph) |
| Service ceiling | 15,240m (50,000 ft) |
| Crew | 1(F-22A), 2(F-22B) |
| Armament | One M61A2 20mm gun
two JDAM 1000 PGM's four AIM-9 or four AIM-120 AMRAAM AAM's or six GBU-32 JDAM 1000 PGMs |
Although the two YF-22A's were constructed largely of metal, some 28%
of the F-22A/B airframe will comprise composites. The angular design incorporates
low observables in its construction and configuration, the latter having
been refined somewhat for production aircraft. Maneuverability is enhanced
by a triplex digital FBW flight control system and two dimensional thrust-vectoring
exhaust nozzles, while the advanced technology reheat powerplants allow
the aircraft to operate in supercruise (supersonic cruise without afterburner
augmentation).
