Coupling Analysis
There are 2 phases of coupling analysis,
namely in the Design Level and Implementation Level, First we will look at the
coupling analysis in the Design phase
Design
Phase Coupling Analysis
In

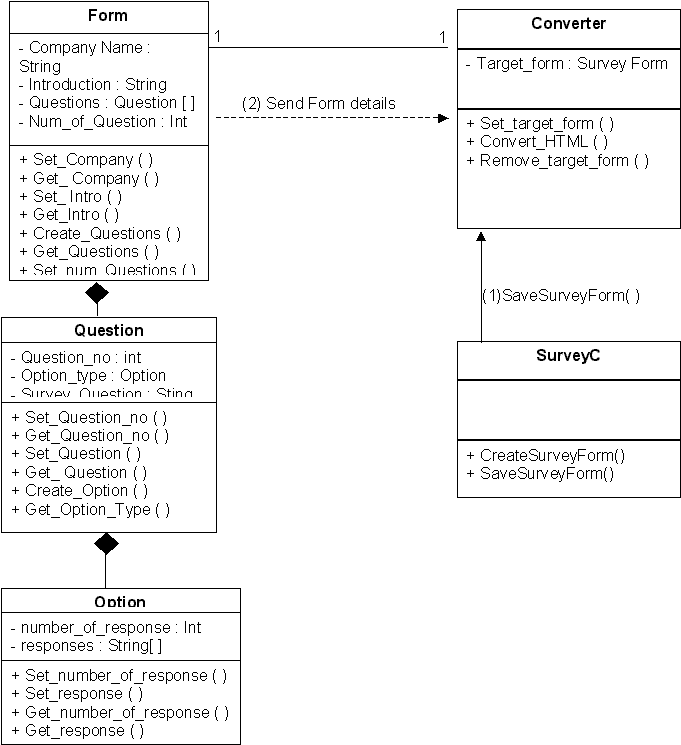

the class diagram above , there basically 3 main classes, “Survey Form Class
and “Converter Class” and “SurveyC Class”. The “Survey Class” has
2 more subclass, “Question Class and “Option Class”.
There
is only one conversion for one
survey form created, therefore both class exhibit a one-to-one relation
which is represented by the corresponding instance connection.
When
a SaveSurveyForm() is called, in order for the
“Converter Class” to perform a conversion, the “Converter
Class” has to obtain the details from the “Form Class”. This is done by
the corresponding message connection to send the details of the “Form
Class” to the “Converter Class” for the conversion to be carried out.
Then
the “Converter Class” will use the data obtained to do the conversion.
There is no need for the “Converter Class” to return any data since there
will not be any modification to the data. The coupling type exhibited
is therefore data coupling.
Implementation
Phase
1)
Parameter Passing
At

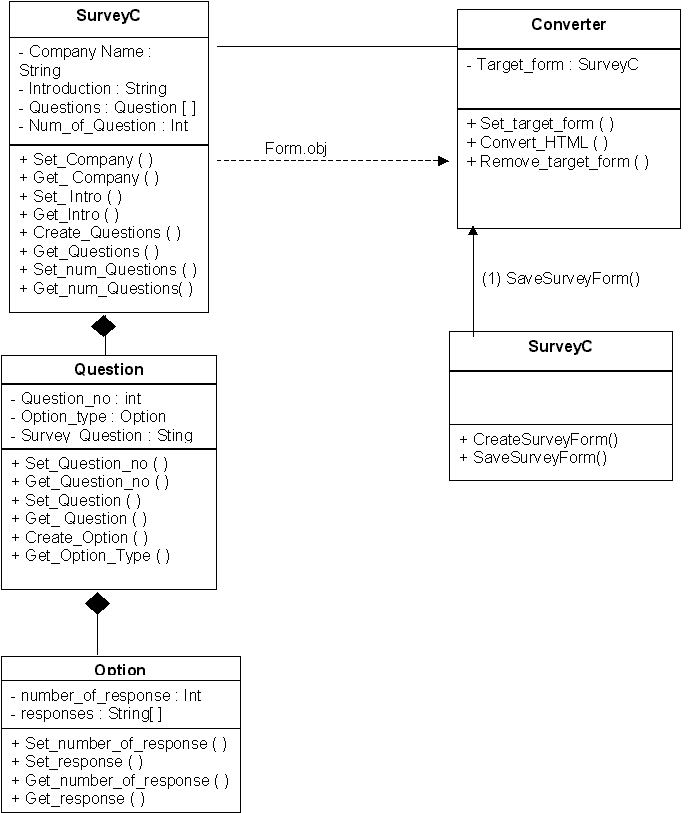

the implementation phase, parameters passing is used as shown in the diagram
below. An object class
(Form.obj)
is passed from the “Survey Class” to the “Converter Class”.
Parameter
Passing will ensure that the Converter Class cannot refer to data within the
Survey Class unless the data is in the object being transferred thereby
achieve low coupling.
Conclusion
From
the above analysis, the only coupling that identified is Data Coupling which
is a form of low coupling. Such low coupling is desirable so that we will be
able to change one component with the minimum risk of changing another
component. The system is also easier to maintain because while maintaining a
component we don’t have to worry about the internal coding of any component.
