GT G60 | History | Problems | G60 Variants

The G60 supercharger contains many items which wear out, these include the 5 oil seals, the 5 bearings, the belt and the apex seals. All of these items can be replaced with a rebuild.

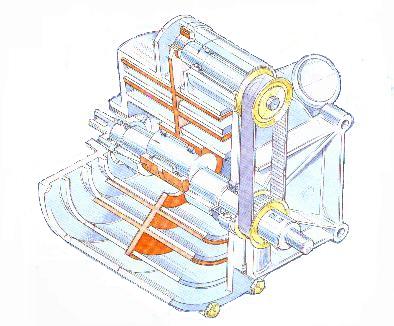

Cutaway picture of a G60 Cutaway picture of a G60



List of bearings and oil seals
Displacer seal
030 145 413 GER 827 SSPVW 30-42-5.5/6 PCFP (2 of these in each charger)
Outlet Case seal
030 145 41? 827 S 20-35-7 P FP X GOE GER VW-AUDI insignia
Pulley case seal outer
030 145 410 827 SROW 30-45-6 PCFPX -> GOETZE 3955 GERMANY VW-AUDI insignia
Pulley case seal inner
030 145 414 GERMANY SKW 30-52-7/8 PC FP GOETZE 4007 VW-AUDI insignia

Displacer bearing
FAG 10-6879A E.E GERMANY
Outlet case bearing
FAG NU202E F.E GERMANY
Pulley case bearing
FAG 6304E.C3 C.E GERMANY
