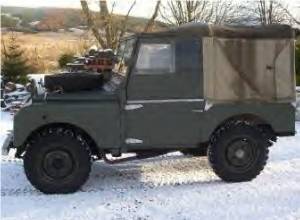

Series I

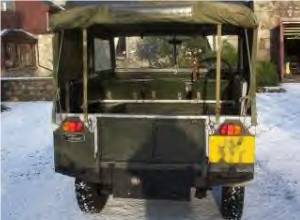

Near Side Rear

Series I
Production 1948-1958


Wheelbases
80"; 86"; 88"; 107"; 109"

Engines
1595cc 4 cyl petrol; 1997cc 4 cyl petrol;
2051cc 4 cyl Diesel

Bodies
Pick up; Station Wagon; Hard Top; Soft Top; Truck Cab; Various Special Bodies

History
The first vehicles were an open design on the 80" chassis with the Rover 1.6L petrol engines. A full-time 4WD system had been developed with a free wheeling hub mechanism on the front wheels.

Series I grille The early production models can be identified by the headlights located behind the steel mesh radiator grille and the sidelights mounted on the bulkhead. This was to altered so that the headlights come through the grille as in the picture, this was again redesigned in later Series 1 models to an inverted T shape grille with the headlights either side of it.

Coachbuilder Tickford were commissioned in 1949 to design the first Station Wagons. These models used the 80" chassis, had space for 7 people in cramped conditions, the all-metal rear body was built on a wooden frame. Production problems forced it to be dropped in 1951 with 641 been produced. The Station Wagon design was updated and reintroduced in 1954 on the 107" chassis seating 10 people.

Series I vehicles were also produced under licence in Belgium by Minerva and in Germany by Tempo.


Specs Comparison Table
Wheelbase 80" 86" 107" 88" 109"
Production 1948-1951
1952-1953
1953-1956 1956-1958 1956-1958 1956-1958
Engine 1.6l petrol
1952 0n 2.0l petrol
2.0l petrol 2.0l petrol
2.0l D
Weight 1136kg 1353kg 1353kg 1339kg 1497kg
Clearance
Wading Depth
216mm
?
203-222mm
?
203-222mm
?
222mm
?
222mm
?
Height
Width
Length
1790mm
1.55m
3.35m
1910mm
1.59m
3.58m
1910mm
1.59m
3.58m
1910mm
1.59m
3.62m
1980mm
1.59m
4.41m
Track
Turning Circle
1.27m
10.5 - 12.2m depending on tyres
1.30m
11.58m
1.30m
14.32m
Gearbox Single helical constant mesh, 3rd & 4th syncromesh
1948-50 Full time 4-wheel drive, with centre diff locked via chain pull
From 1951 Selectable 4-wheel drive via yellow and red knobs
Single helical constant mesh, 3rd & 4th syncromesh
Selectable 4-wheel drive via yellow and red knobs
Body
Characteristics
All Series I models have straight body sides with no sills below the doors
Short panel between rear wheel arch and door, one piece wings with no top seam, angled door shut line 1948-51 Grille covers headlights 1952-53 Side lights in wings Straight vertical door shut line. Longer panel in front of rear wheel arch with 3 rivets visible Straight vertical door shut line. Load body is separate from cab 1 large airflow hole in front panel.
Front wing securing bolt is further back from wheel arch.
Front door buffer stiffener plate spot-welded on.
Insurance Group 4-5
