Section 12

UNIX NETWORK BASICS

Objectives

The aim of this section is to

Introduction

In this day and age it is rare for a UNIX machine to be totally unconnected to other machines. In the commercial environment one of the major uses of UNIX is as a network file server. Networks are only going to become more pervasive as time progresses. The System Administrator is typically involved very closely with the network, either through setting up machines to talk to the network or even having to look after the network. This and the next section will introduce you to the intricacies of UNIX networking.

What is a Network?

A network is simply a collection of machines connected in some way that allows them to communicate with each other and share information. To do this the machines have to be connected in some way that allows communication, and have an agreed upon a language to talk when they do communicate.

Characteristics of a network include

There are at least two categories in which networks are placed Separate LANs can be connected together to form a WAN as show in Diagram 12.1.


Diagram 12.1.LANs and WANs.


Some Definitions

Like any field of computing, networking has its own terminology. This section provides definitions for some of the terms you'll come across.

TCP/IP and the Internet

Most versions of the UNIX operating system comes with in-built support for networking. The default network protocol that UNIX systems are typically designed to talk is TCP/IP. TCP/IP is more correctly called the Internet Protocol Suite.

TCP/IP is the protocol used by the Internet, a network of networks spread throughout the world connecting two million machines with over twenty million users. It is not necessary to be connected to the Internet to use TCP/IP. (However being able to connect to the Internet is one of the advantages of using TCP/IP.)

The Protocols of TCP/IP

TCP and IP are two of the many protocols that make up the suite of Internet protocols. Table 12.1 lists some of the others. Some of these protocols will be discussed in detail in the next section. Diagram 12.2 displays the four different layers of TCP/IP and where some of the protocols fit within those layers.

TCP/IP is an example of a layered communications suite. The advantage of this layered approach is that the protocols at higher levels can safely assume that the lower level protocols will carry out their responsibilities. For example TCP does not need to know anything about the hardware being used because it is hidden by the layers below it.


Diagram 12.2. Four Layers of TCP/IP.

TCP/IP uses four layers

In most instances you will come across TCP/IP running on an ethernet based local area network. However TCP/IP is not limited to ethernet It can run over various different types of communications hardware including modems, serial lines, fibre optic cable, microwave and satellite links.

Serial line internet protocol (SLIP) and Point to Point Protocol (PPP) are two protocols that allow TCP/IP to be run over serial lines and modems.


Transport Protocols

The protocols TCP and UDP are the major transport protocols of the Internet protocol suite. The majority of the higher level application protocols use one of TCP or UDP. TCP and UDP differ in much the same way as the telephone and postal services.

A TCP connection is like a telephone connection. Before any information is sent the two ends connect and make a channel (sometimes referred to as a stream) and all information sent between the two hosts is sent down that stream. TCP performs checks that make sure that all the information sent down the channel actually arrives at the destination in the same order as it was sent.

UDP is like the postal service in that all information is sent in individual messages (called packets or datagrams). These datagrams do not always take the same route when going from one point to another.

UDP is an unreliable, connectionless protocol. TCP is a reliable, connection oriented transport protocol.

UDP is used to send small infrequent messages while TCP is used in situations where large amounts of information must be transferred safely.


Application Protocols

At the top layer of the TCP/IP protocol stack are the application protocols. These protocols specify higher level application specific protocols. Examples include smtp (the simple mail transfer protocol) that specifies how mail messages are to be exchanged.
Protocol	Full Name			Purpose

SMTP		Simple Mail Transfer Protocol	defines the format of mail messages and the commands used to send and receive mail messages
Telnet		telnet				defines a protocol used to login remotely to other machines on the network
TFTP FTP	(Trivial) File Transfer Protocol	protocol for transferring files between two machines
TCP		Transmission Control Protocol	a connection oriented, reliable, full-duplex byte stream service
UDP		User Datagram Protocol		connectionless, unreliable datagram service
IP		Internet Protocol		ensures that individual datagrams get to their destination
ICMP		Internet Control Message Protocol	used to send the error/control messages for the TCP/IP software
ARP/RARP	(Reverse) Address Resolution Protocol	performs the translation from Internet addresses to ethernet addresses (specific to hardware)

		Table 12.1. Some of the Internet Protocols.

RFCs

The standards used on the Internet are specified in documents called Request for Comments (RFCs). Someone proposing a new standard will write and submit an RFC. The RFC will be distributed to the Internet community who will comment on it and may suggest changes. The standard proposed by the RFC will be adopted as a standard if the community is happy.

Diagram 12.2 includes RFC numbers that correspond to the different protocols. If you have access to the Internet you can anonymously ftp RFCs from a number of well-known sites (including archie.au).

RFCs can and often are very technical and hard to understand unless you are familiar with the area (the RFC for ftp is about 80 pages long).


Names and Addresses

Every machine on a network has to have a unique identifier. This unique identifier is used by the network protocol to deliver information to the host and used by the network users so they know which machine they are using.

TCP/IP provides two types of unique identifier for every host


Addresses

TCP/IP addresses are currently 32 bit numbers that are usually represented as four 8 bit (octets) numbers separated by full stops e.g. 132.22.42.1. Using 8 bits the maximum range that can be represented is 0-255 (256 numbers).

Since IP is the protocol designed to route information to a particular host this address is sometimes referred to as the IP address.

Every machine on a network must have a unique IP addresses. When setting up a LAN this can be reasonably simple and IP addresses can be assigned by the Systems Administrator.

However the Internet is classed as one network so every machine on the Internet must have a unique IP address. IP addresses for a LAN are assigned by a central authority to ensure that no two machines have the same address.

This central authority generally does not (currently) hand out individual IP addresses. A site will usually apply for a network address (for example, CQU's network address is 138.77). This network address provides you with a set of IP addresses that can be used for the entire LAN. There are currently three types of network address being handed out. The type of network addresses assigned depends on the size of a site.

There are three network address classes that are assigned to sites, classes A, B and C (there are two others but they aren't normally used). Each class has a maximum number of machines that can be connected. Table 12.2 lists the types of network addresses and their characteristics.

The current problem with Internet addressing is that there isn't a network class for sites that have more than 254 hosts but less than 64,000 hosts (mainly medium size companies).

	Address Class	Value first byte	Number of Hosts

	A	1 to 126	16 million
	B	128 to 191	64,000
	C	192 to 223	254

		Table 12.2. IP Address Classes.
The Central Queensland University has been assigned the Class B address 138.77. Any machine that has an IP address starting with 138.77 is part of the University network.

Some network addresses are reserved for specific purposes


Names

IP addresses are fine for machines but the users also need a mechanism by which they can identify machines and trying to remember 138.77.1.1 is not easy. For this reason machines using TCP/IP also have host names.

A host name under TCP/IP follows the format hostname.site.domain.country.

For example the CQU machine jasper has the fully qualified name jasper.cqu.edu.au, where jasper is the hostname, cqu is the site name, the domain is edu and the country is au.
		Domain	Purpose

		edu	Educational institution (University, etc)
		com	Commercial company
		gov	Government department
		org	Non-profit organization

			Table 12.3. Example Domain Names.


		Country Code	Country

		nothing		United States
		au		Australia
		uk		United Kingdom
		in		India
		ca		Canada
		fr		France
		de		Germany
		ch		Switzerland
		no		Norway
		se		Sweden
		nz		New Zealand

			Table 12.4. Example Country Codes.
jasper.cqu.edu.au is a fully qualified name and uniquely identifies the machine jasper on the CQU campus to the entire Internet. There cannot be another machine called jasper at CQU. However there could be another machine called jasper at James Cook University in Townsville (its name would be jasper.jcu.edu.au). A fully qualified name must be unique.

It is not always necessary to specify a fully qualified name. If a user on aldur (see Diagram 12.3) enters the command telnet jasper it will be assumed that because it isn't fully qualified the user means the machine jasper within the current domain (cqu.edu.au).


Name Resolution

IP always uses the IP address and not the name when it is sending information. Users on the other hand can choose which scheme they wish to use. A hostname is always resolved to its corresponding IP address before the command is executed. For example the commands telnet jasper.cqu.edu.au and telnet 138.77.1.1 have exactly the same effect (to connect to the machine with the IP address 138.77.1.1). How is the resolution performed?

The TCP/IP software performs name resolution. It accepts the name jasper.cqu.edu.au and then resolves that into the machine's IP address. There are two methods that can be used to perform this translation from hostname to IP address


The /etc/hosts File

A UNIX machine maintains a text file /etc/hosts that has one line per host. Each line is of the format IP_address hostname. For example the hosts file of the machine aldur looks like this
	127.0.0.1		localhost	loopback
	138.77.36.29	aldur	aldur.cqu.edu.au
	138.77.1.1	jasper	jasper.cqu.edu.au
	138.77.37.28	pol	pol.cqu.edu.au
When a user on aldur enters the command telnet jasper.cqu.edu.au the software first looks in the hosts file for an entry for jasper. If it finds an entry it obtains jasper's IP address and then can execute the command.

If it can't find an entry for a machine there are two options


The DNS

The fact that there are over two million machines connected to the Internet implies the possibility of some very big /etc/hosts files. In fact there is no machine on the Internet that has a hosts file that contains entries for all the machines on the Internet. Not only would the files be huge there is no easy way to keep them up to date.

For example:
How does an administrator in Rockhampton, Australia know when a small company in Bolivia goes bankrupt and all its machines are sold and are no longer on the net?.

DNS is a hierarchical hostname management system that allows each site (or part of a site) to maintain its own IP address information without having to inform some central site.

Instead each network maintains its own authoritative name server that can perform the translation from hostname to IP address for that network. If a local machine changes its IP address then only the local name server is updated. Other sites will know how to contact the networks name server by using the DNS.

For example:
At CQU the Mathematics & Computing Department might maintain a name server for its network (kknuth). Up the hierarchy CQU may contain a name server for the entire University (jasper). jasper would now that the name server for the Maths & Computing network is kknuth. jasper would not know anything about the Maths & Computing network.

Moving further up there might be a name server for all the Queensland Universities that would know the name servers for each individual Queensland University.

If someone on a machine at Queensland University types the command telnet aldur.cqu.edu.au the user's machine must obtain the IP address for aldur.cqu.edu.au before it can carry out the command. It will do this using the following steps

The requesting machine will keep a cache that contains the name/address translation for aldur. This is so the next request for aldur does not have to follow the above steps. This in cache copy will be lost when the power is lost.

A machine specifies its name server in the file /etc/resolv.conf. The resolv.conf file for aldur might contain

nameserver	138.77.36.1	# Maths & Computing nameserver
nameserver	138.77.1.1	# CQU name server
Notice that the machines in the resolv.conf file are specified by their IP address and not their hostnames?

Exercise 12.1. You are logged into the machine pol.cqu.edu.au and you enter the command telnet sunsite.unc.edu but you get a message host not found. What might have gone wrong (there are a number of reasons)?


Routing

Routing is the act of deciding how each individual datagram sent finds its way through the multiple different paths to its destination. What follows in this section is a simplified explanation of that process.

TCP/IP is based on a model in which smaller individual networks are connected together to form larger networks. Diagram 12.3. is a small section of the network at the Central Queensland University.

The CQU campus is divided into a number of separate networks (LANs) all using ethernet. Each separate network has its own network number. For example the Maths & Computing Department network is 138.77.36. All machines in the Department have IP addresses that start with 138.77.36.

Each individual network is limited to 254 machines because two of the numbers 0 and 255 are reserved for broadcast addresses.

Any machine on an ethernet LAN can send information straight to another machine on that LAN. When a machine places a packet on an ethernet network every host on that LAN can see that information. However they will ignore it unless it is specifically addressed for them (or they have been programmed to look at everything).

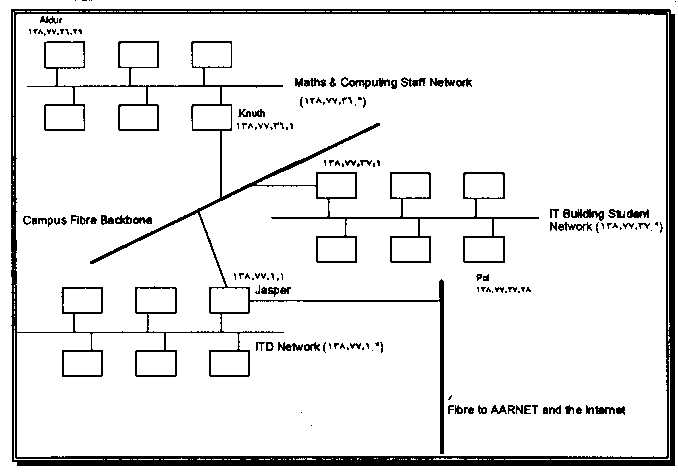

Diagram 12.3. Part of the CQU Campus Network.

For example when the machine aldur (138.77.36.29) from diagram 12.3 wants to send some information to the machine 138.77.36.1 it places the packets on the ethernet. All the machines on the LAN will see the information but only 138.77.36.1 will accept the information.

When a packet is placed onto ethernet every machine on the network is able to view that packet. In practice only the machine to which it is addressed will ask for the packet.
However it is possible to set up machines to accept all packets placed onto the net, not just the packets destined for it.
In this way criminals or idiots can intercept information they were never meant to have. This is one method of obtaining passwords and other confidential information.
The solution is implement some form of encryption so that even if they obtain the information they can't use it.

Figure 12.1. Security Problem with Ethernet.

For two machines that reside on the same physical network both machines will know the address of the other and the exchanging of information is fairly simple. But the Internet is a collection of hundreds and hundreds of connected companies and institutions, many of which are at least as large as the CQU net. Each of these networks is in turn made up of sub-nets which in turn have hundreds of machines connected.

How does information find its way from one machine to another? It is obvious that every machine connected to the Internet CANNOT know about the address or the route to every other machine.

The gateway machine is basically the connection from one network to another. It is convention that the gateway machine (it might be a computer or a purpose built device) be the first machine on the network. For example the gateway machine for the Maths & Computing LAN is 138.77.36.1.

If a user on aldur wants to send some information to the machine pol it would place the information onto the ethernet with an address 138.77.37.28 (after already going through the name/address translation scheme outlined above). All the machines on the LAN would ignore the packet (because of the address) except the gateway machine. It would see that the information is meant for another network.

The gateway machine would pick that packet up and place it onto the outside net (in this case the campus fibre backbone). All the machines connected here would ignore it except the gateway machine for the 138.77.37 network that would recognise the address as one of its own. The gateway machine 138.77.37.1 would then place the packet onto the ethernet for the 138.77.37 network and the machine with the corresponding address (pol) would recognise it and snaffle it.

The process works the same way if you are sending information across the world.

Exercise 12.2. What would happen if a user on aldur wanted to send information to the machine sunsite.unc.edu?


Hardware Routing

When a host recognises a packet as its own (as is mentioned in the above section) it isn't actually using the IP address for recognition. When using ethernet as the hardware medium the ethernet address will be used.

Every ethernet card has built into it a 48 bit address (called an Ethernet address or a Media Access Control address). The high 24 bits of the address are used to assign a unique number to manufacturers of ethernet addresses and the low 24 bits are assigned to individual ethernet cards made by the manufacturer.

Every packet of information sent on ethernet contains a source and destination MAC address. If the card in your machine recognises the destination MAC as its own it passes the packet to the protocol in the next layer (refer to Diagram 12.2).

ARP, the address resolution protocol, maintains tables of translations between IP address and Ethernet address. These tables are dynamic and are added to as different machines are contacted. UNIX supplies a command arp that can be used to examine these tables. arp -a will list the current entries. Refer to your manual pages for more information.

For example:

bash$ arp -a
Address         HW type          HW address           Flags
138.77.37.1     10Mbps Ethernet  00:00:0C:03:79:2F      C
bash$ telnet bertha
.
.
bash$ arp -a
Address         HW type          HW address           Flags
138.77.37.1     10Mbps Ethernet  00:00:0C:03:79:2F      C
138.77.37.37    10Mbps Ethernet  00:40:F6:60:4D:A4      C
Exercise 12.3. If you are connected to a LAN use the arp command to examine the tables of your machine.

Exercise 12.4. Use a command to connect to a machine not listed in the tables and reexamine the arp tables to see if it has been added.


Network Services

We've looked at how different hosts are identified and taken a simple look at how information is routed from one host to another. In this next section we look at how the various network services are provided. When you telnet to another machine, how does it work? When you send an e-mail message to a user at another host, how is it delivered?

The provision of network services like ftp, telnet, e-mail and others relies on three different components

Network client programs and network daemons are completely different programs and will generally use different ports.

For example:

What happens when a user types the following command?
telnet jasper
First they are running the telnet client program. This program will get the IP address of the machine to connect to, connect to a port on the local machine, and then contact the telnet daemon on the remote machine.
The inetd daemon will be waiting on a specified port (23) for a connection request. When it gets one it will start up the telnet daemon.

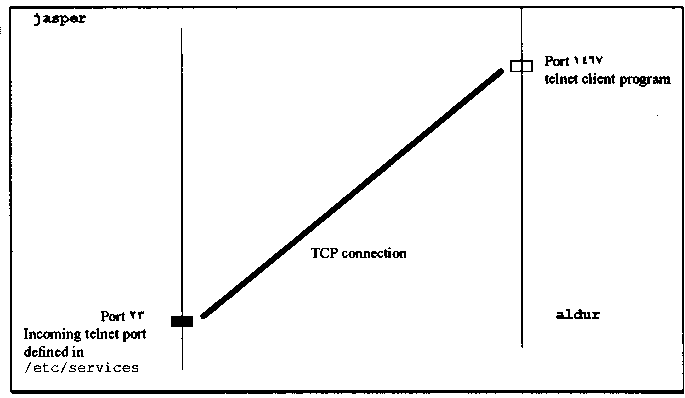

Diagram 12.4. Example telnet Connection.

The following are commands taken from the actual machines to demonstrate the above diagram. The netstat command is discussed later in this section. However you can see the port numbers that are being used (jasper.telnet means that the telnet port is being used)
aldur$ telnet jasper
....login procedure onto jasper
jasper$ netstat | grep aldur
Active Internet connections  these two header lines have been added for understanding
Proto Recv-Q Send-Q  Local Address          Foreign Address        (state)
tcp        0      0  jasper.telnet          aldur.cqu.EDU.AU.1467 ESTABLIS
back on aldur
aldur$ netstat
Active Internet connections
Proto Recv-Q Send-Q  Local Address          Foreign Address        (state)
tcp        0      0  aldur.cqu.EDU.AU.1467  jasper.cqu.EDU.A.telne ESTABLIS

Ports

Any packet sent on a TCP/IP network is identified by five individual bits of information Every program that talks to the network is assigned a port number. It is through this port that all information flows from the computer to the outside world and vice versa (some programs might have two ports, one for outgoing and one for incoming). An individual computer will have approximately 64,000 ports to use (the port address is a 16 bit number). Some of these ports are used for predefined purposes. The ports 0-256 are set aside for well known Internet services (e.g. telnet, FTP, SMTP). Ports in the range from 256-1024 are used for UNIX specific purposes and anything above can be used by user programs.

Different protocols use predefined ports on which they listen for incoming calls. For example if you telnet to another machine your machine first contacts the process listening on port 23 of the remote machine to negotiate the connection. Table 12.5. lists some of the other well known ports.

		Port Number	Purpose

		20		ftp-data
		21		ftp
		23		telnet
		25		smtp (mail)
		119		nntp (network news)

			Table 12.5. Reserved Ports.
Which port is used by which protocol is stored in the file /etc/services. Each line in the services file is of the format service-name port/protocol aliases, where service-name is the official name, port is the port number that it listens on, protocol is the transport protocol it uses and aliases is a list of alternate names.

For example:

	The following are extracts from an example /etc/services file
	echo       7/tcp
	echo       7/udp
	discard    9/tcp      sink null
	discard    9/udp      sink null
	systat     11/tcp     users
	daytime    13/tcp
	daytime    13/udp
	ftp-data   20/tcp
	ftp        21/tcp
	telnet     23/tcp
	smtp       25/tcp     mail
	nntp       119/tcp    usenet 	# Network News Transfer
	ntp        123/tcp              # Network Time Protocol
You should see the similarities between the numbers listed in this listing and those in Table 12.5.


Network Daemons

The various network services provided are usually supplied using a variety of network daemons. For a particular service to be available (e.g. telnet ftp mail etc) the correct daemon must be listening to the correct port. Table 12.6 contains a list of some of the network daemons (there are many others).
	Daemon Name	Purpose

	inetd		Internet services daemon used to manage most of
			  the TCP/IP daemons.  Configured using the
			  /etc/inetd.conf file
	rwhod		periodically sends information to every other host
			  on the network about who is logged in, how long
			  they've been logged in etc.  (used by the rwho
			  and ruptime commands)
	routed		maintains dynamic routing information
	named		used by the DNS to contact other machines
			  (see previous section)
	timed		used to ensure that the system clocks on all
			  machines are synchronised
	nfsd		handles requests for the network file system
	biod		used by NFS clients to do read ahead and write behind
	smtpd		accepts incoming mail messages
	telnetd		accepts incoming telnet requests

		Table 12.6. Various Internet Daemons.
For a particular protocol to work there must be a daemon running that is listening to the specified port to accept the information. There are two ways in which a daemon might be started To disable a particular protocol all you do is ensure that its daemon is not running. There are two basic methods for disabling a daemon

The /etc/inetd.conf File

The /etc/inetd.conf file specifies the daemons that the inetd daemon should execute when a request for a specific protocol has arrived. The inetd.conf consists of one line per network service using the following format

service-name socket-type protocol flags user server_program args

service-name corresponds to the name of the network service and is the same as the one listed in /etc/services. user is the username to run the program as. The following is from the inetd.conf file of one machine.

ftp    stream tcp nowait root /usr/sbin/in.ftpd    in.ftpd
telnet stream tcp nowait root /usr/sbin/in.telnetd in.telnetd
nntp   stream tcp nowait root /usr/public/bin/nntpd nntpd
Whenever the machine receives a request on a port the inetd daemon will examine the inetd.conf file to determine the program that should be executed to respond to the request. For example a request on port number 21 (taken from the /etc/services file) will be identified as a telnet request and the program to run for telnet is /usr/sbin/in.telnetd (taken from the /etc/inetd.conf file).

Exercise 12.5. The smtp protocol is used to handle electronic mail messages. Examine the entry for smtp in the /etc/services file. smtp must have a daemon program running to respond to requests. Find out where it is started on your machine.


Network Protocols

Each network service generally uses its own network protocol that specifies how the information is transferred. For example the ftp network protocol defines the commands that can be used to move files from machine to machine. The smtp network protocol specifies the format of mail messages and how they are moved from one machine to another.

The format of these Internet protocols is laid down in documents referred to as request for comments (RFCs). Each protocol will have its own RFC that describes it. RFCs are available off the network from a number of anonymous ftp sites including archie.au and ftp.lcs.mit.edu.

Some of these protocols smtp, ftp and nntp, are text based. They make use of simple text based commands to perform their duty. Table 12.7. contains a list of the commands that smtp understands.

	Command				Purpose

	HELO hostname			startup and give your hostname
	MAIL FROM:sender-address	start transaction from sender
	RCPT TO:recipient-address	name recipient for message
	VRFY address			verify deliverability of address
	EXPN address			expand mailing list address
	DATA				start text of mail message
	RSET				reset state, drop transaction
	NOOP				do nothing
	DEBUG [level]			set debugging level, default 1
	HELP				produce a help message
	QUIT				close SMTP connection

		Table 12.7. SMTP Commands.
When transferring a mail message the two daemons will connect and carry out a conversation using the above commands. Since these are straight text commands it is possible for a user to pretend to be a daemon.

For example: The following is the start of an example conversation between a smtp daemon and a normal user. The text in this font are explanations.

bash$ telnet aldur 25	connect to the smtp port (see /etc/services)
Trying 138.77.36.29 ...
Connected to aldur.cqu.edu.au.
Escape character is '^]'.
220 aldur.cqu.edu.au Amix Smail3.1.28.1 #2 ready at Sun, 28 Aug 94 12:04 EST
helo aldur	tell the machine who I am (the name of another machine not a user)
250 aldur.cqu.edu.au Hello aldur
mail from: god@heaven.com	this is who the mail is coming from
250  ... Sender Okay
data	I want to enter some data which is the message
503 Need RCPT (recipient)	can't do that yet, have to tell it who to send the message to
rcpt: david@aldur
500 Command unrecognized	oops, typed it wrong
rcpt to: david@aldur
250  ... Recipient Okay
data
354 Enter mail, end with "." on a line by itself
You have been a naughty boy	type in the message
.
250 Mail accepted
quit	bye, bye
221 aldur.cqu.edu.au closing connection
Connection closed by foreign host.
It doesn't take a genius to see the application some immature or morally corrupt people might use this "feature" for.

The above example makes use of a "useful" feature of the telnet command. By default the format for telnet is telnet hostname. When executed like this it connects to port 23 of the remote host since that is where the telnet daemon is listening. However it is possible to tell telnet to connect to another port using the format

	telnet hostname port-number
Exercise 12.6. Try doing the same task for ftpas was done above for smtp. What is the port number for the ftp daemon?


Some Useful Commands

This final section lists some of the commands that will be useful to you as both a Systems Administrator and a user.


netstat

The netstat command provides various types of information about the status of your network including

ping

The ping command is a simple utility that provides a simple test of whether or not you can talk to another machine. The format of the ping command is simply ping host and the output generally takes one of two formats There are two cases where ping might fail Exercise 12.7. Use the netstat command to find out the status of your network (if you are connected to one).

Exercise 12.8. Use the ping command to test a connection to a destination machine. Try to get both output formats discussed above (if you are not on a network try pinging the local host).


Conclusions

Learning how to manage a network is a subject in itself. In this section you have hopefully been introduced to the basics of UNIX and TCP/IP networking, including

Review Questions

12.1. Explain the terms gateway, router, port, protocol, daemon and bridge.

12.2. People are unable to telnet to the machine hades. The machine is connected to the network, turned on and every other network service is working. What could be wrong?

12.3. What is the purpose of TCP and UDP?

12.4. Explain how the hostname aldur might be resolved to its IP address.

12.5. Explain the relationship between the files /etc/services and /etc/inetd.conf

12.6. What are the four layers used by TCP/IP?

Previous | Next

David Jones (author)
Chris Hanson (html 09/09/96)
