| 1978 AM General current restoration in progress page 2 |

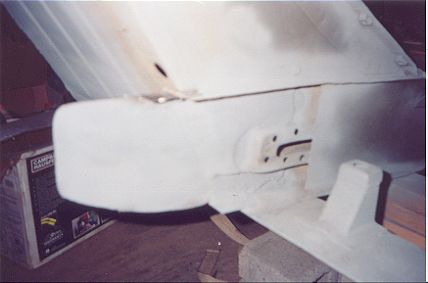

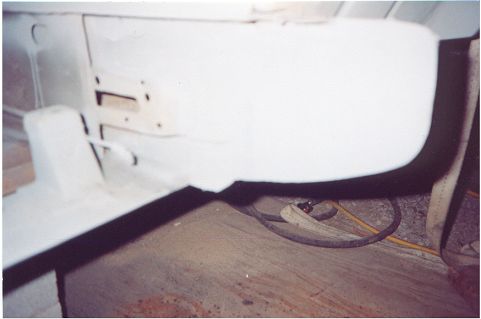

| Left and right views of frame lap plate after treating with cold galvanizing compound |

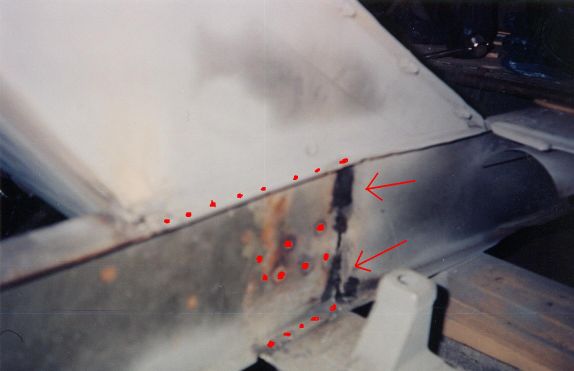

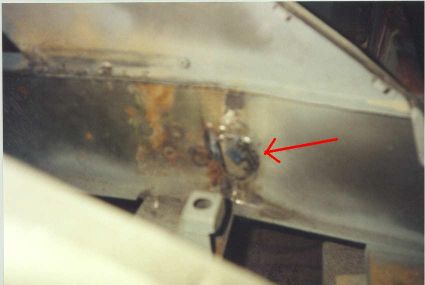

| Above: The frame spliced in and welded. Butt welded at the rear (arrows) and spot welded at the red dots. Right: The inside view of passenger side |

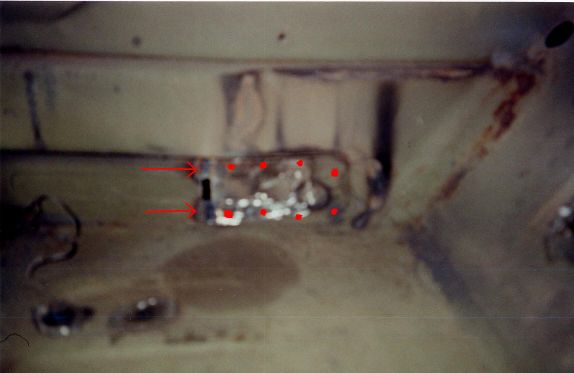

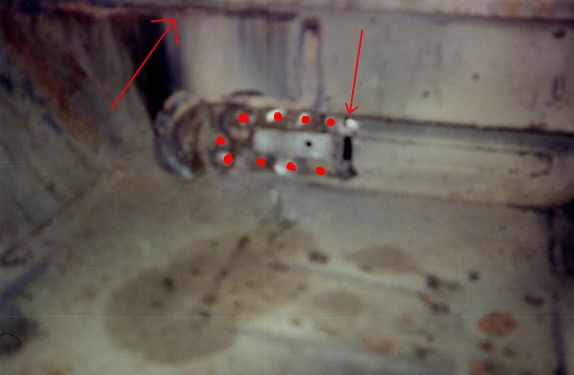

| Above is the final lap joint and on the right is the drivers side inside view of frame splice |

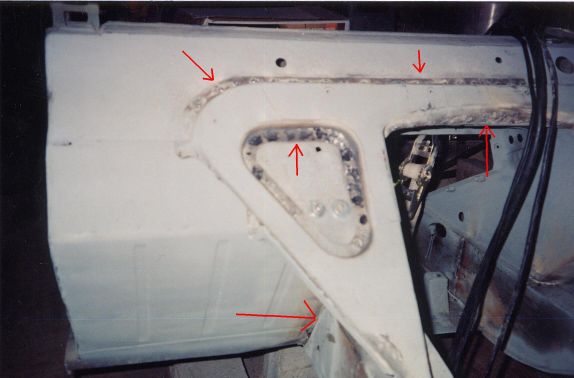

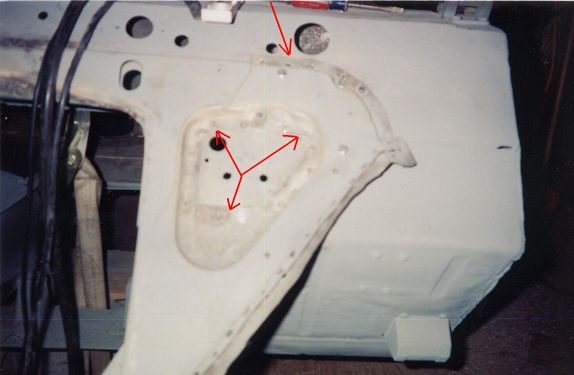

| The cowl assembly is spotwelded to the firewall. Arrows show flanges and frame weld joints. Bolts are used to hold cowl in exactly same position as original. |
|
|
 |
|
|
 |
 |
 |
 |
 |
 |
 |
 |
|
