K   I   T     C   O   M   P   O   N   E   N   T   S

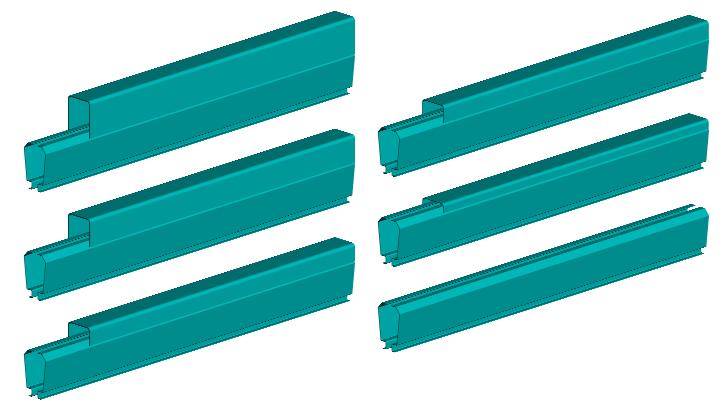

Rail Section

*  7 different steel rail sections *  The K Trac design gives consistent     angular sides that create easy roll *  Triangular robust joints in the bottom     profile allow different rail sections to     be bolted together in a run *  Tuck in tops maximize head room *  The K Trac design allows hanger     movement for easy installation *  The K Trac design allows the use     of short end trucks and trolleys *  K Trac is formed from high stength     wear-resistant steel

End Trucks and Trolleys

*  K Trac End Trucks and Trolley are     the industry's shortest, allowing more     room in which to operate *  No lateral guides nesessary due to the     K Trac accurate design *  Hardened nylon wheels contain     sealed ball bearings *  Slight axle pendulation keeps all wheels     on track *  Adapted for future motorization

Four Wheel M/D

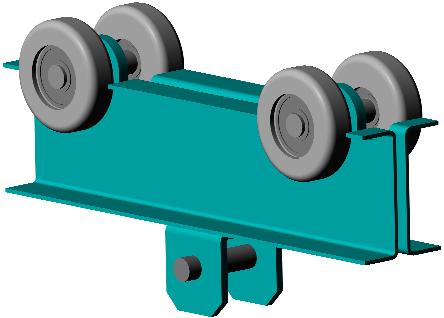

Regular

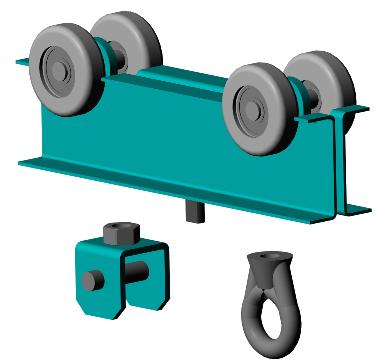

Changeable

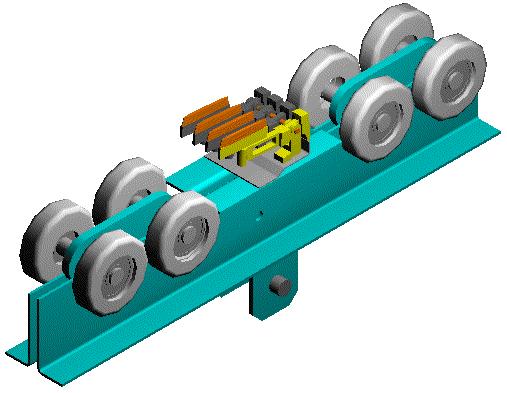

Eight Wheel H/D

Optional Electric Collector

Eight wheel pivot to allow all the whels to remain on the Trac at all times

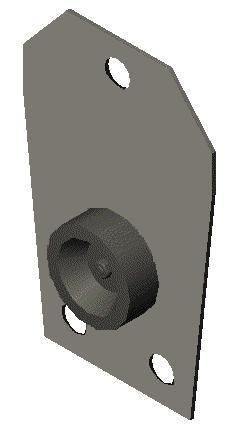

End:  Solid steel end plate with a rubber stopper

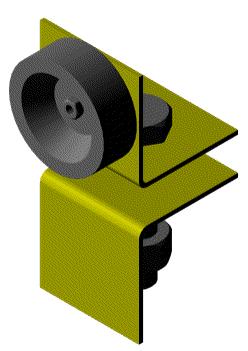

In a Run:  Can be installed anywhere along the rail section

Stops
