K   I   T     C   O   M   P   O   N   E   N   T   S

Hangers

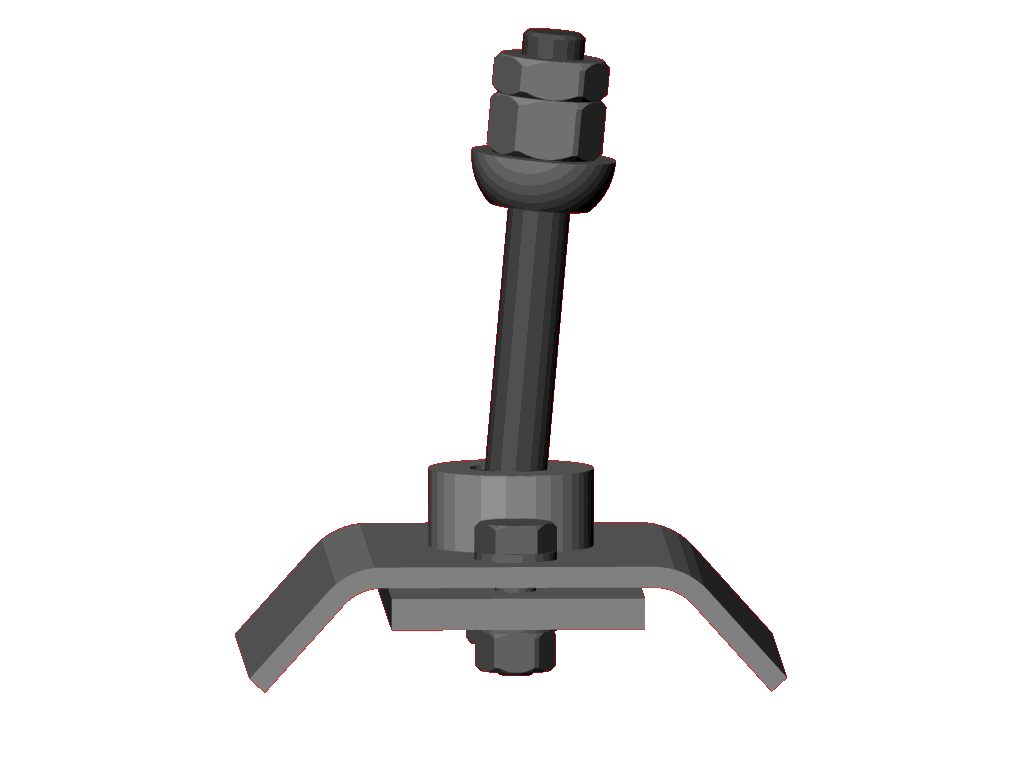

Pendulation Hangers

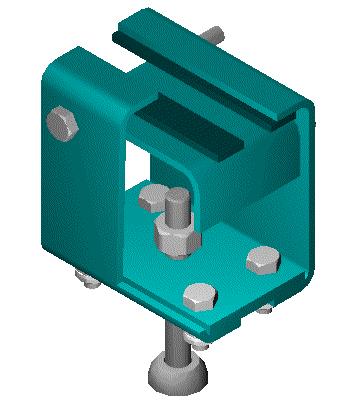

Beam Hangers

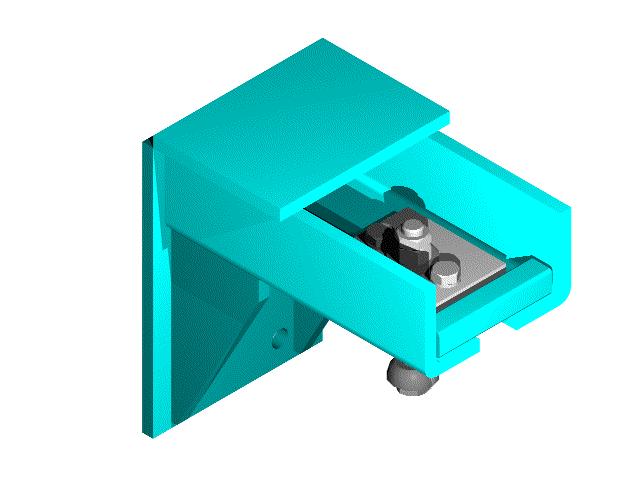

Column Hangers

At the center of it all

UP

DOWN

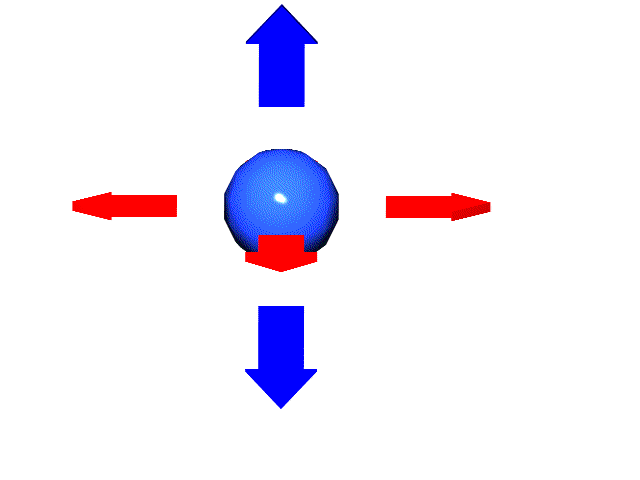

MOVES IN ALL DIRECTIONS

FOR EASY ADJUSTMENT

<-----          -----> *  Seismic-friendly       *  Balanced loading      *  Pre-assembled         *  Simple design          *  Adjustable                  *  Forgiving                   *  Fast one bolt system

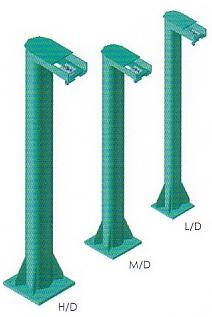

Posts

*   Robust design stands up to typical      shop floor fork lift problems *   Three different posts from which to choose *   Free-standing post (no braces required)

Floor Plate makes installation easy.

<----   ---->     Adjustment

Built to your required height

<--- Adjustable hanger

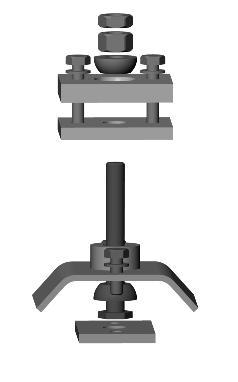

-------------Lock nut -------------Adjustment nut -------------1/2 Ball -------------Socket        ------Lock plate         ------Lock plate ------------Socket ------------1/2 Ball
