Reed Valve Assembly

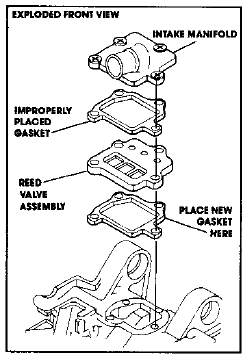

Yamaha issued a technical bulletin regarding installation of the reed valve assembly on the CV80L. The company's service manuals had incorrectly illustrated the procedure for installing the valve and gasket, which prompted the bulletin. In my experience, the problem pertains to the CV80J as well. Here's the correct order:
Maintenance Intervals
The following charts should be regarded only as a guide to general maintenance. Weather, geographical location, and usage patterns may affect the schedules indicated. For example, parts should be inspected, cleaned, and/or lubricated more frequently to avoid damage caused by moisture if the scooter is operated in an area with high humidity.
| Item |
Remarks |
Initial kms |
Every kms |
| 500 |
1,500 |
3,000 |
3,000 |
6,000 |
| Cylinder Head/Exhaust System |
Decarbonize |
|
• |
• |
• |
|
| Spark Plug |
Inspect, clean, or replace |
• |
• |
• |
• |
|
| Air Filter |
Washed and dampened w/ Yamalube two-cycle oil or SAE 20 motor oil |
Every 1,500 |
| Carburetor |
Check operations, fittings |
|
• |
• |
• |
|
| Clean, refit, adjust |
|
|
• |
|
• |
| Autolube pump |
Check, adjust, air bleed |
• |
• |
• |
• |
|
| Brake system (complete) |
Check, adjust/repair if required |
• |
• |
• |
• |
|
| Wheels and Tires |
Check pressure, wear, run out |
• |
• |
• |
• |
|
| Suspension system |
Check operation, repair if required |
• |
• |
• |
• |
|
| Battery |
Top up, check specific gravity and breather pipe |
• |
• |
• |
• |
|
| Lights/Signals |
Check operation, replace if required |
• |
• |
• |
• |
|
| Fittings/Fasteners |
Tighten if required, or ... |
• |
• |
• |
• |
|
| V-belt |
Inspect for cracks and wear |
Every 6,000 |
Lubrication Intervals
| Item |
Remarks |
Type |
Initial kms |
Every kms |
| 500 |
1,500 |
3,000 |
3,000 |
6,000 |
| Transmission Oil |
Warm engine before draining |
Yamalube four-cycle oil or SAE 10W30 motor oil |
• |
|
• |
• |
|
| Control and Meter Cables |
Apply thoroughly |
SAE 10W30 motor oil |
• |
|
• |
• |
|
| Throttle Grip and Housing |
Apply lightly |
Lithium soap base grease |
|
|
• |
• |
|
| Brake Lever |
Apply lightly |
Lithium soap base grease |
|
• |
• |
• |
|
| Brake Cam Shaft |
Apply lightly |
Lithium soap base grease |
|
• |
• |
• |
|
| Steering Bearings |
Inspect thoroughly, pack moderately |
Medium-weight wheel bearing grease |
|
• |
• |
• |
|
| Speedometer Gear Housing |
Inspect thoroughly, pack moderately |
Lithium soap base grease |
|
|
|
|
12,000 |
| Wheel Bearings |
Do not overpack yearly, or... |
Medium-weight wheel bearing grease |
|
|
|
|
12,000 |
