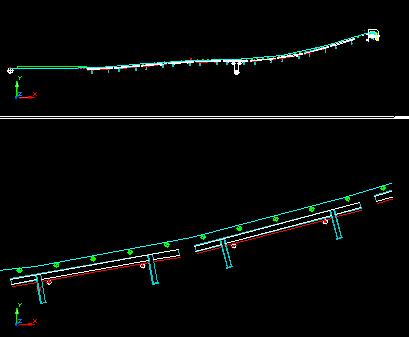

A
complete lateral view of the conveyor. The load section at the left.
A close-upp to stringers, rollers and the
perfil belt in an intermediate section.
The
gear reducer with its two couplings in a view from the top.
In
this lateral view of the unload section it is posible to see the shute
box and the material falling (also have drawn automatically).
A
frontal view of the belt at the unload section. From left to right: shute
box, axle, coupling, reducer and the motor-coupling.
A
3D view of the unload section
