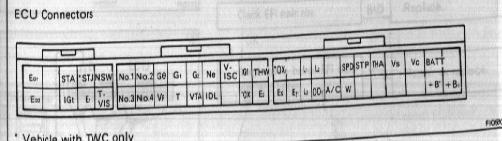

10 pin connector
E01          ENGINE GRND
E02         ENG GRD
STA       STARTER SWITCH
IGt         Igniter
STJ         Cold Start Injector
E1         Eng Grd
NSW        Neutral Start Switch
T-vis        T-vis vsv

Second group

No.1     Injector
No.2     Injector
No.3    Injector
No.4     Injector
G-        Engine Rev Sensor
Vf        Check Connector
G1        Engine Revolution Sensor
T        Check Connector
G2         Engine Revolution Sensor
VTA    Throttle Positoion Sensor
Ne        Engine Rev Sensor
IDL        Throttle Position  Sensor
V-isc    ISC VSV
IGF        Igniter
Ox        Oxy Sensor
THW        Water Temp Sensor
E2        Sensor Ground

Third Group
Ox1        Oxygen sensor
E22 Sensor Ground
E11 Engine Ground
L1        ECU ECT
L3        ECU ECT
L2        ECU ECT
OD1    ECU ECT
A/C    a/c Magnet Switch
SPD    Speed Sensor
W        Warning Light
STP      Stop light
THA        Air Flow Meter
Vs        AFM
Vc        AFM
Batt        Battery
+B        Main Relay
+B1        Main Relay
