The AMG V6 Kompressor engine: A technical masterpiece |
Photo copyright: DaimlerChrysler Additional preparation for the web by MBEP webmaster |
The Mercedes AMG V6 Kompressor offers very clear dynamic advantages over the familiar 3.2-litre naturally aspirated engine of the SLK 320. The use of a supercharger means that the engine output could be increased by 100 kW/136 hp and the maximum torque by 140 Newton metres. The Affalterbach engineers were particularly keen to give the vehicle a dynamic torque characteristic, as a consequence of which the roadster develops its power at low revs, whilst also being able to move smoothly in higher gears. At 2300 rpm the engine is already able to use 400 of its 450 Newton metres. This power is passed to the rear wheels via a very sportily tuned five-speed automatic gearbox. As an alternative, the gear ratios can be changed by hand using the one-touch shift (+/-). |
No less innovative is the charge air cooling system used by AMG, which features a very efficient air-water-heat exchanger system. The biggest advantage here is the compensating ability of the system to counteract temperature peaks. As a consequence, unlike conventional air-to-air systems in which, under certain thermic load conditions, the ignition angle and hence the output usually have to be corrected downwards, in the SLK 32 AMG the full spectrum of the vehicle's performance can be used at all times. |
Technological refinement also marks the engine
acoustics. With the exception of the intake manifold, the whole exhaust
system, including the oval, chrome-plated twin tailpipe, has been completely
redesigned. And you can hear it; for the sound produced has a very special
resonance that manages to avoid being irritating.
|
The suspension: Active safety at the highest level |
Photo copyright: DaimlerChrysler Additional preparation for the web by MBEP webmaster |
Due to the vehicle's high performance, the SLK suspension
has been especially adjusted for the AMG version, whose top speed is electronically
regulated to 250 km/h. In addition to a new spring/damper configuration,
the wider rear track width and a larger dimension torsion bar on the front
axle, the good deceleration figure for the brakes (approx. 10.5 m/s2) is
a particular highlight. The braking system features internally ventilated
disc brakes all round (diameter at the front 334 mm, at the rear 300 mm),
ABS, Brake Assist (BAS), ESP and an integrated ASR system. The sterling
silver-coloured 17-inch AMG light-alloy wheels with their twin-spoke design
are a completely new development. Not only do these look good, fitted as
they are with size 225 tyres on the front and 245 on the rear, they also
offer optimum cooling for the high-performance disc brakes.
|
The AMG styling package: Rear axle lift reduced by 50% |
Photo copyright: DaimlerChrysler Additional preparation for the web by MBEP webmaster |
As is normally the case with vehicles in the Mercedes AMG range, the bodywork design of the SLK has been given its own, very individual design. The front and rear aprons, side skirts and an elegantly integrated airflow breakaway edge on the boot lid, which reduces the lift on the rear axle by more than 50 per cent, give the SLK 32 AMG its own characteristic appearance. |

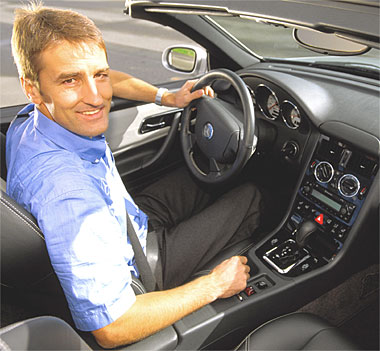

The AMG styling elements are continued in the interior. Sports seats with integrated head restraints, designed especially for the roadster, ensure perfect lateral support, whilst the well-balanced ergonomics of the seats guarantee comfort on long journeys. Both seats and door panels are trimmed with two-tone leather as standard, the same material that is to be found on the AMG steering wheel and gear knob. Similarly attractive is the trim on the centre console in high-quality, dark bird's-eye maple. The individually designed instrument faces, including a speedometer that shows speeds of up to 300 km/h - in the case of the SLK 32 AMG in silver - are also typical of Mercedes AMG; for the first time the speed is shown in steps of 30 km/h. |
From 2001 onwards, there are plans to build around 2000 SLK 32 AMG per annum. Approximately half of the production is destined for the USA, where the Mercedes Sport division has enjoyed enduring success for quite some time now. The other units will be distributed primarily in Germany, Italy, Switzerland, Great Britain and Japan. |
End of DaimlerChrysler press text, November 14th 2000 |
Technical Data SLK 32 AMG Baureihe R170 |
Engine | . | . |
No./arrangement of cylinders | . | 6/V, 3 valves per cylinder |
Displacement | cm3 | 3199 |
Bore x stroke | mm | 89.9 x 84.0 |
Rated output | kW/hp | 260/354 at 6100 rpm |
Rated torque | Nm | 450 at 4400 rpm |
Compression ratio | . | 9.0:1 |
Mixture formation | . | Microprocessor-controlled petrol injection, supercharger |
Transmission | . | . |
Gearbox | . | 5-speed automatic |
Ratios | Axle | 3.07 |
. | 1st gear | 3.59 |
. | 2nd gear | 2.19 |
. | 3rd gear | 1.41 |
. | 4th gear | 1.00 |
. | 5th gear | 0.83 |
. | Reverse | 3.16 |
Suspension | . | . |
Front axle | . | Double wishbone, anti-dive control, coil springs, gas pressure shock absorbers, torsion bar stabiliser. |
Rear axle | . | Independent multi-link; anti-squat and anti-dive control, coil springs, gas pressure shock absorbers, torsion bar stabiliser. |
Brakes | . | Hydraulic dual circuit brakes with brake booster, stepped master brake cylinder, disc brakes all round internally ventilated, rear drum parking brake, ABS, Brake Assist (BAS), ESP with integrated ASR. |
Steering | . | Recirculating ball power steering, steering shock absorber |
Wheels | front | 7.5 x 17 ET 37 |
. | rear | 8.5 x 17 ET 30 |
Tyres | front | 225/45 ZR 17 |
. | rear | 245/40 ZR 17 |
Dimensions and weights | . | . |
Wheelbase | mm | 2400 |
Track width front/rear | mm | 1488/1477 |
Length | mm | 4010 |
Width | mm | 1712 |
Height | mm | 1269* |
Turning circle | m | 10.58 |
Max. boot capacity** | litres | 145 - 348 |
cu ft | 5.12 - 12.29 | |
Unladen weight (EU) | kg | 1495 |
Payload | kg | 260 |
Permissible gross vehicle weight | kg | 1755 |
Fuel tank capacity/ incl. reserve | litres | 60/8 |
. | gallons (US) | 15.9/2.1 |
. | gallons (UK) | 13.2/1.7 |
Performance and fuel consumption | . | . |
Acceleration 0-100 km/h (0-62mph) | secs. | 5.2 |
Acceleration 0-200 km/h (0-124mph) | secs. | 18.4* |
Acceleration 0-1000 m (0-0.62138 miles; 0-1093.637 yards) | secs. | 24.2* |
Top speed | km/h | 250 |
. | miles | 155 |
Fuel consumption NEDC total | litres/100km | 11.2 |
. | mpg (US) | 21.0 |
. | mpg (UK) | 25.2 |
Emissions class | . | EU 4 |
*provisional figures **according
to VDA measuring method
All technical data DaimlerChysler Germany; US and UK conversions by MBEP webmaster |
