1970-1971 Z-50AK2 Mini Trail

The Z50AK2 Mini Trail was released in July of 1970 so there are  K1 and K2 models sold in 1970.  The K2 shares the same basic frame as the K0 & K1 models, but it has provisions for a rear foot brake and no battery box.  The K2 also has larger, oval shaped fuel tank badges, longer front and rear fenders, metal hand brake controls and  a taller tail light braket.  The K2 model still has a liscense plate bracket, brake light, and hi-low beam headlight so it can be liscensed for street use.  The K2 model is the last Mini Trail to use a key switch.  The Z50AK2 goes back to white as contrast color and the white stripe is at the bottom of the fuel tank.

	This beautifull Candy Ruby Red example is a near perfect, 0 mile bike.  I took the picture from an online auction.
	A Yellow K2 strikes a similar pose. Note that it is missing the muffler guard.

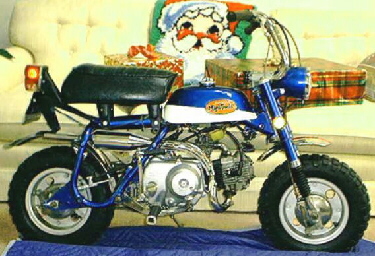

	This Blue K2 would have made a fine Christmas Present for me. This one is also missing the muffler guard. Damn that Grinch!

---

1970/1971 Z50AK2 Mini Trail Specs

Sell Date: 1970-1971

Rel Date: 07/01/70

Product Code: 045

Serial Numbers

Frame: Z50A-270236~

Engine: Z50AE-270236~

Color

Candy Ruby Red / White

Candy Saphire Blue / White

Mexican Yellow / White

New for this Model

Foot control added to rear brake

Longer front and rear fender

Lower exhaust guard is perforated

Taller liscense plate and Tail light bracket

Brake levers are metal

Oval fuel tank badges

New color scheme

Running Changes

Unique to this model

Round Tank Badges

Foot Brake Lever

Longer Fenders

Taller Tail light bracket

Last model without rear suspension

Last liscensable model

---
