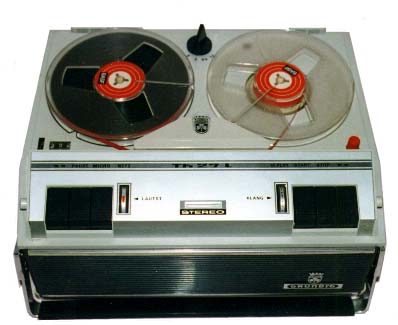

Grundig TK27L Tape Recorder

• Produced: Germany circa 1962.
• Obtained: bought at a flea market for 250FF (~$50) in 1996.
• Features:
  • Portable stereo tape recorder.
  • 1 speaker.
  • records in stereo, plays in mono on the built-in speaker and stereo on line-out.
  • four tracks 1/4" tape rolling at 9.5 cm/s only.
  • 2 mic inputs, 1 speaker output, 2 line I/O on DIN sockets.
• Condition:
  • Good shape.
  • Does not erase the right channel track, but works in mono.
• Tubes:
  • EF86/6267 (Left mic/head AF preamp)
  • EF86/6267 (Right mic/head AF preamp)
  • ECC81/12AT7 (Left AF)
  • ECC81/12AT7 (Right AF)
  • EL95/6DL5 (AF output/Erase OSC)
  • EM84/6FG6 (record level indicator)
• Semiconductors:
  • E150C30 (B+ rectifier)
