1983 Ford Mustang GT

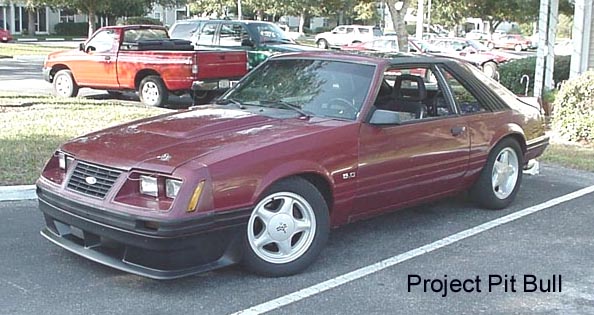

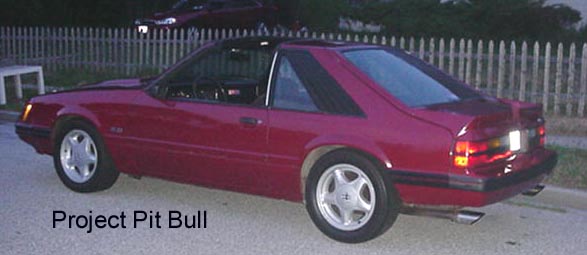

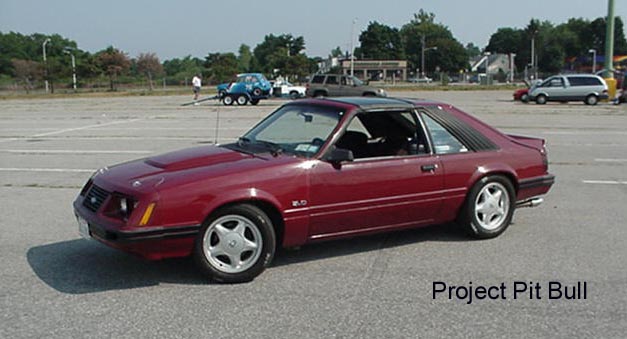

"Project Pit Bull"



This car was the most fun I have had in a long time.



pitbull03.JPG (17421 bytes) pitbull01.jpg (42751 bytes) pitbull08.JPG (26115 bytes) pitbull02.JPG (40771 bytes)
pitbull04.JPG (54682 bytes) pitbull06.JPG (56182 bytes) pitbull05.JPG (43764 bytes) pitbull07.JPG (61938 bytes)



List of Modifications

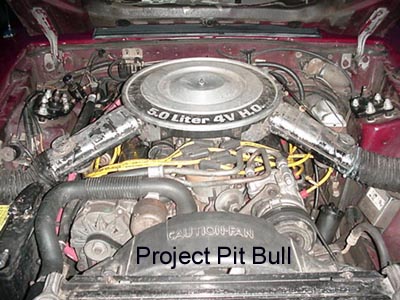

Engine Block / Heads Drivetrain  Suspension / Chassis
Block:
1989 H.O. SEFI Short block
FMS: B303 cam,  multi index timing chain
Accel: 8.8mm ignition wires

Heads:
Ford: 1993 E7 heads ported and gasket matched
FMS: Chrome valve covers, 1.7 Roller Rocker arms, GT40 Valves
Isky: Valve springs




Centerforce: Dual friction clutch & pressure plate set
Centerforce: Billet steel flywheel
Pro 5.0: Power tower T-5 shifter
FMS: 8.8 Rear axle assembly, 3.55 Ratio rear axle gears, Aluminum Driveshaft
Redline: Synthetic transmission fluid MTL








FMS: Transmission X-member, Driveshaft safety loop, 15.1 Quick ratio steering rack
Eibach: Front springs
Unknown mfg: Rear springs, updated tie rod ends and ball joints
Koni: "Orange" adgustable struts and shocks
Energy Suspension:  Polyurethane chassis bushings
Slot Car Mustangs: Subframe connectors, rocker panel braces, rear axle anti-squat brackets
PPI: Police seat/floor reinforcements
Unknown mfg: Camber/caster plates

Induction

Exhaust

Brakes
Ford: Cold air police/H.O. Dual snorkel housing
K&N: High flow air filter
Weiend: Stealth intake manifold
Holley: 600cfm vacuum secondaries or 650 DP
Borla: Stainless steel Exhaust
Mac: stainless catalytic H-pipe, stainless shorty headers


Kenny Brown: Club sport brake system, stainless steel brake lines
FMS: Adjustable brake bias valve


Body

Interior


Ford: 1993 "Pony" 5-star 16 inch wheels
Pirelli: 235/50/ZR16 tires
Kamei: Front air dam / splitter
Unknown mfg: Hood pins
Recaro: Sport seats sourced from a 1979 Mustang Pace Car
Autometer: Tach, water temp, volts and oil pressure gauges
B&M: Shifter boot


AND MORE
