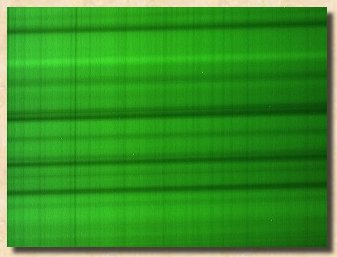

| Solar spectra captured with an SC1 modified QCPro3000 camera. The image covers the 5270-5481Å region and is a composite of 10 x .5 sec exposures; dark subtracted, gamma corrected and slight sharpening performed with Paintshop Pro. Grayscale conversion and a medium strength unsharp masking applied. |
| Entrance slit: .0012"(30 microns) width Camera lens:112mm focal length 17mm diameter Collimator:135mm focal length 35mm diameter |
 5270Å to 5481Å |

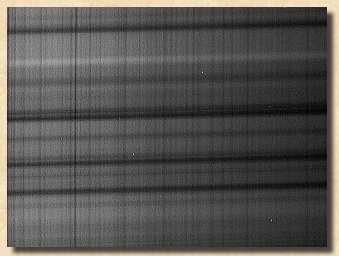

 Unsharp Mask 5270Å to 5481Å |
|---|

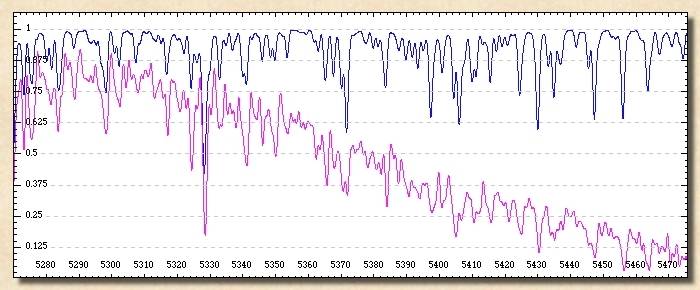

 5270Å to 5481Å Top trace generated by R.O.Gray's SPECTRUM program. Gaussian smoothed to a resolution of 1.0Å |
|---|
Download VisualSpec profile
|
|
