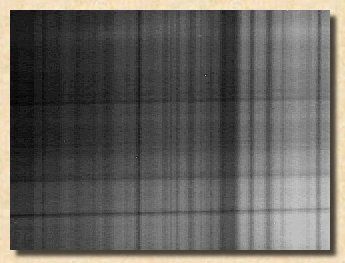

| Solar spectra captured with an SC1 modified QCPro3000 camera. The image covering 4120-4390Å; encompassing the G-band region; is a composite of 16 x .7 sec exposures; dark subtracted, gamma corrected and slight sharpening performed with Paintshop Pro. Grayscale conversion and a medium strength unsharp masking applied. |
| Entrance slit: .0012"(30 microns) width Camera lens:112mm focal length 17mm diameter Collimator:135mm focal length 35mm diameter |
 4120Å to 4390Å |
 Unsharp Mask 4120Å to 4390Å |
|---|

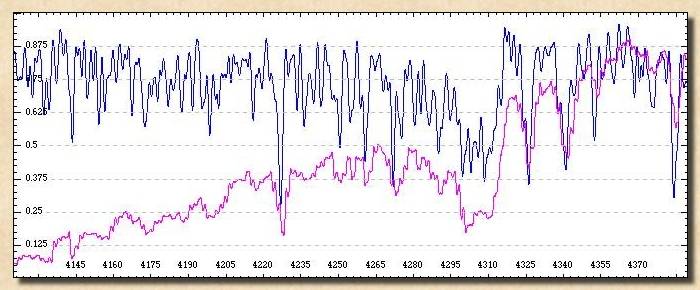

 4120Å to 4390Å Top trace generated by R.O.Gray's SPECTRUM program. Gaussian smoothed to a resolution of 1.1Å |
|---|
Download VisualSpec profile
|
