Project Management Plan

The Office of Success Program for Academic Careers in Minority Engineering and Computer Science Program (MECSP), established in 1986,at UCF provides support services designed to prepare, recruit and retain ethnic minority engineering students. The program offers Academic, personal and Professional development before, during and after their time at UCF. In conjunction with a variety of governmental agencies, industries and school systems; the SPACE/MECSP office develop and implement pre-college programs to assist ethnic minority elementary, middle and high school students to become academically prepared and aware of career opportunities in engineering, science and other math based fields by Assisting in the planning, organizing, and implementing of activities for the Southeastern Consortium for Minorities in Engineering (SECME) and the Florida Georgia Alliance for Minority Participation
Providing Summer Internship opportunities for Teacher and Student Development Offering Summer Residential Programs for middle and high school students. The main task of your project is to provide a user-friendly and flexible online information system to help schools to register for the Saturday workshops and annual competition organized by MESCP. It will also allow the MESCP Organizers to view the updated data.

Reference Documents

Concept of Operations

Applicable Standards

Coding Standard http://java.sun.com/docs/codeconv/html/CodeConvTOC.doc.html
Document Standard Dr.Walton’s Templates
Artifact Size Metric Standard http://www.oocities.org/secmep/pages/artifact.html

Project Team Organization

Our team consists of four persons, viz., Carthik A.Sharma, Juan Carlos Vivanco, Majid Ali Khan and Santhosh Kumar J.Grandai. Carthik A.Sharma has taken the responsibility to be the team leader. The other three persons in the group will work as team members. The team will work in a democratic manner where every team member will present his ideas for discussion. However, once a decision has been made, the team leader has the responsibility to assign tasks to individual team members. All members in the team will be responsible for updating the group website while team leader will have the additional responsibility for managing overall hierarchy of the website, and hence will be webmaster of the project development web page. We decided not to have separate managers for each artifact or functional chunks. Although the team leader might assign preparation of some of the artifacts to a particular team member, each team member will review it, before it being finalized. This review process will also cover the testing part of the artifact.

Communication will be handled by scheduled face-to-face meetings, and emails regarding the meetings and particular duties/responsibilities. We believe that online meetings are not as efficient and productive as face-to-face meetings.

Deliverables

Artifact	Due Dates
Meeting Minutes	10/01/02
Individual Logs	10/01/02
Group Project Management Reports	10/01/02
ConOps	10/01/02
Project Plan	10/01/02
SRS	10/01/02
High-Level Design	10/22/02
Detailed Design	10/22/02
Test Plan	10/22/02
User's Manual	11/19/02
Final Test Results	11/19/02
Source, Executable, Build Instructions	11/19/02
Project Legacy	11/19/02

Software Life Cycle Process

We will use Object Oriented Software development process as we are going to use the object-oriented paradigm. It includes a Fountain Software Model and tools like UML to model use cases, class diagrams etc. The process will have following phases:

- Requirements Phase

- Object Oriented Analysis Phase

- Object Oriented Design Phase

- Implementation Phase

- Implementation and Integration Phase

- Maintenance

We will use this process because it supports incremental development and also allows overlap between different activities. In order to avoid CABTAB (Code a Bit Test a Bit), we will cover each phase in detail before moving on to the next phase. We will go back to a previous phase only to enhance or modify some of the existing functionality.

FIG 1. FOUNTAIN MODEL

The figure.1 shows he fountain model. You can see the circles representing the various phases overlap, explicitly reflecting an overlap between activities. The arrows within a phase represent iteration within that phase. The maintenance circle is smaller, to symbolize reduced maintenance effort when object-oriented paradigm is used. So fountain model’s strength is it supports iteration within phases and parallelism between phases.

Tools and Computing Environment

Our project involves working in the creation of the database to store the information filled online through a formatted web page and to view the filled information in the format required by the organizer of MESCP. For this process we have planned to use MSAccess as a backend database to store information. We will use Java Server Pages (JSP) and Java Beans for the creation of dynamic WebPages. This will require a Java Development Kit (JDK). We will use JBuilder 4 as development environment. We will use Tomcat 4.0 as our web server.

Configuration Management

We will use Microsoft Visual Source Safe for version control of all the artifacts and source code. The team leader (webmaster) will have the responsibility to upload the latest artifacts to the website.

Quality Assurance

QA activities will occur during each phase. Each team member will be taking part in QA activity via the review process. We will have a thorough product testing after completion of our product. Each team member will take part in this procedure by reviewing other member's source code and executing test cases. All the results obtained from the QA activity will be documented for future reference. The results of the tests will be maintained in the form of an individual error log, which will be available online for the reference of the other team members. During the team meetings, the problems will be open for analysis and solving.

During the integration and implementation phase the client will be involved in extensively testing the user interface, until such time as the requirements for ease of use and access are met. All modifications that need to be made to the interface will have to be made before delivery. After delivery, the client (MECSP) will perform acceptance testing.

Risk Management

The first main potential risk of the project in the beginning stage is not extracting what the client really needs. Having 2 or 3 group meetings with the client and changing the requirements until the client is satisfied with it 100% and approves it manages this potential risk.

Another potential risk is the possibility of the system crashing at a critical time. The only way to manage this risk is to do the registration through fax or phone, as an alternative in times of network access problems. The MECSP Organizers should extract and store the up to date information offline to avoid problems arising from server/network unavailability.

A potential risk is the unwillingness of the users (school coordinators) to learn to use the new system. This will have to be addressed by the client, through proper support and dissemination of information regarding the new system.

Table of Work Packages, Time Estimates, and Assignments

The project consists of the following steps:

Analysis:

1. Elaborate the use cases¹.

Design:

2. Architectural Design

a. Design the ER (Entity Relationship) model (Logical) (10 man hours)

b. Construct high-level class diagrams. (30 man hours)

3. Detailed Design

a. Design Graphical User Interface (GUI) (40 man hours)

b. Design ER Model (Physical) (75 man hours)

c. Design detailed class diagrams (Physical) (see use cases)

4. Implementation and Integration

a. Implement functionality of particular use cases. (30 man hours)

b. Integrate and test all the modules. (30 man hours)

                 ¹ The below are the use cases for,

                                I.     The school coordinator

                                                a.     Registering for annual competition. (3 man hours)

                                                b.     Registering for workshops. (3 man hours)

                                                c.     Modifying registration information with respect to:

                                                                   1.  workshop. (3 man hours)

                                                                    2. competition. (3 man hours)

                                                d.     Viewing  registration information with respect to :

                                                                    1. workshop. (3 man hours)

                                                                    2. competition. (3 man hours)

                                                e.     Sending inquiry to organizer. (3 man hours)

                              II.     Signing in

a.                Organizer. (3 man hours)

b.               Coordinator. (3 man hours)

                            III.      MECSP user

a.                Define annual competition. (3 man hours)

b.               Define workshop. (3 man hours)

c.                View registered schools’ information. (5 man hours)

d.               View summary by Math level. (5 man hours)

e.                Whole summary by 1competition. (5 man hours)

f.                 Summary by School type. (5 man hours)

g.               Notify school coordinators about changes/developments in events.

                    The responsibilities are divided among the team members as follows:

                                                       Carthik – Use Cases I.d, III.c, III.d, III.e, III.f; Step 4

                                                       Juan – Use Cases III.a, III.b, III.g

                                                       Majid – Use Cases II, I.e; Steps 2.a, 4

                                                       Santhosh – Use Cases I.a, I.b, I.c, Step 2.a

PERT Chart

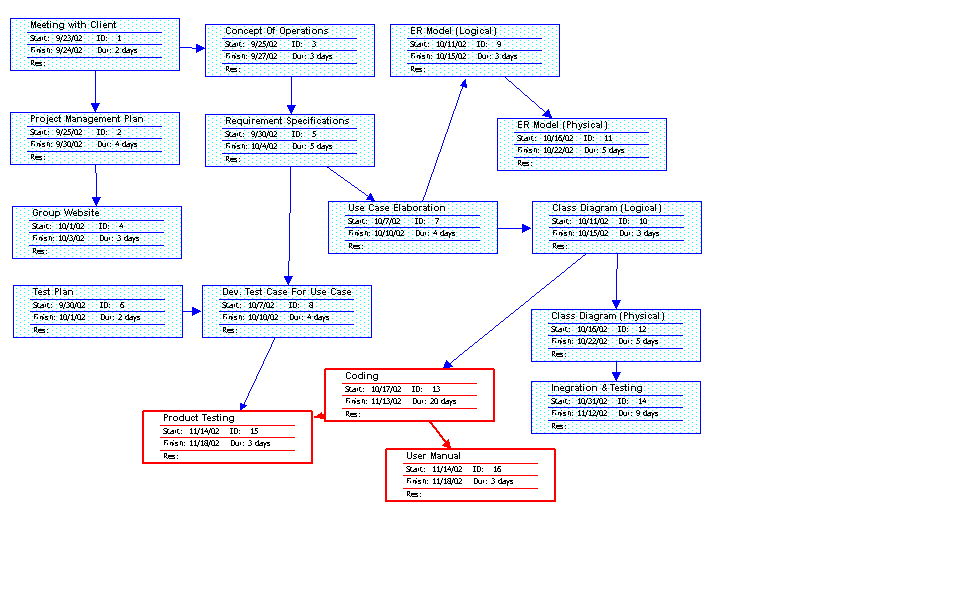

The PERT CHART is shown below.The critical path is shown by red arrows.

Technical Progress Metrics

Requirements phase :

- The total number of requirements is 16.

- Number of Requirements changes is 4.

OO analysis and design :

- Number of Use cases completed.

Detailed Design :

- Number of classes.

- Number of methods.

Plan for tracking, control, and reporting of progress

At a minimum, each team member will post the following information weekly: individual time and activity log, individual status information, individual issues and problems, and individual defect log.

Each week, the project manager will: read and analyze the logs; examine the technical content of the work done to date; examine the technical progress metrics; consider the QA results; reassess the potential project risks; and take corrective action if necessary.

The project manager will issue a Project Management Report on the schedule as indicated in the deliverables section above. At a minimum, the Project Management Report will be generated every two weeks and will include the following information: 1 sentence description of overall status, 1 or 2 sentence of any planned changes to the project plan, graph of planned vs actual time, updated PERT chart.
